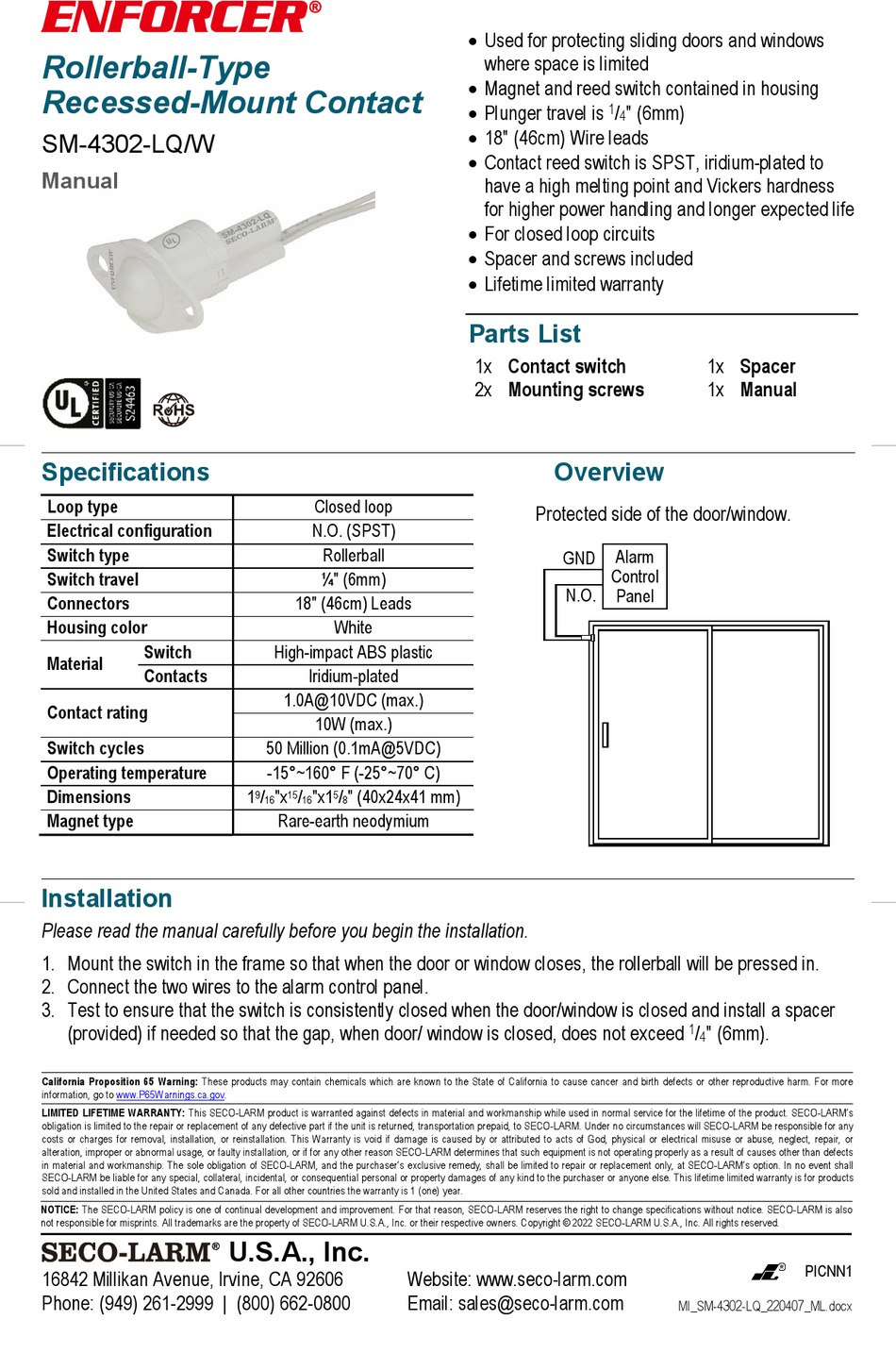

ENFORCER SM-4302-LQ/W Manual

Rollerball-Type
Recessed-Mount Contact
SM-4302-LQ/W
Manual
Specifications
Loop type
Electrical configuration
Switch type
Switch travel
Connectors
Housing color
Switch
Material
Contacts
Contact rating
Switch cycles
Operating temperature
Dimensions
Magnet type
Installation
Please read the manual carefully before you begin the installation.
1. Mount the switch in the frame so that when the door or window closes, the rollerball will be pressed in.
2. Connect the two wires to the alarm control panel.
3. Test to ensure that the switch is consistently closed when the door/window is closed and install a spacer
(provided) if needed so that the gap, when door/ window is closed, does not exceed
California Proposition 65 Warning: These products may contain chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov.
LIMITED LIFETIME WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for the lifetime of the product. SECO-LARM's
obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. Under no circumstances will SECO-LARM be responsible for any
costs or charges for removal, installation, or reinstallation. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair, or
alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects
in material and workmanship. The sole obligation of SECO-LARM, and the purchaser's exclusive remedy, shall be limited to repair or replacement only, at SECO-LARM's option. In no event shall
SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property damages of any kind to the purchaser or anyone else. This lifetime limited warranty is for products
sold and installed in the United States and Canada. For all other countries the warranty is 1 (one) year.
NOTICE: The SECO-LARM policy is one of continual development and improvement. For that reason, SECO-LARM reserves the right to change specifications without notice. SECO-LARM is also
not responsible for misprints. All trademarks are the property of SECO-LARM U.S.A., Inc. or their respective owners. Copyright © 2022 SECO-LARM U.S.A., Inc. All rights reserved.
16842 Millikan Avenue, Irvine, CA 92606
Phone: (949) 261-2999 | (800) 662-0800
Closed loop
N.O. (SPST)
Rollerball
¼" (6mm)
18" (46cm) Leads
White
High-impact ABS plastic
Iridium-plated
1.0A@10VDC (max.)
10W (max.)
50 Million (0.1mA@5VDC)
-15°~160° F (-25°~70° C)
1 / "x / "x1 / " (40x24x41 mm)
9 15 5
16 16 8
Rare-earth neodymium
U.S.A., Inc.
 Used for protecting sliding doors and windows
where space is limited
 Magnet and reed switch contained in housing
 Plunger travel is
 18" (46cm) Wire leads
 Contact reed switch is SPST, iridium-plated to
have a high melting point and Vickers hardness
for higher power handling and longer expected life
 For closed loop circuits
 Spacer and screws included
 Lifetime limited warranty
Parts List
1x Contact switch
2x Mounting screws
Overview
Protected side of the door/window.
GND
N.O.
Website: www.seco-larm.com
Email: sales@seco-larm.com
/ " (6mm)
1
4
1x Spacer
1x Manual
Alarm
Control
Panel
1 / " (6mm).
4
