Electromechanical Push Bars
Installation Manual
Model
SD-961A-36GQ
SD-961B-36GQ
SD-961D-36GQ
SD-961A-36GSQ
SD-961B-36GSQ
SD-961D-36GSQ
ENFORCER Electromechanical Push Bars feature a double-locking spindle for stronger and more
secure locking. All models include a cylinder lock for keyed entry and some models offer solenoid-
actuation to allow unlocking and relocking by an access control device.
• Double-locking spindle (stronger and more secure)
• Available in manual or solenoid-actuated versions
• Solenoid rated for both continuous and intermittent operation
• Aluminum alloy construction in a reversible, non-handed design
• Fail-Secure operation (but can be opened from inside by pressing the bar)
• Lock status monitoring for returning status to the access control system
• Mortise lock cylinder and keys included to release the lock from the outside
• Dogging latch on push bar to hold open
• Includes all needed hardware for typical installations

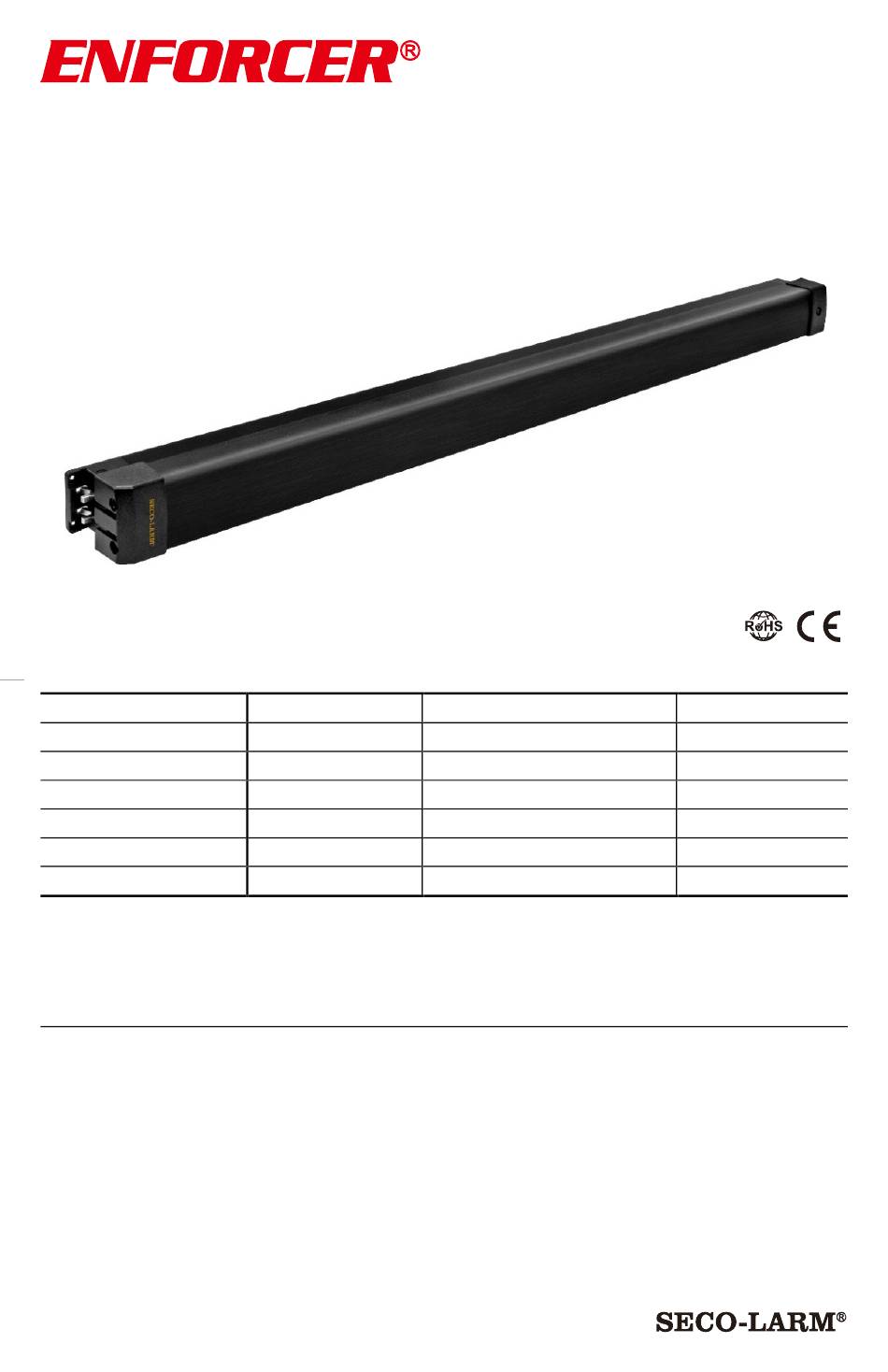

SD-961B-36GSQ shown
Solenoid
No
No
No
Yes
Yes
Yes
Operating voltage
N/A
N/A
N/A
12~24 VAC/VDC
12~24 VAC/VDC
12~24 VAC/VDC
Color
Silver
Black
Dark bronze
Silver
Black
Dark bronze
Advertisement
Related Manuals for ENFORCER SD-961A-36GQ
Summary of Contents for ENFORCER SD-961A-36GQ
- Page 1 12~24 VAC/VDC Dark bronze ENFORCER Electromechanical Push Bars feature a double-locking spindle for stronger and more secure locking. All models include a cylinder lock for keyed entry and some models offer solenoid- actuation to allow unlocking and relocking by an access control device.
- Page 2 1x Cylinder plate 1x Cylinder guard 3x Keys* No replacement keys available. Please keep a backup key in case of loss. Specifications Model SD-961A-36GQ SD-961B-36GQ SD-961D-36GQ SD-961A-36GSQ SD-961B-36GSQ SD-961D-36GSQ Operating 12~24 VAC/VDC voltage Current draw 1.5A@12VDC, 0.5A@12VDC after 3 seconds...
