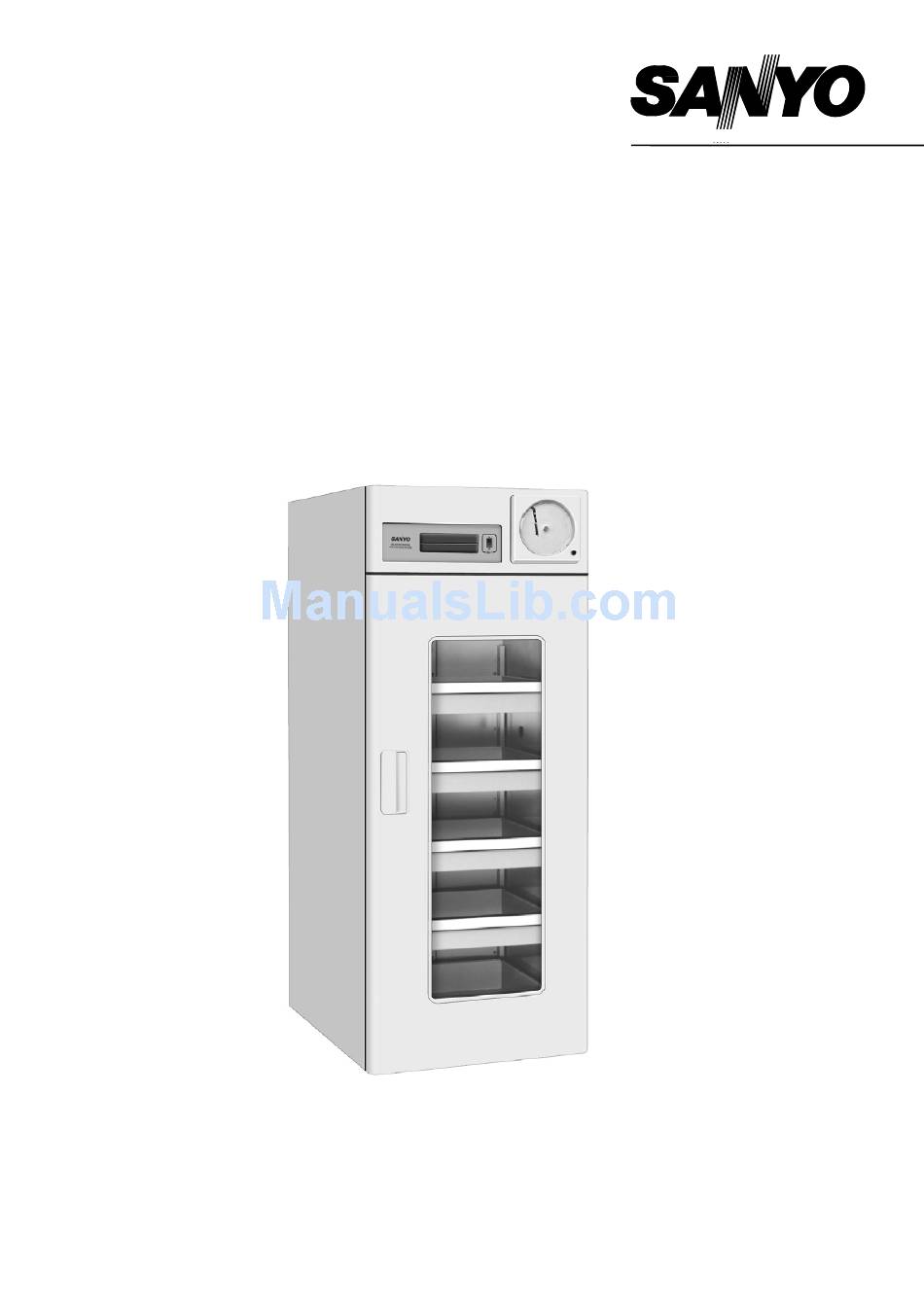

- Page 1 INSTRUCTION MANUAL MBR-704G MBR-704GR Blood Bank Refrigerator MBR-704GR...
-
Page 2: Table Of Contents
1. No part of this manual may be reproduced in any form without the expressed written permission of SANYO. 2. The contents of this manual are subject to change without notice. 3. Please contact SANYO if any point in this manual is unclear or if there are any inaccuracies. SANYO Electric Biomedical Co., Ltd. - Page 3 It is imperative that the user complies with this manual as it contains important safety advice. Items and procedures are described so that you can use this unit correctly and safely. If the precautions advised are followed, this will prevent possible injury to the user and any other person.
-
Page 4: Precautions For Safe Operation
PRECAUTIONS FOR SAFE OPERATION WARNING Do not use the unit outdoors. Current leakage or electric shock may result if the unit is exposed to rain water. Only qualified engineers or service personnel should install the unit. The installation by unqualified personnel may cause electric shock or fire. Install the unit on a sturdy floor. - Page 5 PRECAUTIONS FOR SAFE OPERATION WARNING Disconnect the power supply to the unit prior to any repair or maintenance of the unit in order to prevent electric shock or injury. Ensure you do not inhale or consume medication or aerosols from around the unit at the time of maintenance.
- Page 6 PRECAUTIONS FOR SAFE OPERATION CAUTION Fix the shelves securely. Incomplete installation may cause injury or damage. When removing the plug from the power supply outlet, grip the power supply plug, not the cord. Pulling the cord may result in electric shock or fire by short circuit. Never damage or break the power supply plug or cord.
-
Page 7: Cautions For Usage
CAUTIONS FOR USAGE 1. If the unit is unplugged or the power to the unit is interrupted, do not restart the unit for at least 5 minutes. This protects the compressor. 2. This inner cabinet is refrigerated by the forced circulation of cooled air inside the chamber. Ensure that the intake and exhaust vents are not blocked. -
Page 8: Refrigerator Components
REFRIGERATOR COMPONENTS MBR-704GR <Back side>... - Page 9 12. Drawer (MBR-704GR only): Items to be stored in the chamber must be placed on the drawers. The maximum storage weight for each drawer is 40 kg. Shelf (MBR-704G only): Items to be stored in the chamber must be placed on the shelves. The maximum storage weight for each shelf is 40 kg.
-
Page 10: Inside Of Front Cover
3. Battery switch: Switch for battery used for power failure alarm. Always keep "ON". Turn the switch "OFF" when the unit is in no use for a long period (more than 1 month). Inside components of MBR-704G type 1. Shelf: Items to be stored in the chamber must be placed on the shelves. - Page 11 REFRIGERATOR COMPONENTS Control panel and keypad 1. Buzzer stop key (BUZZER): To silence the audible alarm, press this key. 2. Temperature display key (UPPER/LOWER): By pressing this key, the displayed temperature is changed; upper monitor bottle temperature, lower monitor bottle temperature, and average temperature of upper and lower monitor bottles are displayed in sequence.
-
Page 12: Installation
INSTALLATION Installation site To operate this unit properly and to obtain maximum performance, install the unit in a location with the following conditions: 1. A location not subjected to direct sunlight Installation in a location subjected to direct sunlight may lead to inadequate cooling. 2. - Page 13 INSTALLATION Installation 1. Remove the packaging materials and tapes Remove all transportation packaging materials and tapes. Open the doors and ventilate the unit. If the outside panels are dirty, clean them with a neutral detergent and wipe off with a soft cloth washed in clean water.
- Page 14 INSTALLATION Preparation of monitor bottle Prior to the operation of the unit, fill the monitor bottles (upper and lower) with 10% glycerol (or other solution such as ethylene glycol) using the following procedure: 1. Remove the top and bottom drawer (or shelf). 2.
-
Page 15: Start-Up Of Unit
Items stored near the exhaust air vent can freeze. Load line In this refrigerator, storage space is limited to allow the passage of cool air around the chamber. The label “load line” is fixed to both sides of the chamber. -
Page 16: Operating Instructions
OPERATING INSTRUCTIONS Control panel Temperature display The unit is set at the factory to obtain the proper temperature automatically (4 The high temperature alarm is preset at 6 Table 1. Temperature display Operation Plug-in, Power ON UPPER Press key. LOWER UPPER Press key. - Page 17 1. Remove the monitor bottle cover as shown in the figure. 2. Remove the sensor to be calibrated from the monitor bottle. Please note that refrigerator also has a sensor for the temperature recorder in the left side of the upper monitor bottle.
-
Page 18: Alarms & Safety Functions
ALARMS & SAFETY FUNCTIONS This unit has the alarms and safety functions shown in Table 2, and also self diagnostic functions. Table 2 Alarms and safety functions Alarm & Safety Situation High temperature If the upper or lower temperature sensor senses a temperature ≧ 6 alarm Low temperature If the upper or lower temperature... -
Page 19: Routine Maintenance
ROUTINE MAINTENANCE WARNING Always disconnect the power supply to the unit prior to any repair or maintenance of the unit in order to prevent electric shock or injury. Ensure you do not inhale or consume medication or aerosols from around the unit at the time of maintenance. -
Page 20: Disposal Of Unit
ROUTINE MAINTENANCE Replacement of fluorescent lamp The fluorescent lamp is placed horizontally in the upper front of the chamber. Follow the procedure below to replace the lamp. 1. Turn off the fluorescent light switch and disconnect the power supply plug. 2. -
Page 21: Trouble Shooting
TROUBLE SHOOTING If the unit malfunctions, check out the following before calling for service. If nothing operates even when switched on 1. The power is failed. 2. The circuit breaker is inactivated. 3. The unit is not connected to the power supply. The alarm device is activated 1. -
Page 22: Specifications
300W Noise level Maximum pressure Note :The unit with CE mark complies with EC directives 89/336/EEC, 93/68/EEC and 73/23/EEC. Blood Bank Refrigerator MBR-704G W770 x D830 x H1955 (mm) W650 x D697 x H1500 (mm) 625 L Painted steel Painted steel... -
Page 23: Safety Check Sheet
Refrigerator Please decontaminate the unit yourself before calling the service engineer. CAUTION Safety check sheet □Yes □Yes □Yes □Yes □Yes □Yes □Yes □Yes Serial number : MBR-704G MBR-704GR □No □No □No □No □No □No □No □No □Yes □No □Yes □No... - Page 24 7FB6P101294003 (5 April 2005) Recycled paper SANYO Electric Biomedical Co., Ltd. 10-15, Hongo 3-Chome Bunkyoku, Tokyo 113-8434 Japan Printed in Japan...
