Azden SGM-250P Owner's Manual

REGISTER FOR YOUR 10
YEAR WARRANTY
Azden Two Year Limited Warranty
Azden Corporation warrants, to the first purchaser, that the Azden brand product
purchased is free from defects in material and workmanship. Azden's sole obligation
under this warranty shall be to provide, without charge, repair or replacement (at
Azden's sole discretion), within two years from the date of purchase. A dated receipt is
required to establish the date of purchase and no registration is necessary to receive
warranty service under this two year limited warranty. The cost to ship a failed product
to and from Azden or to its dealer shall not be covered by this warranty.
This warranty is the sole and exclusive express warranty given with respect to the
product and all other warranties, expressed or implied, are herby excluded. Neither
Azden, nor the dealer who sells this product, is responsible for indirect, incidental or
consequential damages.
This warranty does not extend to any defect, malfunction or failure caused by misuse,
abuse, accident, act of God, faulty hookup, unauthorized modification, connecting this
product to equipment for which this product is not intended or defective associated
equipment.
Customers in the Asia and Oceania markets contact:
Azden Corp., 1-12-17 Kamirenjaku Mitaka-shi, Tokyo, 181-8533 Japan
Tel: +81-422-55-5115 (Japan) • Fax: +81-422-55-0131 (Japan)
www.azden.co.jp • email: sales@azden.co.jp
Customers in the North/South America and European markets contact:
Azden Corp., 200 Valley Road, Suite 101, Mt. Arlington, NJ 07856
Tel: +1-973-810-3070 • Fax: +1-973-810-3076
www.azden.com • email: sales@azden.com
Do not attempt to open the casing or make any modification to the internal electrical
components. Electric shock or injury may result. Any unauthorized modification to this
product will void all applicable warranties.
Do not store or operate this product near a heat source or in an environment of extreme
temperatures. Avoid exposure to rain or any other source of moisture. Do not submerge
in water. If exterior is exposed to water, wipe dry before use.
Remove batteries before storing this microphone for an extended period of time. Old
alkaline batteries have the potential to leak and cause damage to the internal
components of the microphone. Additionally, battery acid can be harmful if contact is
made with the skin or eyes; if this happens, wash with water immediately. Use caution
when handling discharged batteries.
Please take the time to read this manual carefully and keep it for your reference.
Congratulations on your purchase of the
Azden SGM-250P Professional Shotgun
Microphone.
All Azden products come with a two (2)
year limited warranty. The warranty for the
SGM-250CX may be extended to ten (10)
years.
To obtain your 10 year warranty, please
register your microphone
www.azden.com/warranty* within 90 days
from the date of purchase.
*Azden's 10 year warranty is not available in all
countries and not all Azden products are eligible.
See www.azden.com for details
CAUTION
PRINTED IN JAPAN
online at
Product Highlights
• Newly developed electret condenser microphone element
delivers the best sensitivity and lowest noise in its class
• Powered by standard 48 V DC phantom power
• Custom designed acoustic tube with high precision phase
canceling slots produces a flat frequency response with
excellent directionality and wide dynamic range
• Switchable low-cut filter set at 160 Hz for better attenuation of
low frequency noise and 3 dB/octave for smoother roll off
• Brass/aluminum alloy case for improved durability and
resistance to ambient RF
• Gold plated, 3-pin XLR output connector for improved resistance
to aging

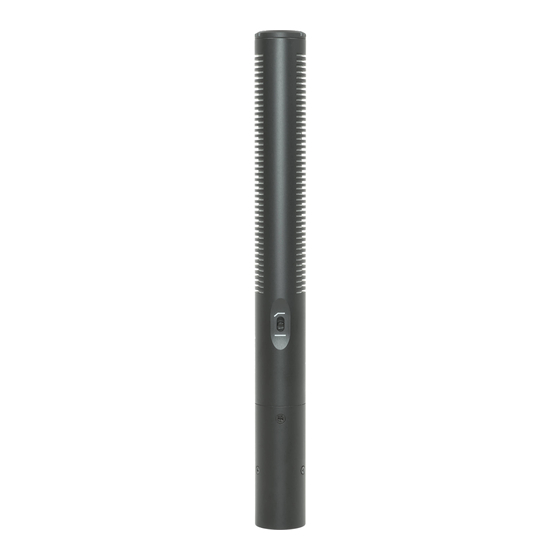

The Azden SGM-250P is a professional shotgun microphone designed
for broadcast, news gathering and film making applications. The
SGM-250P boasts all the same features and sound quality
performance as the SGM-250 model, except that the SGM-250P
operates on phantom power exclusively (no battery option).
Power
Phantom power is a DC voltage supplied through a balanced
microphone cable and used to power the electronics of the connected
microphone. Most professional cameras, mixers and audio interfaces
with microphone XLR pre amps have the ability to supply phantom
power. If the equipment you use does not, you will have to utilize a
separate external phantom power supply.
012-34537C01
Owner's Manual
English
