HD264/HD1014

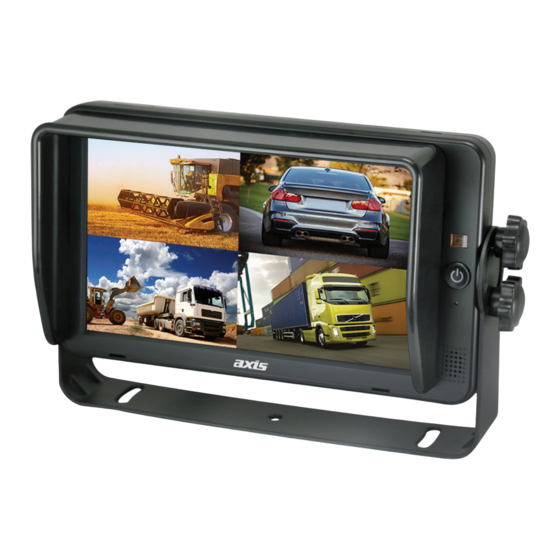

QUAD HD TOUCHSCREEN COLOUR MONITOR
SPECIFICATIONS
- TFT Panel:
- Touchscreen:
- LCD Size:
- Display Format:
- Resolution:
- Brightness:
- Views:
- Viewing Angles:
- Video System:
- Video Connections:
- Camera Display:
- Reverse Trigger:
- Monitor View:
- Guidelines:
- Audio:
- OSD Languages:
- Main Menu:
- Temp Resistance:
- Power Input:
- Dimensions:
INCLUDED
(Optional: Glass Mount Bracket - BKT102)
INSTRUCTION MANUAL
New Grade A LCD, LED Backlight
Yes, Capacitive Touch
7" (HD264), 10.1" (HD1014) Diagonal
16:9
1024 x 600
2
< 450 CD/M
(HD264), < 500 CD/M
1/2/3/4 Selectable
75 Deg. Left/Right/Up/Down
PAL/NTSC Select
4 x 4-Pin (Male) / VGA
Input Select and Reverse Trigger Override
5 Triggers
Normal/Mirror Image Select
Selectable & Adjustable
On Board Speaker
9
Brightness/Contrast/Colour/Volume/Reset/Autoscan/Language/Reverse Priority
+70°C
10-32V DC (Negative Ground)
HD264
203W x 112H x 28D mm (excluding bracket)
HD1014 267W x 159H x 30D mm (excluding bracket)
U-Bracket, Stand Mount, Power Cable Assembly, Sunshade
2
(HD1014)
1
Advertisement
Table of Contents
Related Manuals for Axis HD264
Summary of Contents for Axis HD264
- Page 1 QUAD HD TOUCHSCREEN COLOUR MONITOR SPECIFICATIONS - TFT Panel: New Grade A LCD, LED Backlight - Touchscreen: Yes, Capacitive Touch - LCD Size: 7” (HD264), 10.1” (HD1014) Diagonal - Display Format: 16:9 - Resolution: 1024 x 600 - Brightness: < 450 CD/M (HD264), <...
-
Page 2: Table Of Contents
Contents Precautions ........................Accessories ........................Connections ......................... Menu Operation ......................Desktop ......................Volume ....................... Mode ........................Source ........................ Setting ........................ -
Page 3: Precautions
1. Precautions Storage and Keeping 1. Do not expose the monitor to excessive heat or cold. Storage temperature is -30 ~ +70°C; Operating temperature is -20 ~ +70°C; Battery operating temperature is 0-70°C; Humidity is Rh90%. 2. Never use this device near a bathtub, wash basin, kitchen, damp basement, swimming pool or similar places. - Page 4 Maintenance 1. Remove all the cable connections from monitor before cleaning the device. 2. Use mild household detergent to clean the device with slightly damp, soft cloth. 3. Never use strong solvents such as thinner or benzine. Risk of electric shock Do not open Caution: to reduce the risk of electric shock, Do not remove cover (or back).
-
Page 5: Accessories
2. Accessories U-Support Bracket Centre Mount Bracket Sun Shield Power Cable Angle Adjustment Screws Special Notice! Accessory supply may differ from above. -
Page 6: Connections
3. Connections A: Camera 1 White 4 PIN Male : Red: VCC 10-32VDC B: Camera 2 Blue 4 PIN Male : Black: GND C: Camera 3 Green 4 PIN Male : White: Camera 1 Trigger D: Camera 4 Brown 4 PIN Male : Blue: Camera 2 Trigger E: Black 5 PIN Male : Green: Camera 3 Trigger... - Page 7 Basic functions of HD Quad-View Monitor Specifications • 7” or 10.1” HD quad-view monitor with LVDS interface, supports high resolution 1280*800. • Supports 4 x camera inputs in 720P/1080P and multiple TV system like PAL/NTSC/HD-AHD/HD-TVI/ HD-CVI, and 1080P video input. •...
-
Page 8: Menu Operation
Menu Operation Desktop... - Page 9 Desktop interface. When Home Menu does not pop up. Touch the White border to pop up Home Menu. When signal source is selected to be cameras, image display mode can be switched by sliding to left/ right on screen. in the order: LEFT->RIGHT->FRONT->BACK->DOUBLE->TRIPLE->TREFOIL-> Y-SPLIT->H SPLIT->QUAD->LEFT.
-
Page 10: Volume
Touch the camera channel under split screen mode to zoom into a single full screen and touch it again to get back to split screen. Home Menu Home Menu is shown. Touch the area out of the menu to get back to Desktop. Volume Directly drag the slider on the screen to adjust volume. -
Page 11: Mode
Mode Mode setting interface display mode selection The corresponding screen display modes can be switched by touching the icons on OSD. Source Source interface signal source selecting is shown. Operation is as Mode menu. Support automatic identification for signal output Supports standard definition (NTSC \ PAL) and high definition format like AHD, TVI and CVI;... -
Page 12: Setting
Setting Setting menu interface for other functions. Operation is as Mode menu. Camera Camera menu settings for Camera channel To set other channels, press Menu and move the cursor to the channel selection area. Press Up, Down, Left and Right to select the channel and press Sel to switch to the corresponding channel for attribute settings. - Page 13 Camera Name setting interface setting for each channel’s name, Camera name can be 8 characters max. Parking Line...
- Page 14 Parking Line setting interface setting for reverse grid. Touch CALIBRATE icon to set reverse cursor. Press SEL or touch TYPE1/TYPE2 on screen to switch reverse cursor mode and drag the cursor directly to adjust. Language Pic. 4.2.6.3 Language setting interface setting for system language. Trigger Pic.
- Page 15 Trigger Delay / Priority setting interface. Trigger Display setting interface setting for display mode of the fifth trigger. Trigger Display setting only acts on the fifth trigger wire. (split wire)
- Page 16 Auto Scan Pic. 4.2.6.5 Auto Scan setting interface. Delay range: 1~60s Power On Pic. 4.2.6.6 Power- On setting interface power-on screen display mode setting. Power On setting only acts when power-on signal source is Camera.
- Page 17 4.Standard Pic. 4.2.6.7-1 Standard setting interface. TV system setting in split-screen display mode.
