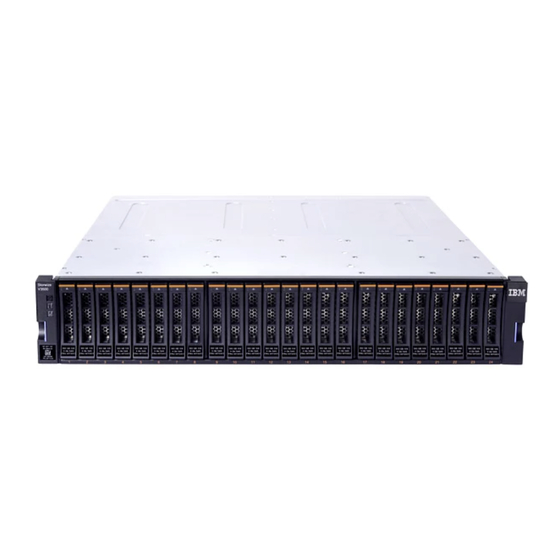

IBM Storwize V3500 Installation Poster

Before installing your Storwize V3500
components, read the
Notices in the publications package.
Included in this order
Install the enclosure in a rack
1 1
Detach the two springs taped to one of
a a
the rails and attach a spring to each rail.
© Copyright IBM Corporation 2012.
IBM®, the IBM logo, and ibm.com® are trademarks or registered trademarks of International Business Machines Corp., registered in many jurisdictions worldwide. Other product and service names might be trademarks of IBM or other companies.
A current list of IBM trademarks is available on the web at Copyright and trademark information at www.ibm.com/legal/copytrade.shtml.
Tool required
Systems Safety
With a firm grip, force open each bracket, then
b b
slide the rail until the bracket pins engage the rack.
The front of each rail is labeled, "Left Front" or "Right Front."
Rail handles go toward the rear.
d d 1. Grasp the handle at the bottom of each end cap and pull the
bottom of the end cap free, then remove the end cap.
2. Get help to lift and insert the enclosure.
3. Secure each front side of the enclosure with a black screw.
IBM Storwize V3500
IBM Storwize V3500
Installation Poster
Installation Poster
Optional features
Bracket pin
Bracket pin
Black screw
Bracket pin
Bracket pin
Black screw
For more information about each step
and for the most current IBM Storwize V3500
Quick Installation Guide , see:
http://ibm.biz/BdxH65
1. Close the rear bracket on each rail and
c
c
use one black screw to secure each rail.
2. Close each front bracket but do not
insert a screw at this time.
e e 1. Attach the top of each end cap to the tab
on the chassis flange.
2. Then rotate each end cap down until the
bottom snaps into place.
