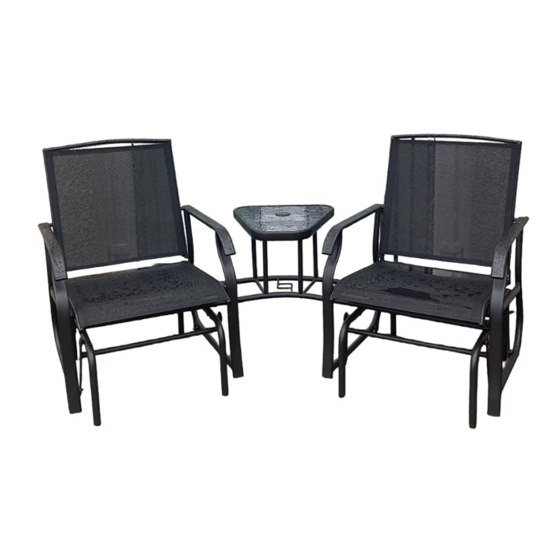

Patio Furniture Set 3 Pieces
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
USER'S MANUAL
NP10188

Advertisement

loading

Related Manuals for Costway NP10188

Summary of Contents for Costway NP10188

  • Page 1 With your inspiring rating, COSTWAY will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! Mit Ihrer inspirierenden Bewertung wird COSTWAY konsistenter sein, um Ihnen EIN SCHÖNES EINKAUFSERLEBNIS, GUTE PRODUKTE und EFFIZIENTEN SERVICE zu bieten! Avec votre évaluation inspirante, COSTWAY continuera à...

  • Page 2: Parts List

    PARTS LIST HARDWARE LIST Mx12 Ox12 Left Armrest Right Armrest Back Cross Bar M6x15mm Bolt M6x35mm Bolt M6x45mm Bolt Qx16 Front Support Bar Back Support Bar Sway Bar (for Glass Table Top) (for Glass Table Top) M6x50mm Bolt M6x60mm Bolt Rx32 Sx48 Table Cross Bar...
  • Page 3 ASSEMBLY INSTRUCTIONS STEP 1 : Place all chair parts on a protected flat surface. Assemble Sway Bar (D) to Left Leg Tube (J) with M6 x 45mm Bolt (O), 5mm Plastic Washer (T), Steel Washer (S) and M6 Nut (R). Do not tighten the bolt fully at this moment.
  • Page 4 STEP 2 : Repeat STEP 1 for another chair. STEP 3 : Assemble Chair Cross Bars(L) to Leg Tube (K or J) on the outside of chair seat using M6 x 60mm Bolts (Q), Steel Washers (S) and M6 Nuts (R). Do not tighten the bolts fully yet. See Figure 2. Repeat for another chair.
  • Page 5 STEP 4 : Assemble Right Armrest (B) and Left Armrest (A) to Sway STEP 5 : Put Glass Table Top (H) upside down on a protected flat Bars (D) using ; M6 X 50mm Bolts (P), 8mm Plastic Washers (U), surface.
  • Page 6 STEP 7 : Connect glass table top to one chair by inserting Table STEP 8 : Assemble Chair Back (I) to Le Armrest (A) and Right Cross Bar (G) into Chair Cross Bars (L). Assemble Table Cross Bar Armrest (B) using M6 x 45mm Bolts (O), Steel Washers (S) and (G), Chair Cross Bar (L) and Leg Tube (K or J) altogether using M6 x 14mm Plastic Washers (V).
