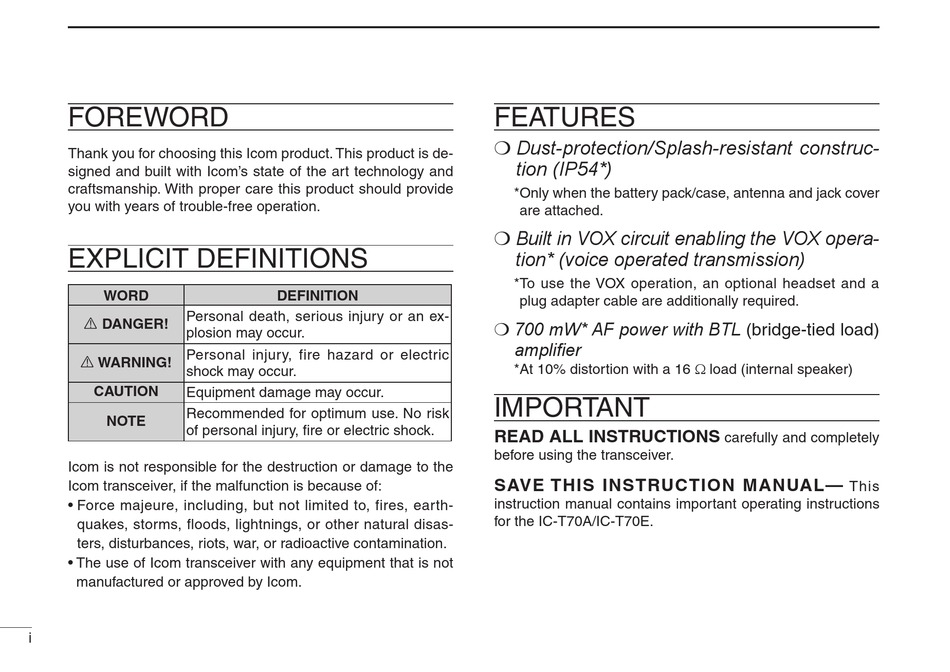

FOREWORD

Thank you for choosing this Icom product. This product is de-
signed and built with Icom's state of the art technology and
craftsmanship. With proper care this product should provide
you with years of trouble-free operation.

EXPLICIT DEFINITIONS

WORD
Personal death, serious injury or an ex-
R DANGER!
plosion may occur.
Personal injury, fire hazard or electric
R WARNING!
shock may occur.
CAUTION
Equipment damage may occur.
Recommended for optimum use. No risk
NOTE
of personal injury, fire or electric shock.
Icom is not responsible for the destruction or damage to the
Icom transceiver, if the malfunction is because of:
• Force majeure, including, but not limited to, fires, earth-
quakes, storms, floods, lightnings, or other natural disas-
ters, disturbances, riots, war, or radioactive contamination.
• The use of Icom transceiver with any equipment that is not
manufactured or approved by Icom.
i
DEFINITION

FEATURES

❍ Dust-protection/Splash-resistant construc-
tion (IP54*)
* Only when the battery pack/case, antenna and jack cover
are attached.
❍ Built in VOX circuit enabling the VOX opera-
tion* (voice operated transmission)
* To use the VOX operation, an optional headset and a
plug adapter cable are additionally required.
700 mW* AF power with BTL (bridge-tied load)
❍
amplifier
*At 10% distortion with a 16

IMPORTANT

READ ALL INSTRUCTIONS
before using the transceiver.
SAVE THIS INSTRUCTION MANUAL—
instruction manual contains important operating instructions
for the IC-T70A/IC-T70E.
Ω
load (internal speaker)
carefully and completely
This
