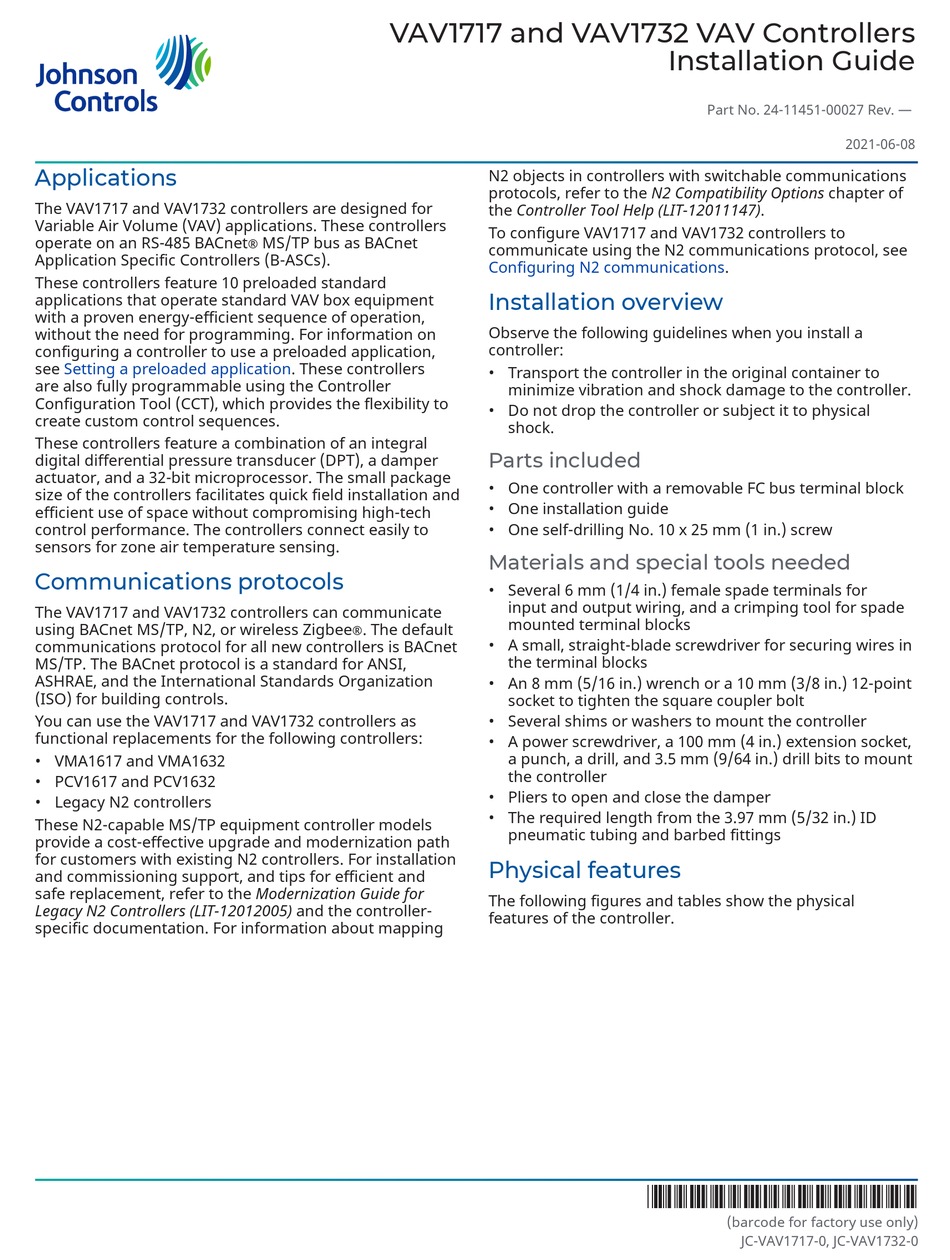

Johnson Controls VAV1717 Installation Manual
Johnson Controls VAV1717 Installation Manual

Johnson Controls VAV1717 Installation Manual

Vav controllers

Advertisement

Quick Links

Applications
The VAV1717 and VAV1732 controllers are designed for
Variable Air Volume (VAV) applications. These controllers
operate on an RS-485 BACnet
Application Specific Controllers (B-ASCs).
These controllers feature 10 preloaded standard
applications that operate standard VAV box equipment
with a proven energy-efficient sequence of operation,
without the need for programming. For information on
configuring a controller to use a preloaded application,
see
Setting a preloaded
application. These controllers
are also fully programmable using the Controller
Configuration Tool (CCT), which provides the flexibility to
create custom control sequences.
These controllers feature a combination of an integral
digital differential pressure transducer (DPT), a damper
actuator, and a 32-bit microprocessor. The small package
size of the controllers facilitates quick field installation and
efficient use of space without compromising high-tech
control performance. The controllers connect easily to
sensors for zone air temperature sensing.
Communications protocols
The VAV1717 and VAV1732 controllers can communicate
using BACnet MS/TP, N2, or wireless Zigbee
communications protocol for all new controllers is BACnet
MS/TP. The BACnet protocol is a standard for ANSI,
ASHRAE, and the International Standards Organization
(ISO) for building controls.
You can use the VAV1717 and VAV1732 controllers as
functional replacements for the following controllers:
• VMA1617 and VMA1632
• PCV1617 and PCV1632
• Legacy N2 controllers
These N2-capable MS/TP equipment controller models
provide a cost-effective upgrade and modernization path
for customers with existing N2 controllers. For installation
and commissioning support, and tips for efficient and
safe replacement, refer to the Modernization Guide for
Legacy N2 Controllers (LIT-12012005) and the controller-
specific documentation. For information about mapping
VAV1717 and VAV1732 VAV Controllers
MS/TP bus as BACnet
®
. The default
®
Installation Guide
N2 objects in controllers with switchable communications
protocols, refer to the N2 Compatibility Options chapter of
the Controller Tool Help (LIT-12011147).
To configure VAV1717 and VAV1732 controllers to
communicate using the N2 communications protocol, see
Configuring N2
communications.
Installation overview
Observe the following guidelines when you install a
controller:
• Transport the controller in the original container to
minimize vibration and shock damage to the controller.
• Do not drop the controller or subject it to physical
shock.
Parts included
• One controller with a removable FC bus terminal block
• One installation guide
• One self-drilling No. 10 x 25 mm (1 in.) screw
Materials and special tools needed
• Several 6 mm (1/4 in.) female spade terminals for
input and output wiring, and a crimping tool for spade
mounted terminal blocks
• A small, straight-blade screwdriver for securing wires in
the terminal blocks
• An 8 mm (5/16 in.) wrench or a 10 mm (3/8 in.) 12-point
socket to tighten the square coupler bolt
• Several shims or washers to mount the controller
• A power screwdriver, a 100 mm (4 in.) extension socket,
a punch, a drill, and 3.5 mm (9/64 in.) drill bits to mount
the controller
• Pliers to open and close the damper
• The required length from the 3.97 mm (5/32 in.) ID
pneumatic tubing and barbed fittings
Physical features
The following figures and tables show the physical
features of the controller.
*241145100027-*
Part No. 24-11451-00027 Rev. —
2021-06-08
(barcode for factory use only)
JC-VAV1717-0, JC-VAV1732-0
