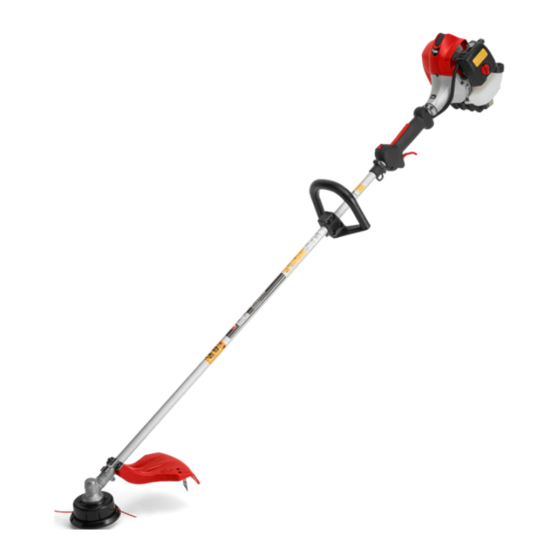

RedMax BC2601DL Owner's/Operator's Manual
  1. Manuals
  2. Brands
  3. RedMax Manuals
  4. Brush Cutter
  5. BC2601DL
  6. Owner's/operator's manual

RedMax BC2601DL Owner's/Operator's Manual

Redmax brush cutter user manual
Hide thumbs Also See for BC2601DL:
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER / OPERATOR MANUAL
WARNING
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
APPLICABLE SERIAL NUMBERS :
DRIVE UNIT 900101 and up
BRUSHCUTTERS
BC2601DL
ENGINE UNIT 900101 and up
Thank you for purchasing a RedMax
product.
Before using our brushcutters, please
read this manual carefully to understand
the proper use of your unit.
T1077-93110(910)

Advertisement

Table of Contents
loading

Related Manuals for RedMax BC2601DL

Summary of Contents for RedMax BC2601DL

  • Page 1 California to cause cancer, birth defects or other reproductive harm. APPLICABLE SERIAL NUMBERS : DRIVE UNIT 900101 and up BC2601DL Thank you for purchasing a RedMax product. Before using our brushcutters, please read this manual carefully to understand the proper use of your unit.

  • Page 2: Safety First

    Read this manual carefully to understand all safety precautions, controls, proper operation and maintenance of your RedMax brushcutters. Failure to do so could result in serious injury. Instructions contained in warnings within this manual marked with a concern critical points which must be taken into consideration to prevent possible serious bodily injury, and for this reason you are requested to read all such instructions carefully and follow them without fail.

  • Page 3: Table Of Contents

    SAFETY PRECAUTIONS... 4 IN ORDER TO ENSURE PROPER AND SAFE OPERATION OF YOUR BRUSHCUTTER WORK GEAR AND CLOTHING WARNINGS CONSIDERING HANDLING OF FUEL THINGS TO CHECK BEFORE USING YOUR BRUSHCUTTER THINGS TO CHECK BEFORE STARTING UP THE ENGINE AVOID NOISE PROBLEM THINGS TO BE CAREFUL ABOUT WHEN USING YOUR BRUSHCUTTER NOTES ON CARE AND MAINTENANCE OF YOUR BRUSHCUTTER SET UP ...

  • Page 4: Safety Precautions

    Safety Precautions In order to ensure proper and safe operation of your brushcutter • Read this Owner/Operator Manual carefully. Be sure you understand how to operate this unit properly before you use it. Failure to do so could result in serious injury.

  • Page 5: Work Gear And Clothing

    Warnings considering handling of fuel • The engine of the RedMax® brushcutter is designed to run on a mixed fuel which contains highly flammable gasoline. This fuel is highly flammable and you should...

  • Page 6: Things To Check Before Using Your Brushcutter

    15 feet (5m) or less around the brushcutter before starting the engine. • The RedMax brushcutter is equipped with a centrifugal clutch mechanism which causes the cutting blades to begin to rotate as soon as the engine is started by putting the throttle into the start position.

  • Page 7: Things To Be Careful About When Using Your Brushcutter

    Safety Precautions Things to be careful about when using your brushcutter • When using your brushcutter, grip the handles of the brushcutter firmly with both hands, place your feet slightly apart (slightly further apart than the width of your shoulders) so that your weight is distributed evenly across both legs, and always be sure to maintain a steady, even posture while working.

  • Page 8: Notes On Care And Maintenance Of Your Brushcutter

    • When replacing blade or any other parts or when replacing the oil or any lubricants, always be sure to use only RedMax products or products which have been certified by RedMax for use with the RedMax brushcutter.

  • Page 9: Set Up

    Set up MOUNTING ENGINE 1. Loosen the bolts temporarily attached to the clutch housing. 2. Push the driveshaft toward the gearcase and rotate it by hand to check that the driveshaft is engaged with the gears. 3. Insert the shaft tube into the clutch housing until it bottoms.

  • Page 10: Fuel

    3m(10ft) away from the fueling point before starting the engine. • The RedMax engines are lubricated by oil specially formulated for air-cooled 2-cycle gasoline engine use. If RedMax oil is not available, use an anti-oxidant added quality oil expressly labeled for air-cooled 2-cycle engine use.

  • Page 11: Operation

    Operation STARTING ENGINE 1. Rest the unit on a flat, firm place. Keep the cutting head off the ground and clear of surrounding objects as it will start rotating upon starting of the engine. 2. Pump the primer until fuel flows out in the clear tube.

  • Page 12: Stopping Engine

    Operation STOPPING ENGINE 1. Release the throttle lever and run the engine for a half minute. 2. Shift the ignition switch to the STOP position. NOTE • Except for an emergency, avoid stopping the engine while pulling the throttle lever. ADJUSTING IDLING SPEED 1.

  • Page 13: Metal Blade Usage

    Operation METAL BLADE USAGE • Always cut by guiding the head from your right to left. • When moving a wide area, start working from the left side to avoid interference of cut grass. • A metal blade cut best up to the point 1/3 from the edge.
  • Page 14 Operation g. Cut only from your right to your left. h. Keep your path of advance clear of material that has been cut and other debris. 3. How you can maintain the best control: a. Keep a good, firm grip on the unit with both hands.

  • Page 15: Maintenance

    • Never alter the brushcutter or take the engine apart. • When replacing parts, always be sure to use only RedMax products or products which have been certified by RedMax for use with the RedMax brushcutter. • Things check brushcutter REFILLING TRIMMING LINE 1.

  • Page 16: Fuel Filter

    For a replacement plug, use the correct type specified by RedMax(See SPECIFI- CATIONS on the page 18). • REPLACEMENT PLUG IS A CHAMPION RCJ6Y OR THE EQUIVALENT, SUCH AS BOSCH WSR8E OR NGK BPMR7A.

  • Page 17: Storage

    Maintenance INTAKE AIR COOLING VENT WARNING • Never touch the cylinder, muffler, or spark plugs with your bare hands immediately after stopping the engine. The engine can become very hot when in operation, and doing so could result in severe burns. •...

  • Page 18: Specifications

    Specifications BC2601DL Overall size(LxWxH) ····················································· 71.7x12.4x13.2(in) / 1821x315x335(mm) Dry weight w/o acc. ····························································································· 9.6(lbs) / 4.8(kg) Engine Type······················································································ Air-cooled 2-stroke gasoline Model ·········································································································· Zenoah G26L Displacement ······································································································· 25.4(cc) Max. output ························································································· 1.2(HP)at 7500rpm Fuel ························································································· Mixture(Gasoline 32:Oil 1) Carburetor ··················································································· Walbro Diaphragm type Spark plug ····························································································...

  • Page 19: Parts List

    (7) years after the machine is discontinued. It is also possible that some parts may be available even after the limit of seven (7) years.] APPLICABLE SERIAL NUMBERS : DRIVE UNIT 900101 and up BRUSHCUTTERS BC2601DL ENGINE UNIT 900101 and up Oct.1999...
  • Page 20 Parts List Fig.1 TRIMMER GROUP BC2601DL...
  • Page 21 Fig.1 TRIMMER GROUP BC2601DL Key# Description PIPE-COMP SHAFT GEARCASE-ASS’Y • GEARCASE • BEARING • BEARING • RING • SEAL • SHAFT • GEAR • NUT –– ––––––––– • PINION • BEARING • BEARING • RING • RING • BOLT • BOLT •...
  • Page 22 Parts List Fig.2 ENGINE GROUP BC2601DL...
  • Page 23 Fig.2 ENGINE GROUP BC2601DL Key# Description CYLINDER GASKET, base BOLT INSULATOR GASKET, insulator GASKET, carburetor SCREW MUFFLER ASS'Y • ARRESTER BOLT GASKET, muffler PLATE, muffler SCREW CRANKCASE COMP. • PIN GASKET, case BEARING OIL SEAL OIL SEAL SNAP RING SCREW...

  • Page 24: California Emission Control Warranty Statement

    CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS THE CALIFORNIA AIR RESOURCES BOARD AND KOMATSU ZENOAH Co. ARE PLEASED TO EXPLAIN THE EMISSION CONTROL SYSTEM WARRANTY ON YOUR 1995 AND LATER LAWN AND GARDEN EQUIPMENT ENGINE. IN CALIFORNIA, NEW UTILITY AND LAWN AND GARDEN EQUIPMENT ENGINES MUST BE DESIGNED, BUILT AND EQUIPPED TO MEET THE STATE'S STRINGENT ANTI-SMOG STANDARDS.
  • Page 25 ZENOAH AMERICA INC. AT (770)-381-5147. IMPORTANT: YOU WILL RECEIVE A WARRANTY REGISTRATION CARD AT TIME OF PURCHASE.PLEASE FILL OUT THE CARD AND SEND IT TO RedMax / KOMATSU ZENOA AMERICA WITHIN SEVEN (7) DAYS.BE SURE TO KEEP A COPY FOR YOUR RECORDS.
  • Page 26 KOMATSU ZENOAH AMERICA INC. 4344 Shackleford Road Suite 500 Norcross, Georgia 30093 © Printed in Japan...
