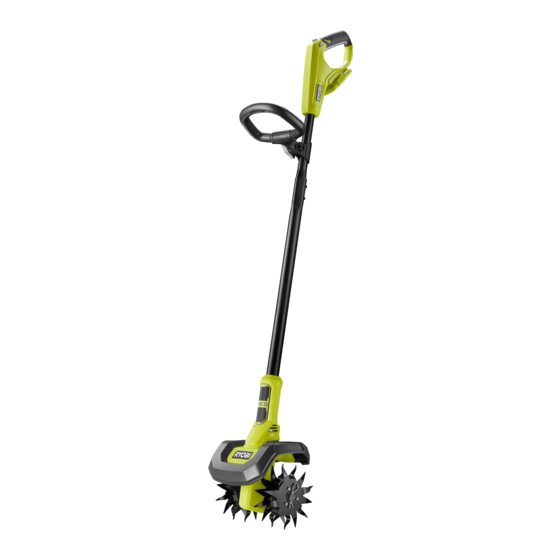

- Page 1 FRONT PAGE R18CLV...
-
Page 2: Work Area Safety
drugs, alcohol or medication. A moment of IMPORTANT! inattention while operating power tools may It is essential that you read the instructions result in serious personal injury. in this manual before assembling, operating, ■ Use personal protective equipment. Always and maintaining the product. wear eye protection. - Page 3 of starting the power tool accidentally. modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk ■ Store idle power tools out of the reach of of injury. children and do not allow persons unfamiliar with the power tool or these instructions to ■...
-
Page 4: Maintenance
TRANSPORTING LITHIUM BATTERIES ■ Never allow children or people unfamiliar with these instructions to use the product. Transport the battery pack in accordance with Local regulations may restrict the age of the local and national provisions and regulations. Follow all special requirements on packaging operator. - Page 5 Guaranteed sound power level Keep feet and hands away from rotating tines. Regulatory Compliance Mark (RCM). The product meets applicable regulatory requirements. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
- Page 6 Original Instructions...
- Page 7 R18CLV Lock-out button Speed selector switch Trigger switch Handle adjustment knob Telescopic collar Lower shaft Tine guard Tine guard locking slot Handle Operator's manual Outer tine D Inner tine C Inner tine B Outer tine A Hitch pin Crosshead screwdriver...
- Page 8 Always wear safety goggles or safety NOTE: The product will not operate properly if the tines are installed incorrectly. glasses with side shields when operating the product. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.
- Page 9 Place tine B on the tine shaft to the right Insert the hitch pin into the holes Place tine C on the tine shaft to the of the gearbox. The stamped side of the located on the side of the tine shaft. left of the gearbox.
- Page 10 Four-tine operation p.11 p.13 Two-tine operation Cleaning the tines p.15 Storing the product p.17...
- Page 11 FOUR-TINE OPERATION WARNING: Keep hands and feet away from the rotating tines at all times. CAUTION: The product must be adequately controlled by using two-handed operation at all times. 1. Install the battery pack until the latches snap into place. Make sure that the battery pack is securely attached before using the product.
- Page 12 NOTE: For cultivating ease and safety, use a forward and backward motion when using the product. WARNING: Never operate the product on rocky surfaces. Operation...
- Page 13 TWO-TINE OPERATION 1. Press the latches on each side of the battery pack to remove the battery pack. CAUTION: Wait for the product to cool before removing the tines. 2. Unlock the hitch pin, and remove tine A. Install the hitch pin back in place. 3.
- Page 14 5. Press the lock-out button, and squeeze the trigger to start operating the product. Use the speed selector switch to increase the power when necessary. Operation...
- Page 15 CLEANING THE TINES 1. Press the latches on each side of the battery pack to remove the battery pack. 2. Unlock the hitch pin and remove tine A. 3. Unlock the hitch pin and remove tine D. 4. Unlock the tine guard by using a coin or screwdriver to turn the slot counterclockwise.
- Page 16 6. Clean the product with a soft, dry cloth, and clean the debris from the tines with a stiff brush. WARNING: Do not use water to clean the tines. Maintenance...
- Page 17 STORING THE PRODUCT NOTE: Clean all foreign materials from the product. 1. Press the lock-out button to lock the trigger switch in place. 2. Press the latches on each side of the battery pack to remove the battery pack. 3. Unlatch the telescopic collar, and adjust the shaft to its minimum length.
- Page 18 5. Turn handle adjustment knob counterclockwise, and press the front handle down. Turn the knob clockwise to secure the handle. 6. Store the product in a cool, dry, and well- ventilated place that is inaccessible to children and well away from sources of ignition.
- Page 19 WARNING! The declared vibration total values and the declared noise emission values Cordless cultivator given in this instruction manual have been Model R18CLV measured in accordance with a standardised Total weight 4.9 kg test and may be used to compare one tool with another.
- Page 20 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. © 2021 Techtronic Cordless GP 961479043-01...
