NEC Display Solutions of America, Inc.

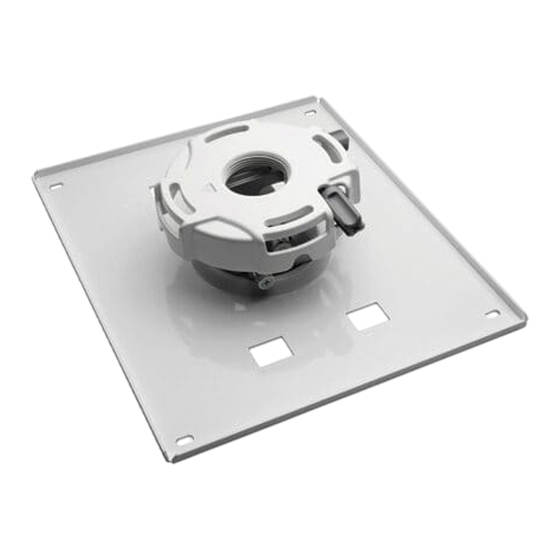

Ceiling Mount for NEC NP1150, NP2150, NP3150, NP3151W, NP1250, NP2250,
NP3250, NP3250W, NP-PA500U, NP-PA500X, NP-PA600X, NP-PA550W, NP-P502WL, NP-P502HL, NP-PA521U,
NP-PA571W, NP-PA621X, NP-PA622U, NP-PA672W, and NP-PA722X Projectors
Compatible
ENG
model/series*
PA600CM
AEC*,
ALU*,
EXT*,
SCP200
50 lb
MAX
(22.7 kg)
1
2015-06-17
#:056-9083-1
Advertisement
Related Manuals for NEC PA600CM
Summary of Contents for NEC PA600CM
- Page 1 NEC Display Solutions of America, Inc. Ceiling Mount for NEC NP1150, NP2150, NP3150, NP3151W, NP1250, NP2250, NP3250, NP3250W, NP-PA500U, NP-PA500X, NP-PA600X, NP-PA550W, NP-P502WL, NP-P502HL, NP-PA521U, NP-PA571W, NP-PA621X, NP-PA622U, NP-PA672W, and NP-PA722X Projectors PA600CM 50 lb (22.7 kg) Compatible AEC*, model/series*...
- Page 2 WARNING ENG - This product is designed to be installed on wood joist/beam or solid concrete ceilings. Hardware is included for wood joist/beam and solid concrete installation. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.
- Page 3 Tools Needed for Assembly. ENG To properly tighten screws: Tighten until screw head makes contact, then tighten another 1/2 turn. Do not overtighten screws. 3/8" (10mm) +1/2 5/32" 5/16" (4mm) (8mm) 2015-06-17 #:056-9083-1...
-
Page 4: Table Of Contents
Parts (Before beginning, make sure you have all parts shown below). Parts List Description Part # A projector mount assembly 054-2171 B connection block 580-4400 C 4 mm security allen wrench 560-9646 D concrete anchor 590-0320 E #14 x 2.5 phillips hex head wood screw 5S1-015-C04 F #10-32 x 3/8"... - Page 5 Wood joist/beam Extension Column (not included) Concrete Ceiling 2b-1 2015-06-17 #:056-9083-1...
-
Page 6: A ( 1 )
WARNING ENG - When installing Peerless ceiling mounts on a wood joist/beam covered with gypsum board (drywall), verify that the joists or beams are a minimum of 2" x 4" nominal size. Do not install over gypsum board thicker than 5/8". 2a-1 Use stud finder to locate and mark stud center lines. - Page 7 2a-3 5/32" 2.5" (4mm) (64mm) Mounting hole must center on stud. Drill mounting holes into supporting surface 5/32" (2.5" (64 mm) minimum depth required). (4mm) 2a-4 Install using wood screws provided. ACCESS SLOT FOR ACCESS SLOT FOR WOOD JOIST WOOD JOIST OPEN END WRENCH OPEN END WRENCH ALLOWS TIGHTENING...
- Page 8 2b-1 Loosen. 2b-2 Rotate mount at least three full turns onto UL listed EXT, AEC or ALU series extension column (sold separately). 2b-3 Tighten. 2015-06-17 #:056-9083-1...
-
Page 9: Projector Mount Assembly
WARNING ENG - When installing Peerless ceiling mounts on a concrete ceiling, the ceiling must be at least 8" thick with a minimum compressive strength of 2000 psi. Never attach concrete expansion anchors to concrete covered with plaster, drywall, or other finishing material. 2c-1 Mark mounting holes. -
Page 10: D ( 2 )
2c-3 Insert anchor flush to concrete. D (2) 2b-4 2c-4 Install using concrete anchors and wood screws provided. Maximum 80 in. ∙ lb (9 N.M.). H (2) E (2) 2015-06-17 #:056-9083-1... -
Page 11: J ( 1 )
Note proper orientation of notch. F (2) K (4) L (4) 2015-06-17 #:056-9083-1... - Page 12 Tighten. Optional security screw. 2015-06-17 #:056-9083-1...
- Page 13 Cable management: adjust pitch then route cables as shown. Loosen. Retighten. Loosen, adjust, tighten. +/- 5° 2015-06-17 #:056-9083-1...
- Page 14 Loosen, adjust, tighten. -15° +15° -20° +20° +/- 10° Loosen, adjust, tighten. 3/8" (10mm) 2015-06-17 #:056-9083-1...
- Page 15 LIMITED FIVE-YEAR WARRANTY Peerless Industries, Inc. (“Peerless”) warrants to original end-users of Peerless products will be free from defects in material and ® workmanship, under normal use, for a period of five years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product's manufacture).
