Philips AZ1852 User Manual

Philips cd player user manual
Hide thumbs Also See for AZ1852:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
Register your product and get support at
AZ1852
User manual
EN

Advertisement

Table of Contents
loading

Related Manuals for Philips AZ1852

Summary of Contents for Philips AZ1852

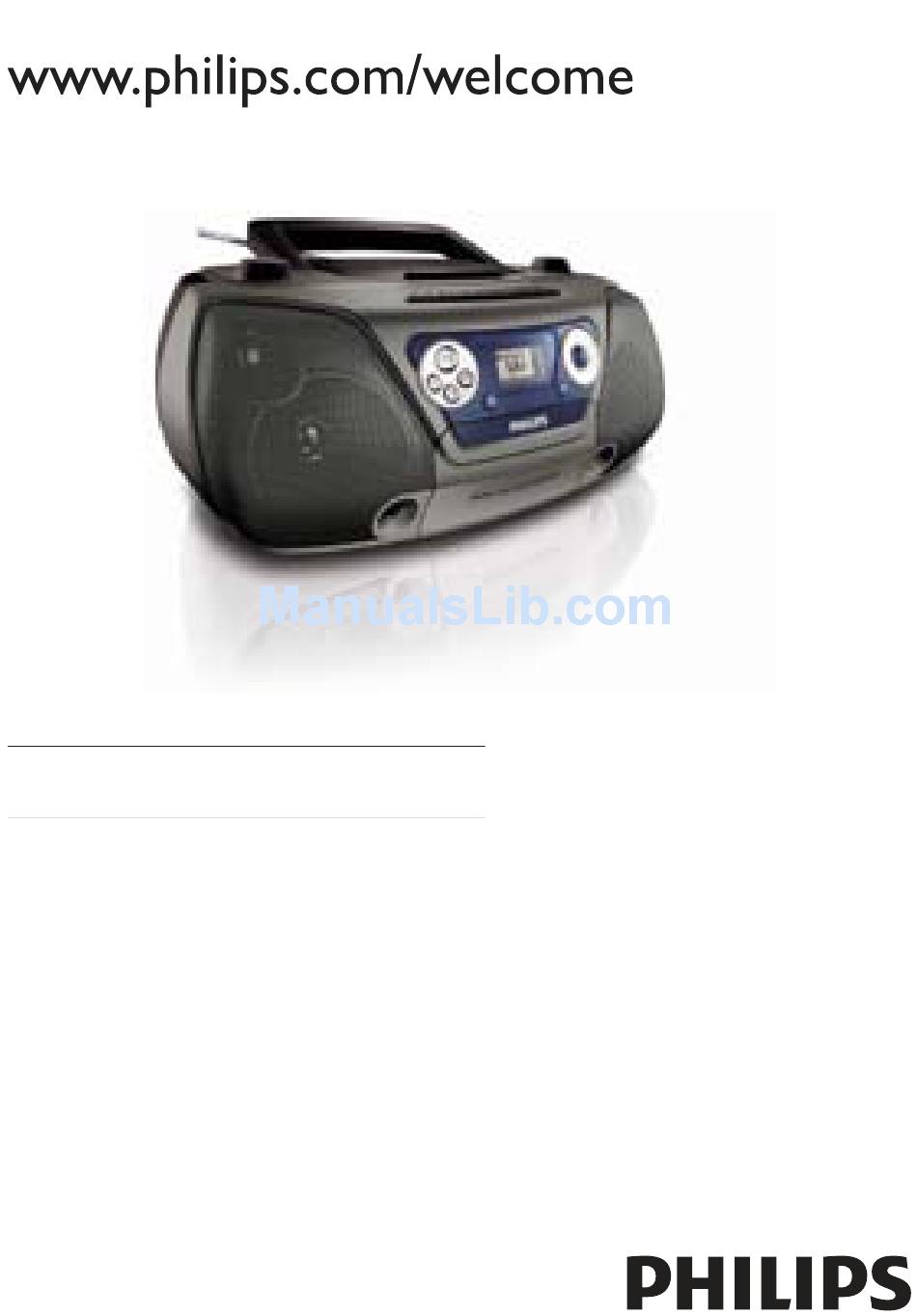

  • Page 1 Register your product and get support at AZ1852 User manual...

  • Page 2: Important Safety Instructions

    Important Safety Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 3 Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
  • Page 4 Warning • Never remove the casing of this apparatus. • Never lubricate any part of this apparatus. • Never place this apparatus on other electrical equipment. • Keep this apparatus away from direct sunlight, naked flames or heat. • Never look into the laser beam inside this apparatus. • Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this apparatus from the power.
  • Page 5 Notice This product complies with the radio interference requirements of the European Community. Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment.
  • Page 6 Recycling Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC: Never dispose of your product with other household waste.

  • Page 7: Trademark Notice

    Environmental information All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), paper pulp (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by a specialized company.

  • Page 8: Your Cd Soundmachine

    Introduction With this apparatus, you can enjoy music from audio discs, external devices, and listen to radio stations. The apparatus offers you multiple sound effect settings that enrich sound with Dynamic Bass Boost (DBB). The apparatus supports the following media formats: Note •...

  • Page 9: Overview Of The Main Unit

    • Quick Start Guide Overview of the main unit Antenna • USB socket. Source selector:CD, USB, FM, TAPE (OFF). • Select source and turn on/off the unit. LIFT-OPEN • Open/Close the CD compartment UPPER 2 LOWER 2 BATTERY SUPPLY: 6 x 1.5V R14/ UM2/ C CELL...
  • Page 10 VOLUME • Adjust volume. • Fast rewind/wind the tape. • Stop the tape or open the tape compartment. • Pause tape Play. • Start or pause CD play • Skip to the previous/next track. • Search within a track. • Stop play or erase a program.

  • Page 11: Overview Of The Remote Control

    • Tune to radio stations • Headphone socket. MP3 LINK • ck for an external audio device. Overview of the remote control • Search within a track. • Stop play. • Erase a program.

  • Page 12: Get Started

    Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of your apparatus. The model number and serial number are on the bottom of your apparatus. Write the numbers here: Model No.

  • Page 13: Install Batteries

    Install batteries Note • You can use both batteries and AC power as power supply of this apparatus. • Batteries are not supplied with the accessories. Open the battery compartment. Insert 6 batteries (type: R-14, UM-2 or C-cells) with correct polarity (+/-) as indicated.

  • Page 14: Prepare The Remote Control

    Prepare the remote control Caution • Risk of explosion! Keep batteries away from heat, sunshine or fire. Never discard batteries in fire. • Risk of decreased battery life! Never mix different brands or types of batteries. • Risk of product damage! When the remote control is not used for long periods, remove the batteries. For first-time use: Remove the protective tab to activate the remote control batteries.

  • Page 15: Connect Power

    Connect power Warning • Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the apparatus. • Risk of electric shock! When you disconnect the AC power, always pull the plug from the socket.
  • Page 16 Play Play CD Slide the source selector to CD. Pull LIFT-OPEN to open the disc tray. Insert a disc with the printed side facing up, then close the disc tray. Play starts automatically. » • To pause/resume play, press • To stop play, press AL-/AL+ to select an album.

  • Page 17: Play From Usb Devices

    Play tape Slide the source selector to TAPE. Press on main unit to open the tape door. Load the tape with the open side upward and the full spool to the left. Press on main unit to start play. • To pause/resume play, press •...

  • Page 18: Play Options

    Use a cable with 3.5mm plugs on both ends (not supplied) to connect MP3 LINK jack (3.5mm) on this apparatus and the headphone jack on an MP3 player. Play options Adjust volume level During play, turn VOLUME to increase/decrease the volume level.

  • Page 19: Program Tracks

    • Only tracks. • When play CD , Mode should be Repeat/Repeat All/Shuffle. • When Mp3, Mode should be Repeat/Repeat Album/Repeat All/ Shuffle. Program tracks You can program a maximum of 20 tracks. In CD/USB mode, at the stop position, press PROG to activate the program mode. [PROG] (program) starts to blinks. »...

  • Page 20: Record From Cd/Usb To Tape

    • Check and tighten slack tape before use with a pencil to avoid jamming the deck mechanism. • The volume level is set automatically. • No recording at beginning 7 seconds. • Break safeguard tab to prevent the accidental erasure of a recording. Record from CD/USB to tape Slide the source to CD/USB.
  • Page 21 CD Ripping You can record music from Audio CD to USB mass storage device. Record one track Insert an audio CD. Slide the source selector to CD. Press Plug in an USB device. Press USB REC to start recording the current track. [RIP] starts to blink.

  • Page 22: Tape/Tuner Ripping

    Tape/Tuner Ripping You can record music from tape or radio to USB mass storage device. Insert a cassette tape. Slide the source selector to TAPE or FM. Plug in a USB device. To play tape, Press Press TUNING to select a radio station. Press USB REC.

  • Page 23: Delete From Usb Device

    Root Sub-folder Folder RECORD CDREC_01 CDREC_02 CDREC_XX COPY_01 COPY_02 COPY_XX LINE_IN Delete from USB device During USB play, press • To delete an audio folder, in the stop position, press AL+ to select an audio folder. Press DEL . A confirmation message is displayed. »...

  • Page 24: Listen To The Radio

    Tune to a radio station Note • For optimal reception, fully extend and adjust the position of the FM antenna. Switch the source selector to FM. Turn the TUNING control knob to tune to a desired radio station. Product information Note •...

  • Page 25: Specifications

    Specifications Disc Laser Type Disc Diameter Support Disc Audio DAC Total Harmonic Distortion Frequency Response S/N Ratio Tuner Tuning Range Total Harmonic Distortion Signal to Noise Ratio Semiconductor 12cm/8cm CD-DA, CD-R, CD-RW, MP3- CD, WMA-CD 24Bits / 44.1kHz <1% 60Hz -16kHz >62dBA FM: 87.5 - 108MHz;...

  • Page 26: Supported Mp3 Disc Formats

    General Power supply Operation Power Consumption Dimensions - Main Unit (W x H x D) Net Weight Gross Weight Supported MP3 disc formats • ISO9660, Joliet • Maximum title number: 512 (depending on file name length) • Maximum album number: 255 • Supported sampling frequencies: 32 kHz, 44.1kHz, 48 kHz •...

  • Page 27: Maintenance

    • WMA v9 or earlier • Directory nesting up to a maximum of 8 levels • Number of albums/ folders: maximum 99 • Number of tracks/titles: maximum 999 • File name in Unicode UTF8 (maximum length: 128 bytes) Unsupported formats: •...

  • Page 28: Troubleshooting

    • After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good play quality, clean the disc lens with Philips CD lens cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner. Troubleshooting Warning •...
  • Page 29 • Disconnect and reconnect the AC power plug, then turn on the system again. • As a power-saving feature, the unit switches off automatically 15 minutes after track play reaches the end and no control is operated. Remote control does not work •...
  • Page 30 © 2010 Koninklijke Philips Electronics N.V. All rights reserved. AZ1852_93_UM_V2.0...
