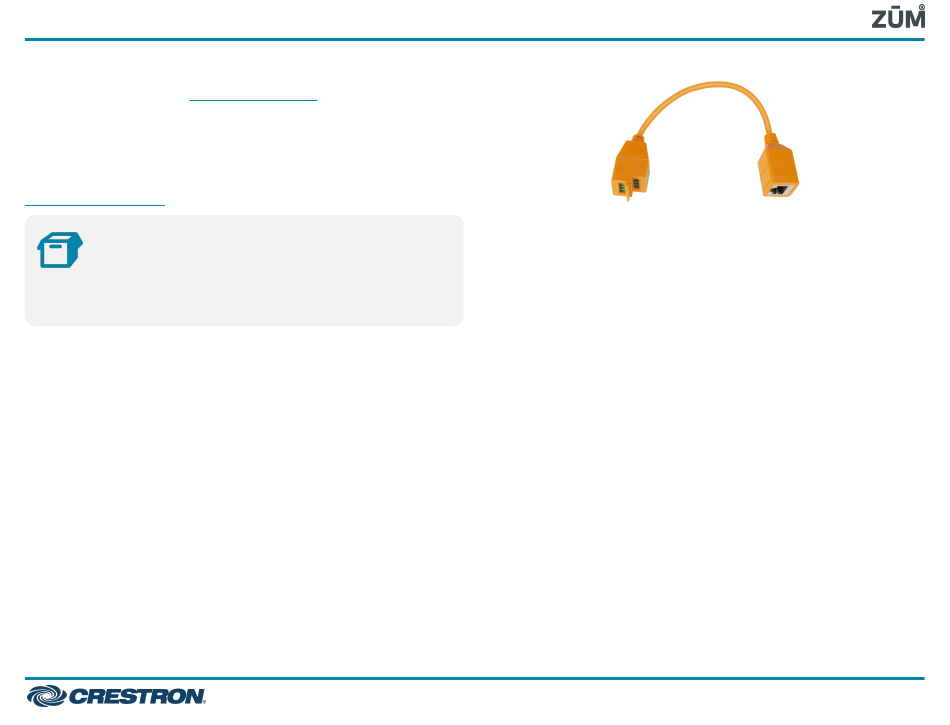

ZUMLINK-CONV-CN

Zūm® Wired Adapter Cable for Cresnet® Devices

The Crestron® Zūm® Wired

ZUMLINK-CONV-CN

Zūm wired devices with Zūm Link communication to integrate via

Cresnet® for legacy controls. The plenum-rated adapter converts a

single female RJ-45 Zūm Link port connection to use on the Cresnet

network. Cresnet screw terminals provide a contact closure input with

the ability to trigger Zūm devices into Emergency Override mode. For

flexible in-room wiring, daisy chain Zūm Link with the

ZUMLINK-SPLTR-RJ45

RJ-45 splitter to avoid dead ends.

In the Box

ZUMLINK-CONV-CN Zūm® Wired Adapter Cable for

Cresnet® Devices

adapter cable allows

Page 1 Cresnet screw terminals provide a contact closure input with the ability to trigger Zūm devices into Emergency Override mode. For flexible in-room wiring, daisy chain Zūm Link with the ZUMLINK-SPLTR-RJ45 RJ-45 splitter to avoid dead ends. In the Box ZUMLINK-CONV-CN Zūm® Wired Adapter Cable for Cresnet® Devices...
Page 2 Terminal Description Connections 24V power The ZUMLINK-CONV-CN integrates Cresnet devices into a Zūm system. Data terminal pass-through only Use the Zūm link cable (CBL-CAT5E-ZUMLINK-P) to connect the RJ-45 Data terminal pass-through only port to Zūm link sensors and keypad. Connect the Cresnet terminal block to legacy Cresnet lighting products, including a SpaceBuilder®...
Page 3 Quick Start ZUMLINK-CONV-CN Zūm® Wired Adapter Cable for Cresnet® Devices Application The following diagram is a sample application. Integrating a Legacy Lighting System into a Zūm System...
Page 4 Service Providers (CSPs) under a limited nonexclusive, nontransferable Software Development Tools License Agreement. Crestron product operating system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_agreement. www.crestron.com/model/6512025 The product warranty can be found at www.crestron.com/warranty.
