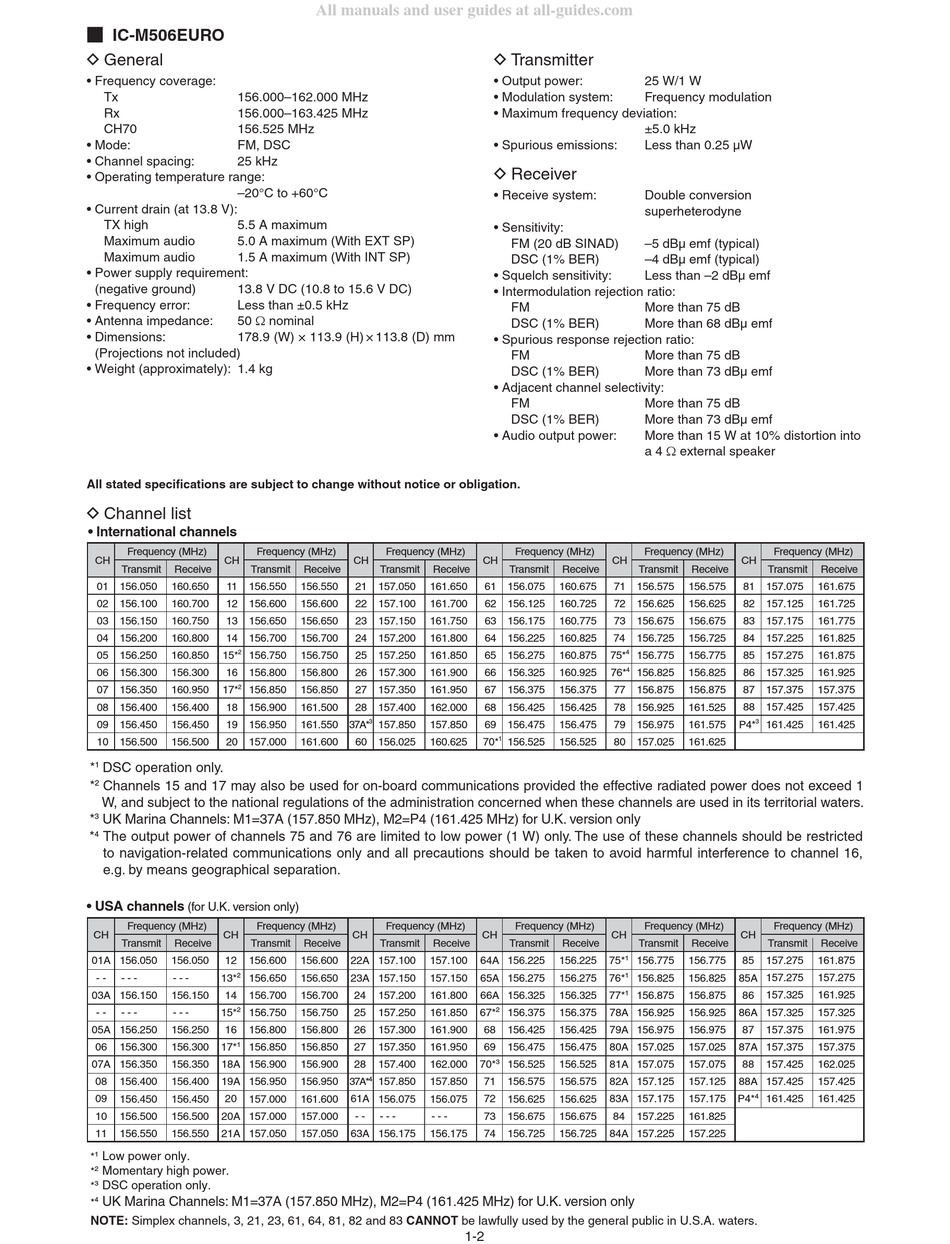

M IC-M506EURO
D
General
• Frequency coverage:
Tx 156.000–162.000 MHz
Rx 156.000–163.425 MHz
CH70 156.525 MHz
• Mode: FM, DSC
• Channel spacing: 25 kHz
• Operating temperature range:
–20°C to +60°C
• Current drain (at 13.8 V):
TX high 5.5 A maximum
Maximum audio 5.0 A maximum (With EXT SP)
Maximum audio 1.5 A maximum (With INT SP)
• Power supply requirement:
(negative ground) 13.8 V DC (10.8 to 15.6 V DC)
• Frequency error: Less than ±0.5 kHz
50  nominal
• Antenna impedance:
• Dimensions: 178.9 (W) × 113.9 (H) × 113.8 (D) mm
(Projections not included)
• Weight (approximately): 1.4 kg
All stated specifi cations are subject to change without notice or obligation.
D
Channel list
• International channels
Frequency (MHz) Frequency (MHz)
CH CH
Transmit Receive Transmit
01 156.050 160.650 11 156.550
02 156.100 160.700 12 156.600
03 156.150 160.750 13 156.650
04 156.200 160.800 14 156.700
2
05 156.250 160.850 15* 156.750
06 156.300 156.300 16 156.800
2
07 156.350 160.950 17* 156.850
08 156.400 156.400 18 156.900
09 156.450 156.450 19 156.950
10 156.500 156.500 20 157.000
* 1 DSC operation only.
* 2 Channels 15 and 17 may also be used for on-board communications provided the effective radiated power does not exceed 1
W, and subject to the national regulations of the administration concerned when these channels are used in its territorial waters.
* 3 UK Marina Channels: M1=37A (157.850 MHz), M2=P4 (161.425 MHz) for U.K. version only
4
* The output power of channels 75 and 76 are limited to low power (1 W) only. The use of these channels should be restricted
to navigation-related communications only and all precautions should be taken to avoid harmful interference to channel 16,
e.g. by means geographical separation.
• USA channels
(for U.K. version only)
Frequency (MHz) Frequency (MHz)
CH CH
Transmit Receive Transmit
01A 156.050 156.050 12 156.600
2
- - - - - - - - 13 * 156.650
03A 156.150 156.150 14 156.700
2
- - - - - - - - 15 * 156.750
05A 156.250 156.250 16 156.800
1
06 156.300 156.300 17 * 156.850
07A 156.350 156.350 18A 156.900
08 156.400 156.400 19A 156.950
09 156.450 156.450 20 157.000
10 156.500 156.500 20A 157.000
11 156.550 156.550 21A 157.050
1 Low power only.
*
2 Momentary high power.
*
3 DSC operation only.
*
UK Marina Channels: M1=37A (157.850 MHz), M2=P4 (161.425 MHz) for U.K. version only
4
*
NOTE: Simplex channels, 3, 21, 23, 61, 64, 81, 82 and 83 CANNOT be lawfully used by the general public in U.S.A. waters.
All manuals and user guides at all-guides.com
Frequency (MHz)
CH
Receive Transmit Receive
156.550 21 157.050 161.650
156.600 22 157.100 161.700
156.650 23 157.150 161.750
156.700 24 157.200 161.800
156.750 25 157.250 161.850
156.800 26 157.300 161.900
156.850 27 157.350 161.950
161.500 28 157.400 162.000
3
161.550 37A* 157.850 157.850
161.600 60 156.025 160.625
Frequency (MHz)
CH
Receive Transmit Receive
156.600 22A 157.100 157.100
156.650 23A 157.150 157.150
156.700 24 157.200 161.800
156.750 25 157.250 161.850
156.800 26 157.300 161.900
156.850 27 157.350 161.950
156.900 28 157.400 162.000
4
156.950 37A* 157.850 157.850
161.600 61A 156.075 156.075
157.000 - - - - - - - -
157.050 63A 156.175 156.175
1-2
D
Transmitter
• Output power: 25 W/1 W
• Modulation system: Frequency modulation
• Maximum frequency deviation:
±5.0 kHz
• Spurious emissions: Less than 0.25 µW
D
Receiver
• Receive system: Double conversion
superheterodyne
• Sensitivity:
FM (20 dB SINAD) –5 dBµ emf (typical)
DSC (1% BER) –4 dBµ emf (typical)
• Squelch sensitivity: Less than –2 dBµ emf
• Intermodulation rejection ratio:
FM More than 75 dB
DSC (1% BER) More than 68 dBµ emf
• Spurious response rejection ratio:
FM More than 75 dB
DSC (1% BER) More than 73 dBµ emf
• Adjacent channel selectivity:
FM More than 75 dB
DSC (1% BER) More than 73 dBµ emf
• Audio output power: More than 15 W at 10% distortion into
a 4  external speaker
Frequency (MHz) Frequency (MHz)
CH CH
Transmit Receive Transmit
61 156.075 160.675 71 156.575
62 156.125 160.725 72 156.625
63 156.175 160.775 73 156.675
64 156.225 160.825 74 156.725
4
65 156.275 160.875 75* 156.775
4
66 156.325 160.925 76* 156.825
67 156.375 156.375 77 156.875
68 156.425 156.425 78 156.925
69 156.475 156.475 79 156.975
1
70* 156.525 156.525 80 157.025
Frequency (MHz) Frequency (MHz)
CH CH
Transmit Receive Transmit
1
64A 156.225 156.225 75 * 156.775
1
65A 156.275 156.275 76 * 156.825
1
66A 156.325 156.325 77 * 156.875
2
67 * 156.375 156.375 78A 156.925
68 156.425 156.425 79A 156.975
157.025
69 156.475 156.475 80A
3
70 * 156.525 156.525 81A 157.075
71 156.575 156.575 82A 157.125
72 156.625 156.625 83A 157.175
73 156.675 156.675 84 157.225
74 156.725 156.725 84A 157.225
Frequency (MHz)
CH
Receive Transmit Receive
156.575 81 157.075 161.675
156.625 82 157.125 161.725
156.675 83 157.175 161.775
156.725 84 157.225 161.825
156.775 85 157.275 161.875
156.825 86 157.325 161.925
156.875 87 157.375 157.375
161.525 88 157.425 157.425
3
161.575 P4* 161.425 161.425
161.625
Frequency (MHz)
CH
Receive Transmit Receive
156.775 85 157.275 161.875
156.825 85A 157.275 157.275
157.325 161.925
156.875 86
156.925 86A 157.325 157.325
156.975 87 157.375 161.975
157.025 157.375 157.375
87A
157.075 88 157.425 162.025
157.125 88A 157.425 157.425
4
157.175 P4 * 161.425 161.425
161.825
157.225
