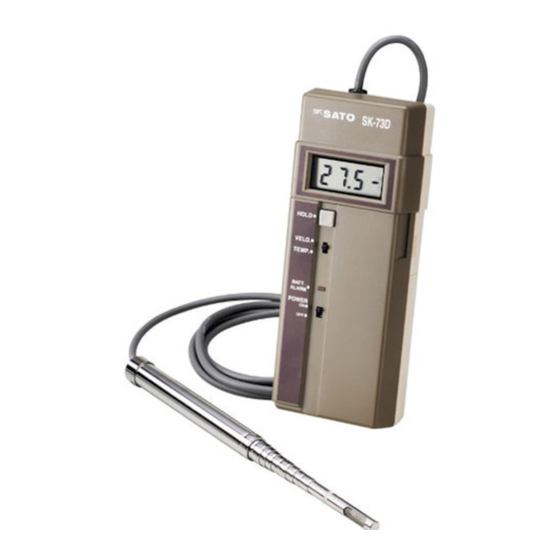

- Page 1 Instruction Manual for No.7693-00 Hot Wire Anemometer Model SK-73D No. 3 Nishi-Fukudacho, Kanda, Chiyodaku, Tokyo 101-0037 Japan URL: http://www.sksato.co.jp/english/ 2011.12...
- Page 2 Thank you for purchasing the No. 7693-00 Hot Wire Anemometer Model SK-73D. This product is designed to measure air speed and temperature. Do not use it for other purposes. Read this manual thouroughly before using the SK-73D. Keep the manual in a safe place for future reference whenever necessary.
- Page 3 3. Name of each section 1) Front view 1. Display (LCD) 2. Hold switch (HOLD) 3. Function Switch (VELO/TEMP) 4. Battery alarm (LED) (BATT, ALARM) 5. Power switch 6. Sensor cord 2) Rear view 7. Label 8. Lid of Battery compartment 3) Probe assembly 9.
- Page 4 4. Operation How to load batteries 1) Place POWER switch in OFF position. 2) Slide and open the lid of battery compartment at the back of instrument and load five batteries (LR6) properly as per instruction. 3) Slide and close the lid of battery compartment. Place POWER switch in ON position and confirm that the battery alarm (LED ) does not light up.
- Page 5 How to measure temperature Temperature will be measured when the function switch is placed in TEMP position. Just after the measurement of air speed, the temperature of air speed sensor will be 100°C or higher since the speed sensor was heated. Start measuring after full stabilization (it takes about 2minutes.) as in the measurement of air speed.
- Page 6 (on charge basis). NB. Never use water or other solvents. 4) Never use SK-73D in the place of condensing and splashing water. It may be causes of the deterioration of electrical insulation or malfunction of sensor. Caution in general 1) Never put sensor probe into water or other solvents.
- Page 7 6. Specifications Name No. 7693-00 Handy Hot Wire Anemometer Model SK-73D Measuring object Clean air in normal humidity and pressure Air speed : 0 to 30m/s Measuring range Temperature : 0 to +80°C Air speed : ±(3% F.S. +1 digit) m/s...
- Page 8 TOKYO. JAPAN No. 3 Nishi Fukudacho, Kanda, Chiyodaku, Tokyo, 101-0037 JAPAN TEL: +81 (0)3-3254-8117 FAX: +81 (0)3-3254-8123 E-mail: query@sksato.co.jp http://www.sksato.co.jp/english...
