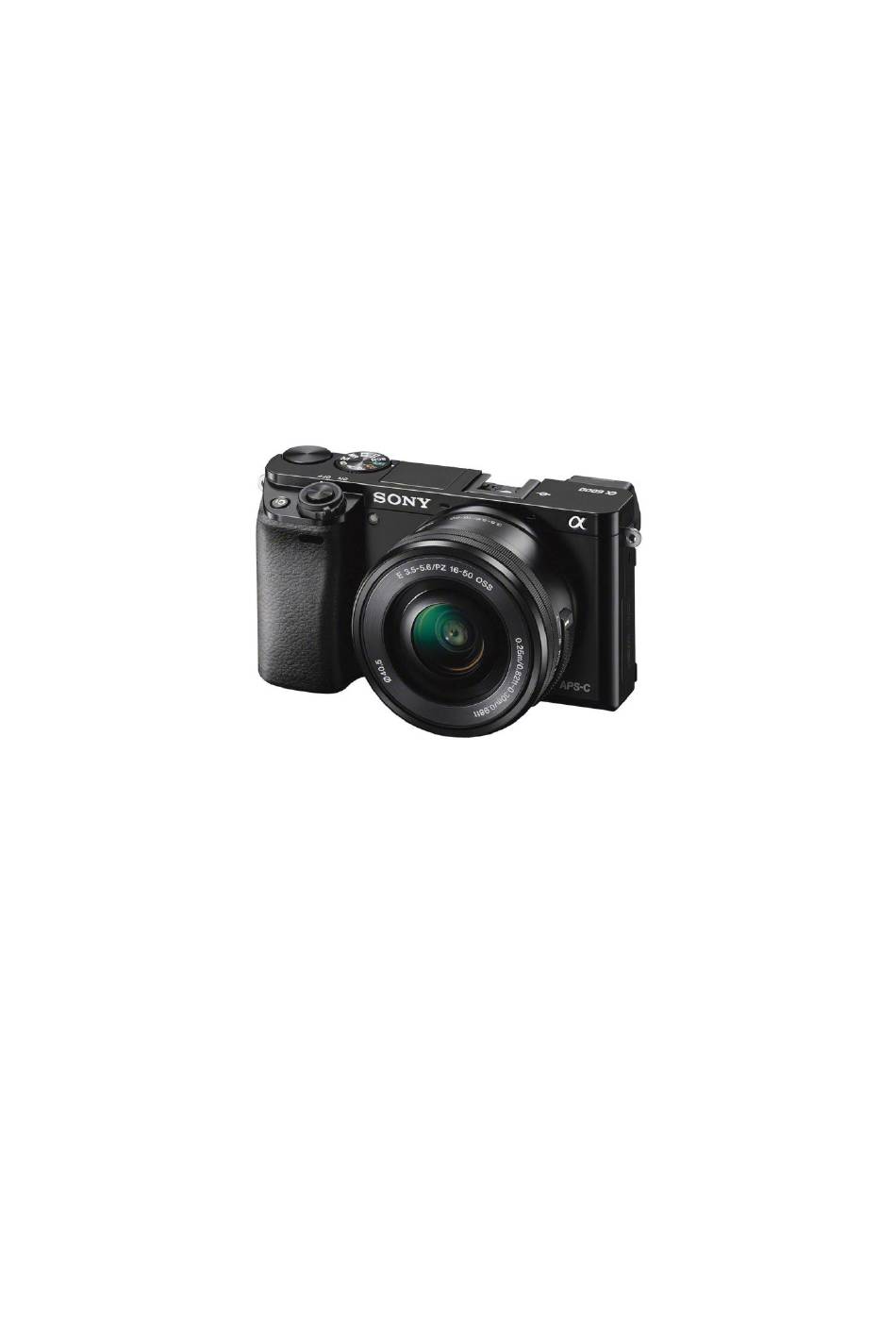

Camera Specifications • Sensor APS-C type (23.5 x 15.6 mm) • NUMBER OF PIXELS (EFFECTIVE) 24.3 MP • IMAGE SENSOR ASPECT RATIO 3:2 • ISO SENSITIVITY ISO 100-25600 • SHUTTER SPEED Still images:1/4000 to 30 sec, Bulb, Movies: 1/4000 to ¼ (1/3steps) up to 1/60 in AUTO mode (up to 1/30 in Auto slow shutter mode)
SETTING THE CAMERA ➢ Attach the filter on the lens by gently rotating the filter ring after removing the lens cover ➢ Insert the battery in to the camera ➢ Mount the camera on the tripod/ quadpod ➢ Turn on the IR light and point it on the PV module ➢...
Page 4
Adjust the camera parameters Set the shooting mode to M (Manual mode). ➢ Exposure time 20-30 sec MENU → (Camera Settings) → [Exposure step] → exposure time. ➢ ISO 800-1600 (Sensitivity to light is expressed by the ISO number, the larger the number, the higher the sensitivity.) MENU →...
If PlayMemories Mobile is already installed on your smartphone, be sure to update it to the latest version. For details on PlayMemories Mobile, refer to the support page (http://www.sony.net/pmm/). Connecting an Android smartphone to this product 1. Launch PlayMemories Mobile on your smartphone.
Page 6
Connecting the product to an iPhone or iPad 1. Select the model name of this product (DIRECT-xxxx: xxxx) on the Wi-Fi setting screen of your iPhone or iPad. 2. Input the password displayed on this product. The iPhone or iPad is connected to the product. 3.
