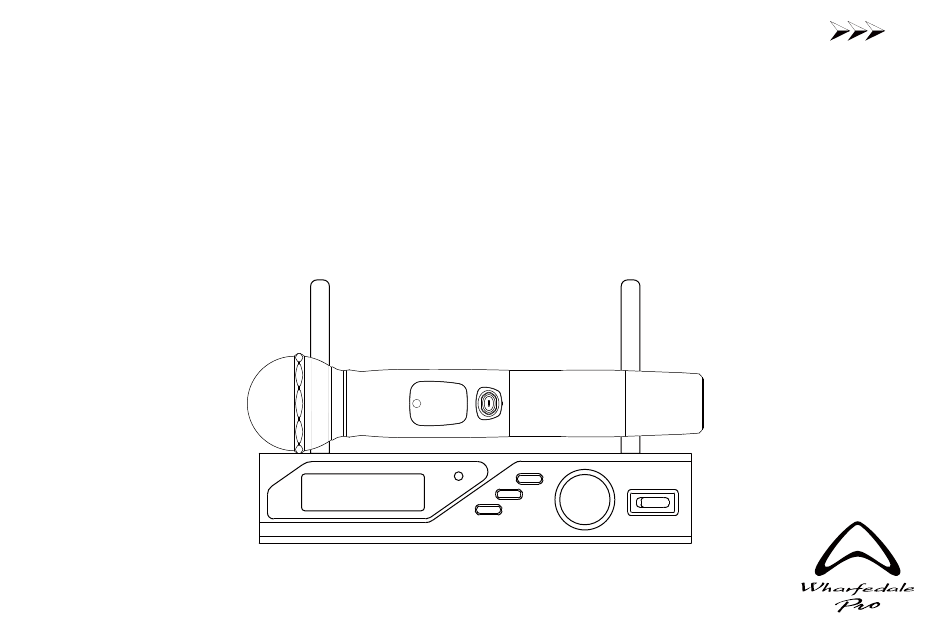

- Page 1 Wharfedale Pro AEROLINE VOCAL User Manual AEROLINE VOCAL UHF HANDHELD WIRELESS MICROPHONE SYSTEM 650-700 MHz version 863-865 MHz version WWW.WHARFEDALEPRO.COM...
-
Page 3: Safety And Warning
It uses UHF bands for wireless transmission and the audio path has been refined to deliver the highest possible audio quality. To get the most from your Aeroline Vocal, please read this manual carefully before use and keep it in a safe place for future reference Aeroline accessories, such as the antennae and power supply, are specific to Aeroline. - Page 4 Receiver LCD display Receiver LCD display 1 - Channel and other functions display. 2 - Shows the strength of the received audio signal. 3 - Shows the strength of the wireless signal received from the transmitter (mic). 4 - Handheld microphone battery indicator. 5 - Mute indicator (including no signal received).
- Page 5 The microphone (transmitter) 1 - Mesh grille with a protective sponge inside. 2 - Infrared frequency window. 3 - Backlit LCD display. The backlight goes off after about 2 seconds. 4 - Power switch button. (Short press about 0.5 second - power on. Long press for about 2 seconds - power off) 5 - Lower tube body.
-
Page 6: Receiver Connection
Before starting the first time, please turn down all volumes to minimum. For shutdown always turn the system off in this order : Amplifier - Preamp - Receiver. 6 - If there is a possible fault please see the troubleshooting guide in this user manual or contact your Wharfedale Pro retailer or distributor. - Page 7 Receiver button functions 1 - Frequency setting / module setting 2 - Frequency adjust / up button 3 - Key Lock / down button It is recommended that the receiver is locked after completing the setup to prevent others from changing it. Locking and unlocking Channel adjustment setting In the unlocked state, press the “...
-
Page 8: System Notes
Ir syncing When the receiver completes the channel setting, it needs to update the transmitter's frequency to make the system work normally. With the buttons unlocked, give a short press on the “ “ button. The receiver's infrared frequency light is on. The display only shows “F----”... -
Page 9: Troubleshooting
TROUBLE SHOOTING Fault Status Solution Is the unit powered on? Turn on the receiver and mic Audio connections Check audio is connected Frequency tuning Perform infrared frequency tuning The transmitter won’t turn on Change the batteries in the mic NO SOUND Transmitter display does not Change the batteries in the mic work properly... -
Page 10: Specifications
SPECIFICATIONS Included items AEROLINE VOCAL AEROLINE VOCAL Working frequency: 863-865 MHz 650-700 MHz Modulation mode: Channels: Operating distance: about 120 m (line of sight) about 120 m (line of sight) RF generator mode: PLL Frequency Synthesizer PLL Frequency Synthesizer RF bandwidth:... - Page 12 Wharfedale Pro products are warranted of manufacturing or material defects for a period of three years from the original date of purchase. In the event of malfunction, contact your authorised Wharfedale Pro dealer or distributor for information. Please be aware that the warranty details may differ from country to country. Contact your dealer or distributor for information (available at www.wharfedalepro.com).
