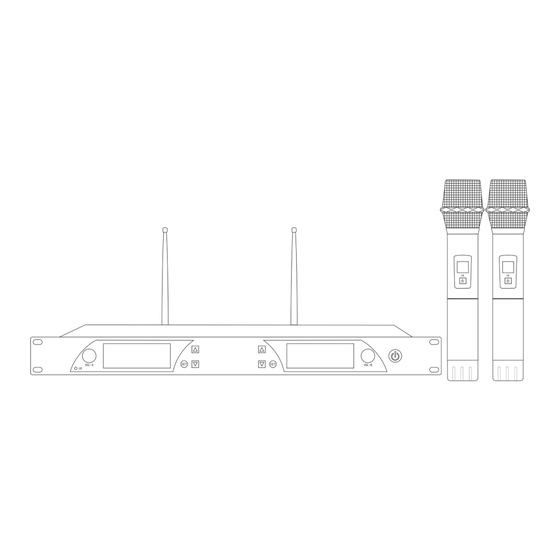

- Page 1 Wharfedale Pro WF-300 User Manual WF-300 Wireless Microphone System with internal EQ USER MANUAL WWW.WHARFEDALEPRO.COM...
-
Page 2: Table Of Contents
CONTENTS WARNINGS INTRODUCTION / FEATURES OPERATIONAL ADVICE SYNCHRONIZING FREQUENCIES LOCK / UNLOCK DUAL CHANNEL RECEIVER FEATURES TRANSMITTER / MICROPHONE FEATURES EQ MODES GETTING THE BEST FROM THE SYSTEM SPECIFICATIONS... -
Page 3: Warnings
Do not install near heat sources such as radiators, heat registers, stoves or any other apparatus that produces heat (for example lighting systems and ampli ers) Use only accessories speci ed or supplied by Wharfedale Pro Use caution with placement and operation of this product. Permanent hearing damage can be caused by prolonged exposure to excessive sound pressure levels Refer all servicing to qualified professionals. -
Page 4: Introduction / Features
WF-300 range is over 100m 2 - Audio quality WF-300 features 5 specially tuned EQ settings embedded inside its microphones. These allow the user to adjust the EQ curve of the mics to suit the character of their voice. This makes using the distance. -
Page 5: Operational Advice
If you encounter any problems please consult professional technicians or contact your dealer. After use, turn down and turn o the power of your audio system. Then o the power of the WF-300 transmitter (mic) & receiver (rack). -
Page 6: Dual Channel Receiver Features
1 - Infrared IR window: To transmit infrared signal to the transmitter (microphone). 2 - Volume 3 - LCD display: Channel, mute, frequency, radio frequency, etc. 4 - Three function keys used for synchronizing frequencies between the mic and receiver. 5 - Power Switch: Press for 3 seconds to turn ON or OFF the unit. -
Page 7: Eq Modes
EQ MODES Inside the microphone are 5 unique EQ settings. These settings will suit many di erent types of voice their performance. Which one is best ? You decide! EQ 1 Mode - Normal EQ 2 Mode - Boost EQ 3 Mode - MID BAS EQ 4 Mode - Voice EQ 5 Mode - Pop GETTING THE BEST FROM THE SYSTEM... -
Page 8: Specifications
SPECIFICATIONS System WF-300 Working frequency 600-690MHz or 863-865MHz Model Dependant Modulation mode broadband FM Channels 2x100 Channel frequency 250KHz Frequency stability 0.005% Dynamic bound 100dB Maximum excursion 45KHz Frequency response 60Hz-18KHz (3dB) >105dB T.H.D 0.5% Operation distance about 100m (no interruption) - Page 12 WHARFEDALE PRO LIMITED WARRANTY Wharfedale Pro products are warranted of manufacturing or material defects for a period of one year from the original date of purchase. In the event of malfunction, contact your authorized Wharfedale Pro dealer or distributor for information.
