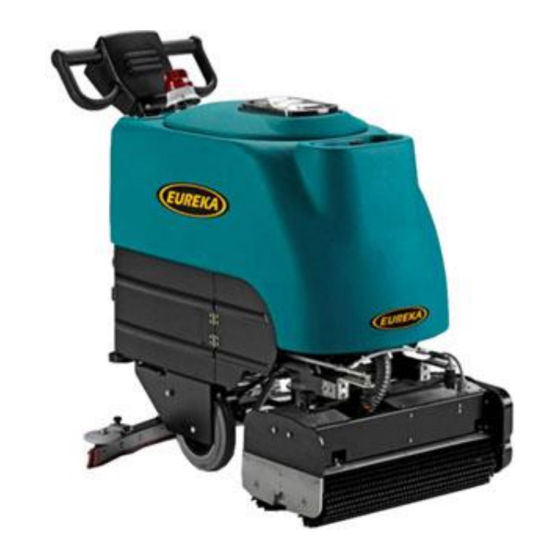

Eureka EC52 Operator's Manual

BEFORE USE
Check brushes
Check recovery tank is empty and solution tank is full
Check filter
OPERATION
Step 1 - DRY PHASE
Fit GREY brushes
Fit the external vacuum cleaner hose to the escalator machine
Ensure the water is switched OFF
FIT GREY BRUSHES
Begin by cleaning the right side of the escalator first. Switch the brushes ON and carefully manoeuvre the
machine onto the escalator with the steps moving towards you and apply the BRAKE (be extra careful if
you are cleaning at the top of the escalator as the machine is moving away from you). The dry phase
should take approximately 10 minutes (you should notice a significant difference very quickly). Now you
must swivel the brushes in order to clean the other side of the escalator. There is a BLACK knob located
on the right hand side of the brush container, swivel the full head of the machine and secure the BLACK
knob into place (ensure it is properly secure otherwise you could cause damage to the escalator). When
you have completed the dry phase on both sides you are ready to move onto the WET PHASE
EUREKA EC52 ESCALATOR
CLEANER OPERATOR GUIDE
This notice serves as a quick
guide to important points to
remember
The machine should be used by
authorised trained operators only
All operators must read &
understand the operator manual
prior to use
The EC52 is stationery on the first step of the escalator and roller
brushes clean each step in turn as the escalator moves.
Once all steps have been cleaned on that side, the brush head of the
EC52 is swivelled around to repeat the process on the other side of the
the dry phase (to remove dust, dirt and debris)
REMOVE SIDE PANEL
CALL 0141 647 4200 FOR ASSISTANCE
HOW DOES IT WORK?
steps. Cleaning is carried out in two parts,
and the wet phase (to clean and dry)
EC52
SCAN ME
BLUE hose
ATTACH BLUE HOSE
