Summary of Contents for Kidde 2030-DCR

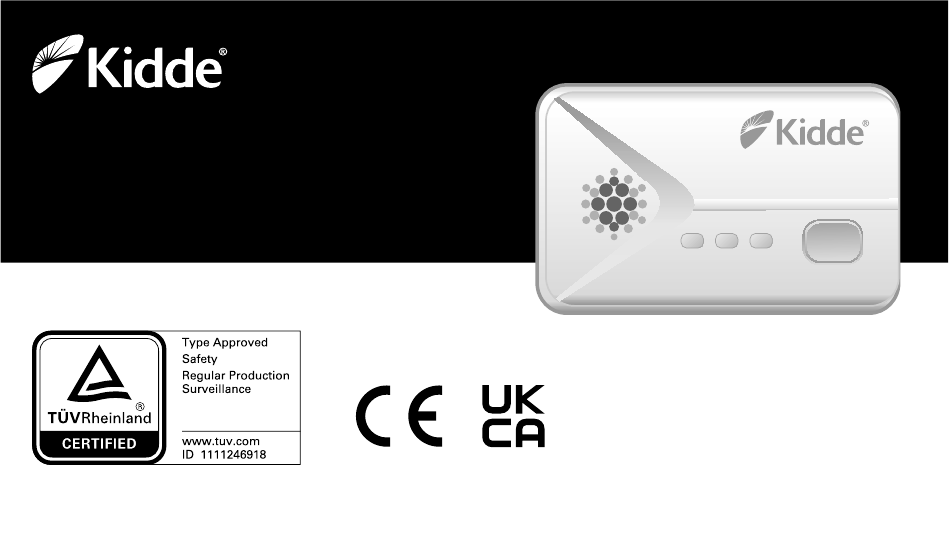

- Page 1 Battery Carbon Monoxide Alarm CARBON MONOXIDE ALARM User and Installer Guide Model: 2030-DCR Move to Alarm Operate Fault Fresh Air Quick Start Instructions included TEST WEEKLY / RESET Model: 2030-DCR at the back of this User Guide EN 50291-1:2018 P/N: 2030-7202-01...
- Page 2 Thank You for Purchasing this Kidde Alarm Powered by two AA batteries, this model includes a Reset function to temporarily silence nuisance alarms. Teach children how to respond to the alarm and that they should never play with the unit. This alarm is designed to detect carbon monoxide from any source of combustion in a residential environment.
-
Page 3: Table Of Contents
Contents 1. Carbon Monoxide Alarm: What To Do When the Alarm Sounds................4 2. Other Alarm Visual and Audible Indicators......................5 3. Troubleshooting Guide............................6 4. Introduction, Product Features and Specifications....................7 5. Limitations of CO Alarms............................9 6. Recommended Locations for Alarms........................11 7. -
Page 4: Carbon Monoxide Alarm: What To Do When The Alarm Sounds
1. Carbon Monoxide Alarm: What To Do When the Alarm Sounds The carbon monoxide (CO) alarm pattern is four quick beeps repeating every 5 seconds. The red LED blinks in sync with the beep pattern. WARNING: CARBON MONOXIDE ALARM ACTIVATION INDICATES THE PRESENCE OF CARBON MONOXIDE (CO) AT HIGH CONCENTRATIONS WHICH CAN KILL YOU. -
Page 5: Other Alarm Visual And Audible Indicators
2. Other Alarm Visual and Audible Indicators Operational Mode Visual Indications Audible Indications Action/Note: Normal (standby) Green LED blinks approx every 60 sec. Test (button press when no Green and amber LED’s illuminate. • 4 loud pulses, a pause, Perform test button press once a alarm condition is present) Red LED blinks in sync with beep pattern. -
Page 6: Troubleshooting Guide
3. Troubleshooting Guide Trouble Condition Visual Indications Audible Indications Action: Low Battery Amber LED blinks every Chirp every 60 sec. * Push test button once to silence for 24 hrs. 60 sec. Note: 30 days after Low Battery begins, the notifi... -
Page 7: Introduction, Product Features And Specifications
4. Introduction, Product Features and Specifications Introduction This alarm detects carbon monoxide using an electrochemical sensor. Many times throughout this User Guide, we will refer to Carbon Monoxide as “CO.” Ten (10) years after the unit was installed, this unit will automatically alert you that it is time to replace the unit. This is called “End of Unit Life”... - Page 8 Product Features CARBON MONOXIDE ALARM Test / Reset Move to Alarm Operate Fault Button Fresh Air TEST WEEKLY / RESET Model: 2030-DCR Amber, Fault LED Red, Green, Alarm LED Power LED Model: 2030-DCR...
-
Page 9: Limitations Of Co Alarms
5. Limitations of CO Alarms WARNING: PLEASE READ CAREFULLY AND THOROUGHLY This alarm is not intended to alert hearing impaired individuals. LIMITATIONS OF CO ALARMS • IMPORTANT: This alarm is designed to detect carbon monoxide gas from ANY source of combustion. It is NOT designed to detect any other gas. - Page 10 WARNING: THIS DEVICE IS DESIGNED TO PROTECT INDIVIDUALS FROM ACUTE EFFECTS OF CARBON MONOXIDE EXPOSURE. IT MAY NOT FULLY SAFEGUARD INDIVIDUALS WITH SPECIFIC MEDICAL CONDITIONS. IF IN DOUBT, CONSULT A MEDICAL PRACTITIONER. INDIVIDUALS WITH MEDICAL PROBLEMS MAY CONSIDER USING WARNING DEVICES WHICH PROVIDE AUDIBLE AND VISUAL SIGNALS FOR CARBON MONOXIDE CONCENTRATIONS UNDER 30 PPM.
-
Page 11: Recommended Locations For Alarms
6. Recommended Locations for CO Alarms Note: CO alarms should be installed following the guidance of relevant local standards, such as EN50292. • Whether the alarm is wall-mounted or ceiling mounted, place the alarm a horizontal distance of between 1 metre and 3 metres from a fuel burning appliance. •... -
Page 12: Locations To Avoid
7. Locations to Avoid • In the garage. Products of combustion are present when you start your motor vehicle. • Do not install alarms adjacent to, or directly above, heaters or air-conditioning vents. • In very humid areas (above 90% RH, non-condensing), such as bathrooms and shower rooms. Do not install directly above a sink, or near dishwashers or washing machines. -
Page 13: Installation
8. Installation / Activation CAUTION: THIS UNIT IS SEALED. THE COVER IS NOT REMOVABLE! NOTE: YOUR CO ALARM MUST BE INSTALLED BY A COMPETENT PERSON, AND IS TO BE INSTALLED ACCORDING TO THESE INSTRUCTIONS. After selecting the proper alarm location as described in the “Recommended Locations for CO Alarms” section, you may choose either a wall mounting or free-standing installation. -
Page 14: Operation And Testing
9. Operation and Testing Operation The alarm is operating once it is activated and testing is complete (see “TESTING” below). When CO is detected, the unit sounds a loud alarm. See Section 1 for alarm signal descriptions. In high levels of CO, the unit will go into alarm in a shorter period of time than at low levels of CO. - Page 15 Testing Test your alarm weekly, or after returning from a vacation or absence, by pressing and releasing the button quickly. A quick beep will confirm the button has been pushed followed by the test sequence. See Other Alarm Visual and Audible Indicators table.
-
Page 16: Recognizing Nuisance Alarms
10. Recognizing Nuisance Alarms Carbon Monoxide (CO) Nuisance RESET: Pushing the test / reset button during CO alarm allows the unit to reset calculations and double check for the presence of CO. If the unit re-alarms, it is sensing high levels of CO which can quickly become a dangerous situation. Move to fresh air and call 0800 111 999. -
Page 17: Battery
11. Battery This alarm is powered by two AA batteries. Under normal operating conditions, the batteries will last a minimum of one year. NOTE: Constant exposures to extreme temperatures and humidities may affect battery life. WARNING: DO NOT ATTEMPT TO OPEN THE ALARM FOR ANY REASON! DO NOT TRY TO REPAIR THE ALARM YOURSELF. - Page 18 Replace battery Recommended Batteries. Slide alarm from back-plate. Duracell MN1500, MX1500 Insert 2 x replacement ‘AA’ batteries Gold Peak 15A Golden Power GLR6A (noting polarity – see sketch) Energizer E91 Replace back-plate and test the alarm NOTE: Do not use Lithium batteries in this unit. These batteries can be purchased from your local retailer.
-
Page 19: General Carbon Monoxide (Co) Information
12. General Carbon Monoxide (CO) Information What is Carbon Monoxide? Carbon monoxide (CO) is a highly poisonous gas with no taste, colour or smell. Potential Sources of CO This CO alarm is not a substitute for proper installation, use and maintenance of fuel burning appliances •... - Page 20 NOTE: Young children, elderly and pets are more susceptible to the dangers of CO. NOTE: Your Kidde alarm is designed to detect CO gas. It is not designed to detect other gas such as natural gas. NOTE: This product is intended for use in ordinary family homes. It is not designed to measure compliance with occupational safety and the HSE.
- Page 21 IMPORTANT: Ensure that all family members are familiar with the symptoms of CO poisoning and how your alarm works. To be safe, know the possible sources of CO in your home. Keep fuel burning appliances and their chimneys and vents in good working condition. Learn the early symptoms of exposure, and if you suspect CO poisoning, move outside to fresh air and get emergency help.
-
Page 22: Cleaning Your Alarm
13. Cleaning Your Alarm Your Alarm Should be Cleaned at Least Once a Year You can clean the interior of your alarm by using compressed air or a vacuum cleaner hose and blowing or vacuuming through the openings around the perimeter of the alarm. The outside of the alarm can be wiped with a damp cloth. -
Page 23: Service And Warranty
The obligation of KIDDE SAFETY EUROPE LTD under this warranty is limited to repairing or re-... -
Page 24: Quick Start Instructions
Quick Start Instructions Model: 2030-DCR CARBON MONOXIDE ALARM Move to Alarm Operate Fault Fresh Air TEST WEEKLY / RESET Model: 2030-DCR CARBON MONOXIDE ALARM Move to Alarm Operate Fault Fresh Air TEST WEEKLY Model: 2030-DCR / RESET... - Page 25 (60 sec) (60 sec) CARBON MONOXIDE ALARM Move to Alarm Operate Fault Fresh Air TEST/ RESET Model: 2030-DCR CARBON MONOXIDE ALARM BEEP - BEEP - BEEP - BEEP BEEP - BEEP - BEEP - BEEP BEEP Move to Alarm Operate Fault...
- Page 26 Kidde Helpline (UK) 0800 917 0722 / (Ireland) 1800 818 601 Emergency Numbers: Gas Emergency Services 0800 111 999 HETAS (Solid Fuel Emergency) 0845 634 5626 Oftec (oil) 0845 658 5080 © 2021 Carrier. All rights reserved. Manufactured By: Walter Kidde Portable Equipment Inc.
