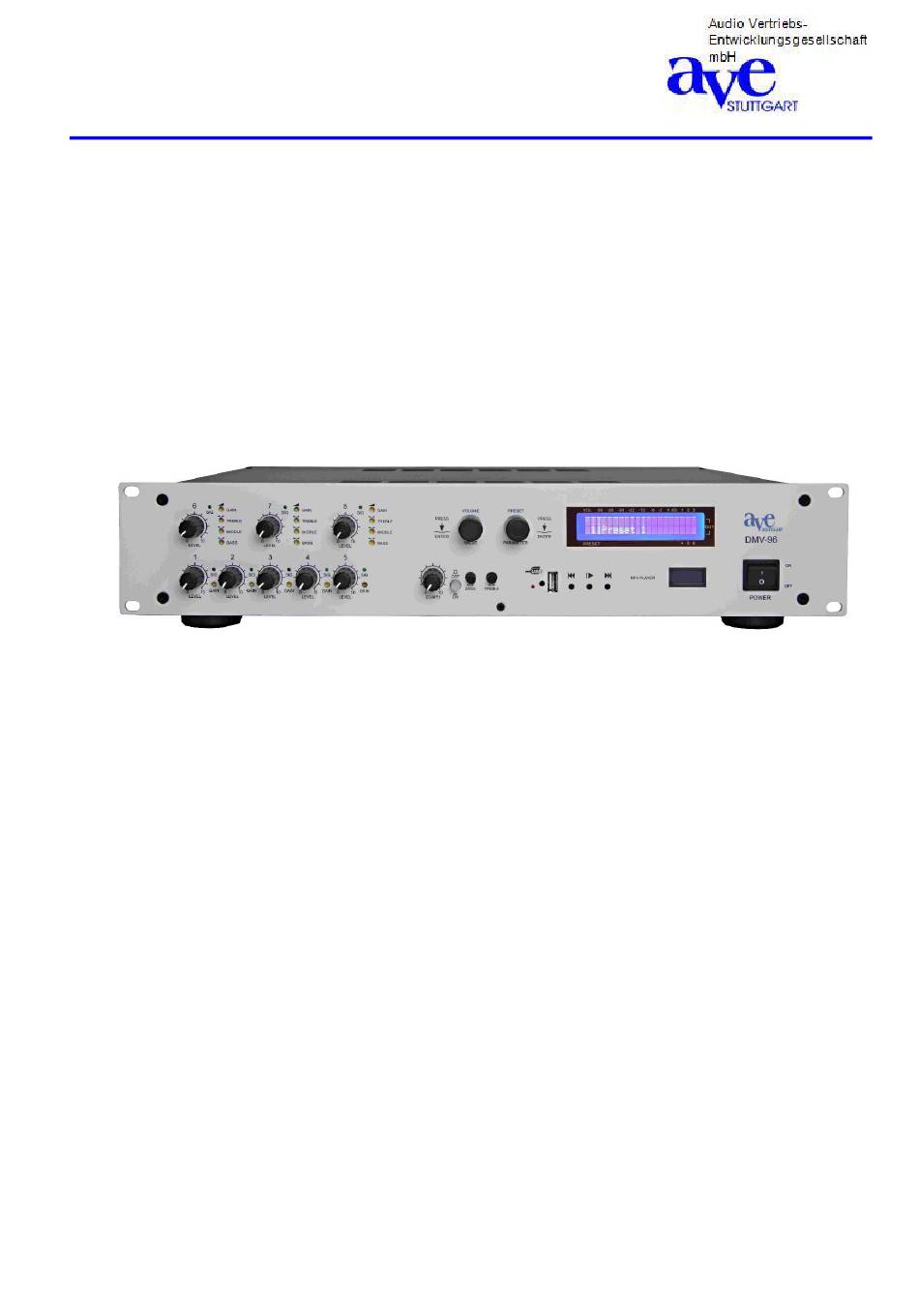

- Page 1 DMV-96 Digital automatic mixing amplifier with 8 mic/line inputs and 6 outputs User guide User guide DMV-96 July 2019...
-
Page 2: Table Of Contents
Table of contents Introductions ............................3 Safety instructions ........................... 3 Scope of delivery ............................. 3 Operation of the DMV-96 ........................4 Technical specifications .......................... 6 Notice ............................... 9 User guide DMV-96 page 2... -
Page 3: Introductions
The DMV-96 comes with an approved power cable. At one end of this cable is a three-pronged AC power connector (IEC plug) and at the other end of a CE-standard-compliant Schuko-plug for connection to a 230 V / 50 Hz AC voltage source. -
Page 4: Operation Of The Dmv-96
Operation of the DMV-96 Input Level 1 – 5 By tuning the volume control of the 5 digital inputs the volume will be increased or decreased. Input Level 6 – 8 By tuning the volume control of the 3 analog inputs the volume will be increased or decreased. The 3 analog inputs will be allocated to the 6. - Page 5 Fuse 6,3 A Power outputs 8 inputs 100V-70V-50V-4Ω DIP switch Mic-Lo, Mic-Hi, Line, +48 V Output Rec Control +6 dB Input CD DIP switch for Input sensitivity ON-OUT Outputs 1-6 DIRECT Control CD for output input sensitivity User guide DMV-96 page 5...
-
Page 6: Technical Specifications
-93 dB (1 kHz, -1 dB Oversampling factor 512 Fs Digital Signal Processor DSP 32-bit / 40-bit, Floating point 150 MHz - 6,6 ns cycling rate Super Harvard Architecture 900 MFLOPS 1Mbits SRAM, two-channel User guide DMV-96 page 6... - Page 7 Limiter Threshold fixed at 0 dB Delay [0 m ÷ 35 m], [0 ms ÷ 100 ms] Phase control [0°, 180°] Output level [-100 dB ÷ 10 dB] Master level [-100 dB ÷ 10 dB] User guide DMV-96 page 7...
- Page 8 340 mm + 60 mm connector Weight 5.6 kg (1x480W) 6.8 kg (2x320W and 2x480W) 12 kg (1x150W and 1x240W) 13.5 kg (2x150W) Temperature range Indoor 0°C to 40°C (32°F to 102°F) Certifications AES48-2005 grounding scheme 2002/95/EC User guide DMV-96 page 8...
-
Page 9: Notice
