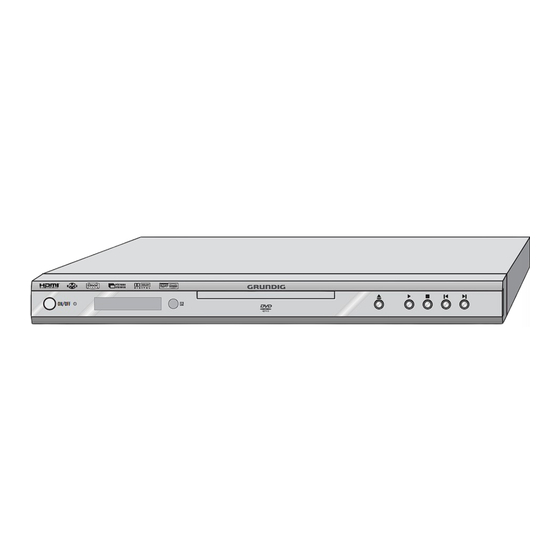

- Page 1 GDP 3564,GB 26.10.2005 12:48 Uhr Seite 1 DVD-PLAYER GDP 3564 ENGLISH...
-
Page 2: Table Of Contents
GDP 3564,GB 26.10.2005 12:48 Uhr CONTENTS DVD Player GDP 3564 Special features of your DVD player Scope of delivery Disc formats Set-up and safety Overview The front of the DVD player The back of the DVD player The remote control... - Page 3 GDP 3564,GB 26.10.2005 12:48 Uhr CONTENTS 29-33 Playback audio/video files Features of the Nero Digital CD Features of the DivX Features of the MP3 CD 31-33 Playback 34-35 Picture CD playback Features of the JPEG CD Features of the KODAK picture CD...
-
Page 4: Dvd Player Gdp 3564
EURO-AV (Scart) cable USER MANUAL Operating manual Your DVD player can play back CD R, CD RW, VCD 2.0, Super VCD, DVD R, DVD RW discs. Due to the difference in quality of the recording media and the quality of the recording itself, it can occasionally happen that a home-made DVD or CD cannot be read. -
Page 5: Set-Up And Safety
DVD. The DVD player is designed for use in dry rooms. If you do use it in the open, please ensure that it is protected from moisture, such as rain or water ON/OFF splashes. -
Page 6: Overview
ON/OFF ON/OFF Seite 6 ____________________________________________ Switches the DVD player to stand-by and off again. Switching off the DVD player does not mean it is discon- nected from the mains. Stand-by indicator. Display. Compartment for DVDs/CDs. Opens and closes the disc compartment. -
Page 7: The Back Of The Dvd Player
GDP 3564,GB 26.10.2005 12:49 Uhr OVERVIEW The back of the DVD player Pb/Cb Pr/Cr VIDEO OUT S VIDEO OUT HDMI OUT AUDIO OUT DIGITAL AUDIO OUT VIDEO OUT S VIDEO OUT Y Pb/Cb Pr/Cr R AUDIO OUT L HDMI DIGITAL AUDIO OUT... -
Page 8: The Remote Control
Selects various camera angles* for certain scenes or passages on the DVD during playback. Selects the RANDOM PLAY function in STOP mode. Mutes the sound on a GRUNDIG television. Switches up one menu level; When stopped: switches the picture signal between ”Interlace mode”, “S-Video”, “RGB”... - Page 9 DVD playback. Switches between the various sound formats. Switches the remote controller between controlling your DVD player and controlling your GRUNDIG television. The possibilities of this are described on page 44. For selecting and displaying subtitles* of the DVD during playback.
-
Page 10: Connection And Preparation
”Selecting the video output socket (EURO AV/RGB or S-video)” section on page 18. If the DVD player is connected to a television set or a flat screen with a 16:9 format, observe the settings described in the ”Selecting the television format” section on page 19. - Page 11 AUDIO OUT DIGITAL AUDIO OUT Plug a standard HDMI cable into the »HDMI« socket of the DVD player and into the corresponding socket of the television or flat screen (audio/video signal). Note: Only for testing, open the disc compartment with » « on the DVD Player and enter »3308«...
- Page 12 AUDIO OUT DIGITAL AUDIO OUT Plug a standard adapter cable into the »HDMI« socket of the DVD player and into the corresponding socket of the television or flat screen (digital video signal). Plug standard cinch cables into the of the DVD player and the appropriate sockets (AUDIO IN) on the television or flat screen (audio signal);...
- Page 13 Before you first switch on the device, please check whether your television, flat screen or projector is suitable for this use. GRUNDIG accepts no liability for damage resulting from failure to observe this. Notes: If you connect the DVD player using the »Y«, »Pb/Cb« and »Pr/Cr«...
- Page 14 AUDIO OUT DIGITAL AUDIO OUT Plug the EURO-AV cable supplied into the socket of the DVD player and into the corresponding socket of the television or flat screen. Connection using a Y/C (S-VIDEO) cable or a cinch cable (picture signal) and a cinch cable...
-
Page 15: Connecting A Multi-Channel Amplifier Or Digital Two-Channel Audio System
AUDIO OUT DIGITAL AUDIO OUT Plug a standard cinch cable into the OUT« socket on the DVD player and into the appropriate socket on the digital multi-channel amplifier; remove the protective cap of the optical digital output and plug an optical digital cable into the digital output AUDIO OUT«... -
Page 16: Connecting An Audio System With Analogue Two-Channel Stereo Sound
EURO AV HDMI OUT AUDIO OUT DIGITAL AUDIO OUT Plug a standard cinch cable into the socket of the DVD player and into the corresponding socket on the audio system. Caution: Do not connect the »R AUDIO OUT player to the PHONO (record player) input socket on the audio system. -
Page 17: Getting Started
Press »i« to conclude the setting. Setting the TV standard The colour norm of the DVD player's screen menus has to be adapt- ed to the format of your television or flat screen. Select »NTSC« for televisions with the NTSC standard, or »PAL« for those with the PAL standard. - Page 18 _______________________________ Selecting the video output socket (EURO AV/RGB or S-Video) The video output of your DVD player has been set at the factory to »RGB«. When you connect your DVD-Player to the television, flat screen or projector using a Y/C cable (»S-VIDEO...
- Page 19 GDP 3564,GB 26.10.2005 12:49 Uhr GETTING STARTED Installation Picture Sound Child Lock TV Format 4:3 LB TV Standard HDMI Resolution 576p 720p Video Output 1080i HD JPEG Mode HD JPEG 576p JPEG Interval 5 Seconds Installation Picture Sound Child Lock...
-
Page 20: Before Playback
Switch on the DVD player by pressing »ON/OFF« on the device. – Display on the DVD player »{ O d I S C «, on the television – »No Disc«. Press » « on the DVD player, or press and hold down »... -
Page 21: Dvd Playback
DVD player is 4. DVDs may also be given a supplementary regional code. If you insert a DVD with a code different to that of the DVD player, a refer- ence to the regional code appears on the television screen. The DVD player will not be able to play back the DVD. -
Page 22: Selecting Titles Or Chapters
»1 … 0« and confirm with »OK«. – The DVD player searches for the selected time of the disc. – The DVD player searches for the time on the disc; move the bookmark to the title with »s«, enter the desired title with »1 …... -
Page 23: Calling Up Information
To select the next chapter, press »6« during playback. To select the previous chapter, press »5« during playback. – The DVD player locates the chapter and starts playback. You can call up information on the title, chapter and playing time for display on the screen. -
Page 24: Additional Playback Functions
GDP 3564,GB 26.10.2005 12:49 Uhr DVD PLAYBACK Additional playback functions Play & & Pause Step II Seite 24 ___________________________________ Notes: The sound is muted during the “Frame search”, “Slow motion” and “Freeze-frame” functions. Depending on the DVD, some functions cannot be selected. - Page 25 GDP 3564,GB 26.10.2005 12:49 Uhr DVD PLAYBACK 1 Ch Ger 1/21 Eng Seite 25 ___________________________________ Enlarging the picture and moving screen sections (Zoom) During playback or pause, press »v« repeatedly. – Display: » 1«, » 2«, » 3«, » ture is enlarged.
-
Page 26: Repeat Functions
GDP 3564,GB 26.10.2005 12:49 Uhr DVD PLAYBACK Repeat functions Rep A – Rep A – B Repeat chapter Repeat title Selecting and playing scenes Bookmark 1 --:--:-- Bookmark 2 --:--:-- Seite 26 ___________________________________ Repeating a selected scene (A-B Repeat) You can mark the start and end of a scene, this is then played back repeatedly. -
Page 27: Vcd/Vcd Features
You can control and direct playback of the S-VCD/VCD using the menu of the DVD player on the television screen. You cannot select some of the functions on the DVD player (slow motion, camera angle, marking scenes) when you are playing an S- VCD/VCD. -
Page 28: Playing Back A Track
GDP 3564,GB 26.10.2005 12:49 Uhr S-VCD/VCD PLAYBACK Playing back a track Play Pause Step II Stop Selecting a track Next Frame search Ending playback Stop Seite 28 After the disc compartment closes and the S-VCD/VCD is scanned, playback starts automatically. -
Page 29: Playback Audio/Video Files
© Video is an encoder/decoder, based on the MPEG-4 compression system, which is used to encrypt and display compressed video data. This enables the DVD player to play back videos compressed in the DivX © format. This results in playback quality with less artefacts and higher compression. -
Page 30: Features Of The Mp3 Cd
MP3 files can be downloaded from the Internet and then burned onto a CD-ROM disc. Your DVD player can read the ID3 tag from the file hea- der, which contains information on title and artist, and display this in the info menu/status display. -
Page 31: Playback
GDP 3564,GB 26.10.2005 12:49 Uhr PLAYBACK AUDIO/VIDEO FILES Playback Play II Pause Play DivX 1/10 00:01:20 00:00:48 Video Codec DivX 5.x 500x400 25fps Audio Codec 1/1 PCM 48kHz 2Ch Next Back Random On * Depends on the DVD in use... - Page 32 GDP 3564,GB 26.10.2005 12:49 Uhr PLAYBACK AUDIO/VIDEO FILES II Pause Step II & Play * Depends on the DVD in use Seite 32 Frame search © (Nero Digital /DivX Video CD only) You can select different speeds (2-fold, 4-fold, 8-fold and 20-fold forwards and backwards).
- Page 33 GDP 3564,GB 26.10.2005 12:49 Uhr PLAYBACK AUDIO/VIDEO FILES Seite 33 Switching the dubbing language or the audio format (Nero Digital /DivX A Nero DIGITAL or DivX © Video CD can contain various dubbing languages or audio formats. Press » « during playback.
-
Page 34: Picture Cd Playback
GDP 3564,GB 26.10.2005 12:49 Uhr PICTURE CD PLAYBACK Features of the JPEG CD Features of the KODAK picture CD Displaying JPEG pictures CD-R 1/88 Birds 029155 031507 031426 031512 031490 031516 031496 031529 031498 031530 Pause Play Seite 34 JPEG stands for Joint Picture Experts Group. This process was desi- gned to compress picture files. -
Page 35: Selecting Pictures
GDP 3564,GB 26.10.2005 12:49 Uhr PICTURE CD PLAYBACK Selecting pictures Next Back Adjusting the picture display n180 Deg CW Original Enlarging the picture (zoom) Random play (JPEG CD only) Seite 35 ... using the numerical buttons During playback, select the desired picture using –... -
Page 36: Audio Cd Playback
GDP 3564,GB 26.10.2005 12:49 Uhr AUDIO CD PLAYBACK Features of the Audio CD Track 1 Track 2 Track 3 Track 4 Audio CD playback Play Pause Play 00:01:34 00:02:12 CDDA Track 2/19 Next Back Seite 36 An audio CD is identified by this logo. -
Page 37: Random Play
GDP 3564,GB 26.10.2005 12:49 Uhr AUDIO CD PLAYBACK Play Stop Repeat functions Rep A – Rep A – B Repeat Single Repeat All Seite 37 Fast search Different speeds are available. To select the desired playback speed press » repeatedly during playback. -
Page 38: Creating A Program
GDP 3564,GB 26.10.2005 12:49 Uhr CREATING A PROGRAM Program Input 4 --- 7 --- 10 --- 2 --- 5 --- 8 --- 11 --- 3 --- 6 --- 9 --- 12 --- Play Program Clear All Program Input 4 -10... -
Page 39: Audio Settings
GDP 3564,GB 26.10.2005 12:49 Uhr AUDIO SETTINGS Selecting the digital output Installation Picture Sound Child Lock Digital Output Original Clock rate 96 kHz Original Surround Setting the sampling rate Installation Picture Sound Child Lock Digital Output Original Clock rate 96 kHz... -
Page 40: Child Lock
GDP 3564,GB 26.10.2005 12:49 Uhr CHILD LOCK Authorising the contents of a DVD Installation Picture Sound Child Lock Code - - - - Access Level Factory Defaults Reset DivX Registration Display Installation Picture Sound Child Lock Code - - - -... -
Page 41: Personal Settings
GDP 3564,GB 26.10.2005 12:49 Uhr PERSONAL SETTINGS Setting the language Installation Picture Sound Child Lock Player Language English Subtitle Deutsch Audio Language English Menu Language English Display Function Installation Picture Sound Child Lock Player Language English Subtitle Deutsch Audio Language... -
Page 42: Divx Video Registration
GDP 3564,GB 26.10.2005 12:49 Uhr PERSONAL SETTINGS DivX Installation Picture Sound Child Lock Code - - - - Access level Factory defaults Reset DivX Registration Display Setting the resolution of JPEG pictures Installation Picture Sound Child Lock TV Format 4:3 LB... -
Page 43: Switching Function Displays On And Off
Seite 43 The various displays which inform you about the current operating mode of the DVD player on the screen have been preset to on. You can switch them on and off as required. Call up the main menu using »i«. -
Page 44: Television Remote Control
26.10.2005 12:49 Uhr TELEVISION REMOTE CONTROL You can also operate GRUNDIG televisions with this remote control. The fun- ctions available to you depend on the model of the GRUNDIG television. Point the remote control directly at the TV. 1 … 0... -
Page 45: Information
This device conforms to the safety regulation DIN EN 60065 and therefore the international safety regulation IEC 60065. You may not open the DVD player. The manufacturer will not accept any liability for damage resulting from improper handling. Seite 45... -
Page 46: General Instructions For Laser Devices
In order to avoid possible damage to he audio system, the user should take appro- priate preventive measures when the stereo outputs of the DVD player are connected to an amplifi- cation system. For DTS Digital Surround playback, an external 5.1-channel DTS Digital Surround decoder must be connected to the digital output (S/PDIF) of the DVD player. -
Page 47: Troubleshooting
INFORMATION Troubleshooting Not every picture or sound problem is caused by a defect in your DVD player. Impairment can also be caused by leads having been accidentally pulled out, damaged DVDs/CDs and worn-out batter- ies in the remote control. If the following measures do not do not rectify the problem, consult an authorised dealer. -
Page 48: Cleaning Discs
GRUNDIG will refuse to refund any costs resulting in such cases. Any repair costs in such cases, even those occurring within the guarantee period, are to be paid by the customer. -
Page 49: Additional Information For Units Sold In The Uk
GDP 3564,GB 26.10.2005 12:49 Uhr INFORMATION Additional Information for units sold in the UK. Units sold in the UK are suitable for operation from a 240V ac, 50Hz mains supply. The range of multi-system receivers is built to work in most European coun- tries. - Page 50 GDP 3564,GB 26.10.2005 12:49 Uhr Seite 50...
