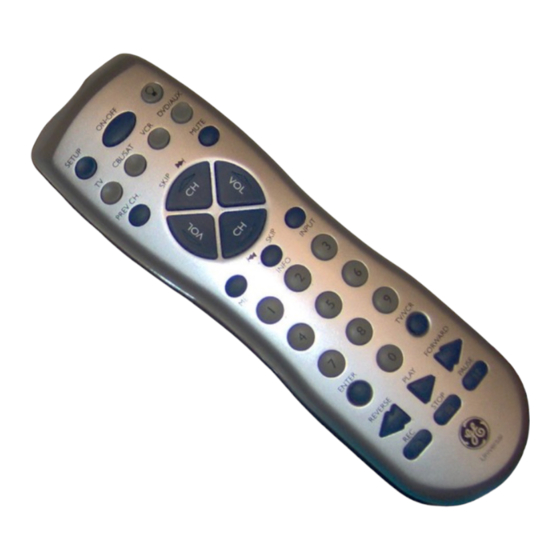

ON•OFF The ON•OFF button operates the same as your original remote (note: some RCA, GE and ProScan models require you to press the device key to turn the device on and the ON•OFF key to turn the device off).
Page 3
Activates lighted keys. Keys remain lit for about 10 seconds. Battery Installation Your Universal Remote requires four (4) new AAA alkaline batteries. To install the batteries: 1. On the back of the remote, push and slide the cover off.
94931 Revised Size 1/22/02 2/26/02 Programming For TV 1. Manually turn on the TV. 2. Press and hold the SETUP button until the INDICATOR LIGHT lights, then release the SETUP button. 3. Press and release the TV button (the INDICATOR LIGHT will blink then remain lit).
94931 Revised Size 1/22/02 2/26/02 Programming For VCR 1. Manually turn on the VCR. 2. Press and hold the SETUP button until the INDICATOR LIGHT lights, then release the SETUP button. 3. Press and release the VCR button (the INDICATOR LIGHT will blink then remain lit).
2/26/02 Programming For Cable Box or Satellite Receiver The CBL • SAT button is defaulted to RCA/GE/ProScan DBS systems, however other DBS systems can be programmed to this button. 1. Manually turn on the Cable Box. 2. Press and hold the...
94931 Revised Size 1/22/02 2/26/02 The DVD•AUX Button The DVD•AUX button can be used for a DVD play- er. It can also be assigned to any other type of device (another TV , VCR, DVD, CD Player, or audio receiver). 1.
94931 Revised Size 1/22/02 2/26/02 Programming With Code Search If your TV, VCR, DVD.CD player, satellite receiver, or Cable Box does not respond after you have tried all the codes for your brand, or if your brand is not listed, try searching for your code by following the steps below.
94931 Revised Size 1/22/02 2/26/02 Retrieving Codes If you need to find the three-digit code for your TV, VCR, DBS Receiver, or Cable Box after your device is set-up using Code Search, use this procedure. 1. Press and hold SETUP until the INDICATOR LIGHT lights, then release SETUP.
VOL UP/DOWN buttons will operate as CURSOR RIGHT/LEFT CH+/- keys will operate as CURSOR UP/DOWN. For RCA, GE, and ProScan TVs, pushing the MENU button will select the highlighted item. The numberic buttons may also be used to select the MENU choice.
Page 12
94931 Revised Size 1/22/02 2/26/02 Exiting the TV Menu Mode: To exit the Menu Mode and clear the TV screen push the TV button on the remote. The INDICATOR LIGHT should go out indicating the remote is now out of TV Menu Mode and will revert to it’s normal mode of operation.
CURSOR RIGHT/LEFT CH+/- keys will operate as CURSOR UP/DOWN. For RCA, GE, and ProScan DBS Systems, push- ing the MENU button will select the highlighted item. The numberic buttons may also be used to select the MENU choice.
Page 14
94931 Revised Size 1/22/02 2/26/02 Exiting the DBS Menu Mode: To exit the Menu Mode and clear the TV screen push the CBL•SAT button on the remote. The INDICATOR LIGHT should go out indicating the remote is now out of DBS Menu Mode and will revert to it’s normal mode of operation.
94931 Revised Size 1/22/02 2/26/02 Trouble Shooting Pr oblem Solution A) Replace the batteries Indicator light not (with fresh, new AAA blinking when you Alkaline batteries). press any key B) Check that batteries are properly installed. A) Try all the codes list- The remote does ed for your brand.
94931 Revised Size 1/22/02 2/26/02 Pr oblem Solution A) Make sure you have No response after new batteries, and you pressing a key are aiming your remote at your devices. B) Check that batteries are properly installed. See page 2. Remote must remain Sleep feature does aimed at television after...
ON•OFF El botón de ON•OFF funciona igual que su remoto original (nota: algunos modelos de RCA, de la GE y de ProScan requiérale presionar el clave del dispositi vo para dar vuelta el dispositivo encendido y el clave ON•OFF para dar vuelta al dispositivo apagado).
94931 Revised Size 1/22/02 2/26/02 ENTER El botón de "ENTER" se utiliza para terminar la selección de canal para algunas marcas de la TV. También se utiliza para terminar el proceso de la entrada del código. VOL & CHAN Las flechas VOL (volumen) y CH (del canal) aumente o dis- minuya los números de canal o volumen.
94931 Revised Size 1/22/02 2/26/02 Programación para la Televisor Gire manualmente la prensa de la TV Presione y sostenga el botón de SETUP hasta que las luces de INDICATOR LIGHT, después suelta el botón de la SETUP. Presione y soltar el botón de la TV (sigue habiendo INDICATOR LIGHT entonces...
94931 Revised Size 1/22/02 2/26/02 Programación para el VCR 1. Gire manualmente la prensa del VCR. Presione y sostenga el botón de SETUP hasta que las luces INDICATOR LIGHT, después suelta el botón de SETUP. Presione y soltar el botón del VCR (sigue habiendo INDICATOR LIGHT entonces centelleo...
94931 Revised Size 1/22/02 2/26/02 Programación para la Caja Del Cable El botón de CBL•SAT se omite los sistemas de RCA/GE/Proscan DBS, sin embargo,otros sistemas de DBS se pueden programar a este botón. 1. Gire manualmente La caja del cable.
94931 Revised Size 1/22/02 2/26/02 El Botón de DVD•AUX El botón de DVD•AUX omite los sistemas de RCA/GE/ProScan DBS. El botón de DVD•AUX permite que usted asigne otra TV, VCR, o caja del cable. To asigna otro dispositivo al botón de DVD•AUX:...
94931 Revised Size 1/22/02 2/26/02 Programación con Búsqueda del Código El botón de DVD•AUX se puede utilizar para un jugador de DVD. Puede también ser asignado a cualquier otro tipo de dispositivo (otra TV, VCR, DVD, jugador de CD, o receptor audio)..
94931 Revised Size 1/22/02 2/26/02 Extraer Códigos Si usted necesita encontrar el código tridigital para su caja de la TV, del VCR o del cable después de que su dispositivo set-up usando CODE SEARCH, utilice este procedimiento. Presione y sostenga SETUP hasta que las luces de INDICATOR LIGHT, después suelta...
CURSOR RIGHT/LEFT CH+ / - los claves funcionarán como CURSOR UP/DOWN Para RCA, la GE, y ProScan TVs, empujando el botón del MENU seleccionarán el item destacado. Los botones numberic se pueden también utilizar para seleccionar la opción del MENU.
Page 27
94931 Revised Size 1/22/02 2/26/02 Dar salida al modo del menú de la TV Para salir del modo y del claro del menú la pantalla de la TV empuja el botón de la TV en el remoto. La luz de Indicador debe salir indicando que el remoto ahora está...
CURSOR RIGHT/LEFT CH+ / - los claves funcionarán como CURSOR UP/DOWN Para RCA, la GE, y ProScan TVs, empujando el botón del MENU seleccionarán el item destacado. Los botones numberic se pueden también utilizar para seleccionar la opción...
Dar salida al modo el menú de la DBS: Para salir del modo y del claro del menú la pantalla de la TV empuja el botón de la CBL•SAT en el remoto. La luz de Indicador debe salir indicando que el remoto ahora está...
94931 Revised Size 1/22/02 2/26/02 Intente el código del VCR Problemas que para su marca. Algunas programan una unidad combo de unidades combo, sin embar- TV/VCR go, pueden requerir una TV y un código del VCR para la operación completa. Como característica de VCR que no seguridad en su remoto,...
Page 31
94931 Revised Size 1/22/02 2/26/02 10:37 AM Page 31 siguiente, así el limitacíon del arriba no aplicarse. Esta limi- tada darse justicia, y talvez tiene otro justicias que cambia del estado a estado. Si la unidad resulta defectuosa durante el periodo de garantía, devolverla prepagada a: Jasco Products Company 311 N.W.
