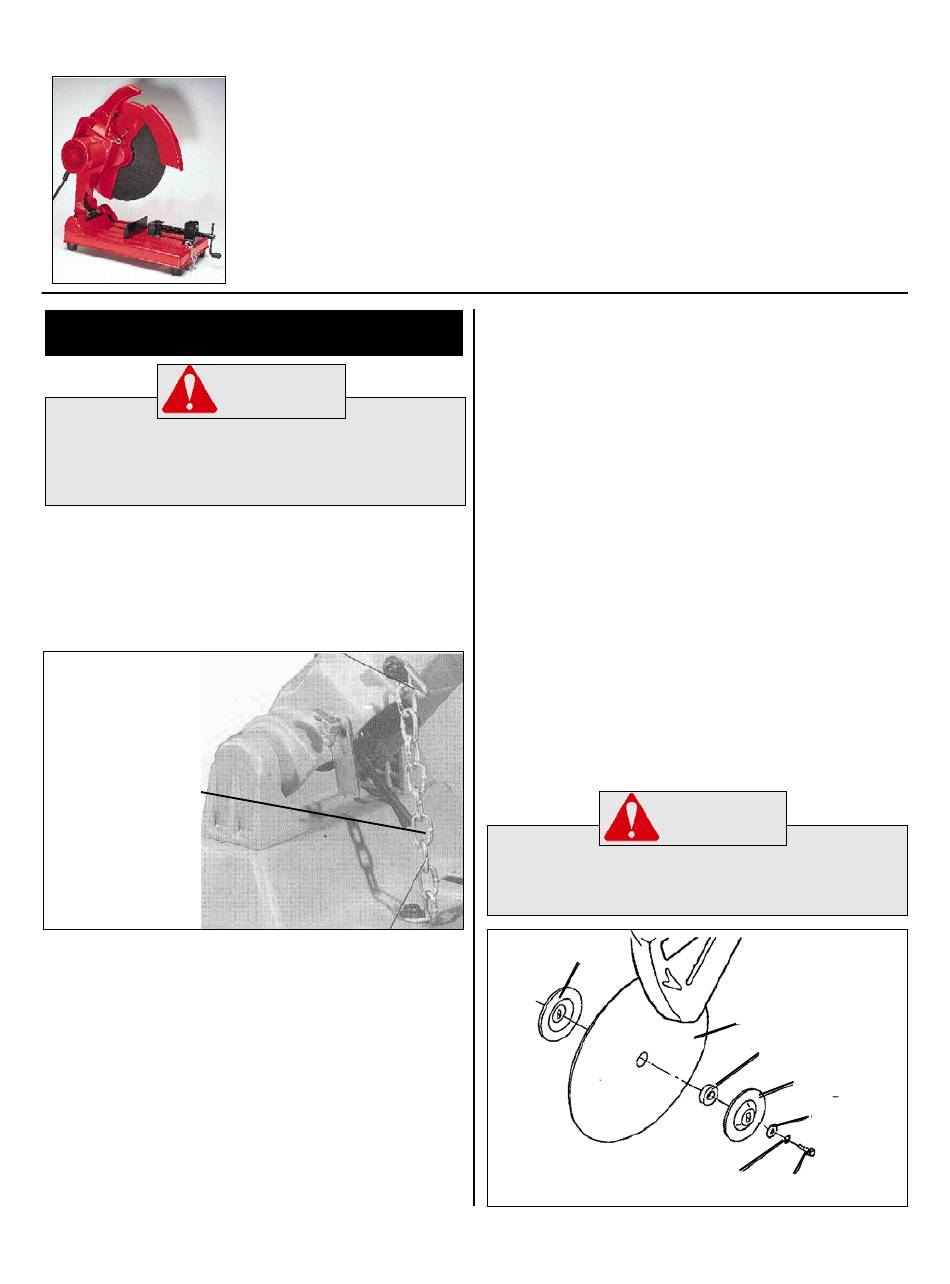

Operation
WARNING!
To reduce the risk of injury, always unplug tool
before attaching or removing accessories. Use
only specifically recommended accessories.
Others may be hazardous.
Using the Hold-Down Chain (Fig 1)
The tool is equipped with a hold-down chain which locksthe
handle down for transporting and storing the tool. Release the
hold down chain by pulling the handle down and lifting the
chain off the hook. To lock the chain, pull the handle down and
loop the chain onto the hook.
Fig. 1
Hold-Down Chain
Removing and Installing Cut-Off Wheels (Fig. 2)
The cut-off machine is supplied with the abrasive cut-off
wheel installed. MILWAUKEE recommends using only MIL-
WAUKEE 14" Abrasive Cut-Off Wheel No. 49-96-6230 with
this tool. Before operating the tool, make sure the wheel is in
good condition as described on pages _. To change wheels, fol-
low the procedure below.
1. Release the hold down chain by pulling the handle down and
lifting the chain off of the hook.
2. Pull the moveable portion of the guard back to expose the
wheel arbor hex screw.
RenTrain INC
Milwaukee Tool

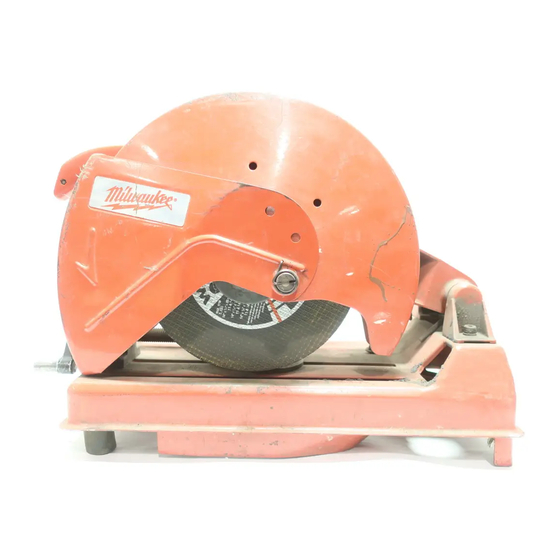

heavy-Duty 14" Abrasive Cut-Off Machine (Chop Saw)
Model Number: 6175
Operating Instructions
Page 1
Press in the spindle lock button and use the hex wrench pro-
vided to loosen and remove the hex bolt (counterclockwise).
3. Remove the hex bolt, spring washer, washer, outer flange,
sleeve and cut-off wheel (if present).
4. Check the (2) wheel flanges to be sure they are in good con-
dition. Remove any nicks or burrs, which could cause uneven
cutting pressure and result in wheel damage.
5. Install the inner flange, wheel, outer flange, sleeve, washer,
spring washer and hex bolt as shown at the right.
Press in the spindle lock button while using the hex wrench
provided to tighten the hex bolt (clockwise). NOTE: Tighten
the bolt firmly enough to flatten the spring washer, but do not
use excessive pressure because overtightening the bolt may
damage the wheel and flanges.
6. Allow the moveable portion of the guard to return to its orig-
inal position.
7. Before starting a cut, step back from the tool and make a
trial run to confirm that the wheel is in good condition. When
repalcing a cut-off wheel, run the tool for over 3 mintues.
When starting routine work, run the tool for over 1 minute.
WARNING!
To reduce the risk of injury, use only the
proper wheel made for this machine. DO NOT
USE ANY TYPE OF SAW BLADE
Flange
Fig. 2
Abrasive Cut-Off
Wheel
Sleeve
Flange
Washer
Spring
Hex Bolt
Washer
