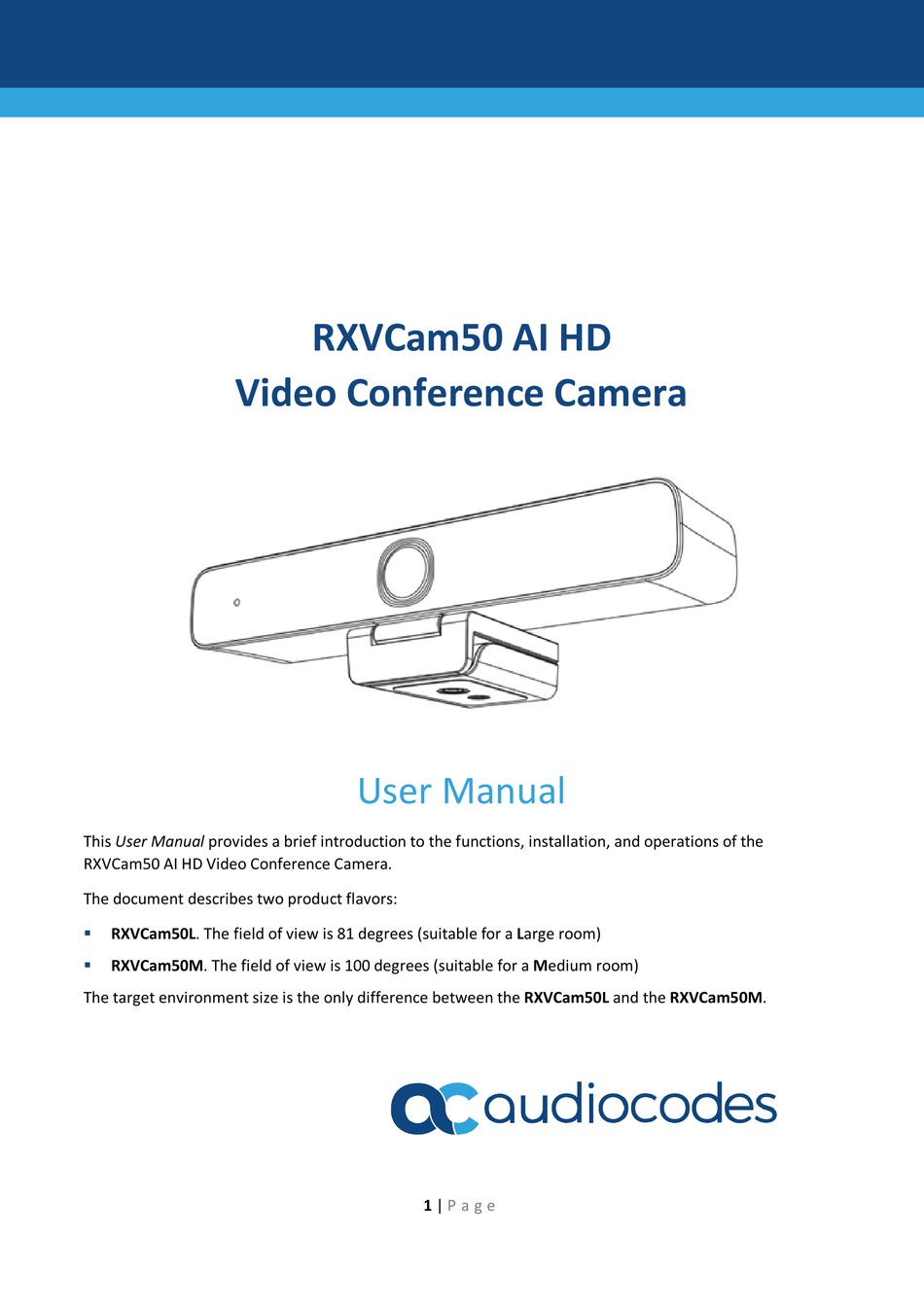

Video Conference Camera
This User Manual provides a brief introduction to the functions, installation, and operations of the
RXVCam50 AI HD Video Conference Camera.
The document describes two product flavors:
RXVCam50L. The field of view is 81 degrees (suitable for a Large room)
RXVCam50M. The field of view is 100 degrees (suitable for a Medium room)
The target environment size is the only difference between the RXVCam50L and the RXVCam50M.
RXVCam50 AI HD
User Manual
1 |
P a g e

Advertisement

Table of Contents
loading

Related Manuals for AudioCodes RXVCam50 AI HD

Summary of Contents for AudioCodes RXVCam50 AI HD

  • Page 1 User Manual This User Manual provides a brief introduction to the functions, installation, and operations of the RXVCam50 AI HD Video Conference Camera. The document describes two product flavors: RXVCam50L. The field of view is 81 degrees (suitable for a Large room) ...

  • Page 2: Safety Precautions

    install the product obliquely otherwise it may display an inclined image. Safety Precautions If the camera is installed on a TV or a computer, the base can be fixed by four This User Manual describes the functions, double-sided adhesive trays. installation, and operations related to the Housing of this product is made of organic RXVCam50 camera.

  • Page 3: Quick Installation Instructions

    Quick Installation Instructions The figure below illustrates the camera interface. Camera Interface 1. Camera lens 4. Tripod fixing hole 6. Bracket 2. Indicator Light 5. Positioning hole 7. USB3.0 interface Camera Operation Product Installation: Fix the device onto an LCD screen, on top of a computer; place it on a desktop, or on a tripod mounting.

  • Page 4: Product Overview

    Product Overview Product Model: RXVCam50  Camera Dimensions:  Accessories:  Wireless remote controller  USB3.0 Type-A to Type-B, 3-meter cable  2 * AAA batteries  P a g e...

  • Page 5: Main Features

    Main Features The camera includes integral AI functions which can automatically centrally frame all people in a meeting. It features smooth functionality and superior performance with advanced ISP processing algorithms that provide vivid images with evenly clear brightness, strong color layering, high resolution, and good color rendition.

  • Page 6: Specifications

    Specifications Parameter RXVCam50L RXVCam50M Camera Image Sensor 1/2.5-inch high-quality 4K CMOS Sensor Effective Pixels 8.28MP 16:9 Video output 1* USB3.0, Type B, supports audio output over USB3.0 port View Angle 91°(D) / 81°(H) / 54°(V) 102°(D)/100°(H)/64°(V) Video Format Main stream: 3840×2160@30fps、1920×1080P@30fps/25fps、 ...
  • Page 7 Parameter RXVCam50L RXVCam50M communication UVC, UAC protocol PTZ control Supports EPTZ Hardware 2.4 GHz Intel@ Core 2 Duo processor or higher  requirement 2GB RAM or more USB 2.0/USB3.0 port (USB 3.0 is needed for 4K video)  Other Parameters Input Voltage Input Current 1A (max.)

  • Page 8: External Interface

    Interface External Interface The figure below shows the external interface connections. Interface Diagram P a g e...

  • Page 9: Wireless Remote Controller

    CAMERA SELECT: Select the camera to control. Application Number keys: Set or call 0-9 presets. FOCUS (unsupported) Wireless Remote Controller + Focus in  - Focus out  AUTO (unsupported) MANUAL (unsupported) ZOOM Press + to zoom in  Press – to zoom out ...

  • Page 10: Basic Operations

    Setting Camera Address F1, F2, F3, F4. Press the following  sequence to set an address: Press * + # + F1 to set Camera Address 1 Press * + # + F2 to set Camera Address 2 Press * + # + F3 to set Camera Address 3 Press * + # + F4 to set Camera Address 4 Key Combinations Press # + # + # to clear all presets...

  • Page 11: Menu Setting

    Auto Framing Menu Setting In the setup menu, move the pointer to (Auto To display the menu, press the MENU key under Framing), press the HOME key and enter the Auto MJPG, YUY2, NV12 or H264 compression encoding Framing settings: format output.

  • Page 12: Color Settings

    Mode: Auto, Manual, SAE, Bright AWB Sensitivity: High/Middle/Low (available   in Auto mode only) EV: On/Off (available in Auto mode only)  Color Temp: 2400k-7100k (available in VAR mode BLC: ON/OFF for options (available in Auto  only) mode only). Image Settings Flicker: OFF/50Hz/60Hz for options (available ...

  • Page 13: Noise Reduction Settings

    Noise Reduction Settings Press the ← → key to set YES/NO and then press In the MENU settings, move the pointer to (Noise HOME to confirm the selection. Reduction), press the HOME key and enter the NOISE REDUCTION settings: Note: The video format and color style cannot be restored to factory defaults.

  • Page 14: Maintenance And Troubleshooting

    Remote Controller does not work Maintenance and Set the camera address to 1 (the camera Troubleshooting address is restored to 1 after restoring default settings). This section shows how to maintain and Repeat the pairing procedure between the troubleshoot the device. Wireless Remote Controller and the camera.

  • Page 15: Customer Support

    Website: https://www.audiocodes.com/ Copyright Statement ©2021 AudioCodes Ltd. All rights reserved. AudioCodes, AC, HD VoIP, HD VoIP Sounds Better, IPmedia, Mediant, MediaPack, What’s Inside Matters, OSN, SmartTAP, User Management Pack, VMAS, VoIPerfect, VoIPerfectHD, Your All the contents in this manual and its copyright Gateway To VoIP, 3GX, VocaNom, AudioCodes One Voice, are owned by the company.
