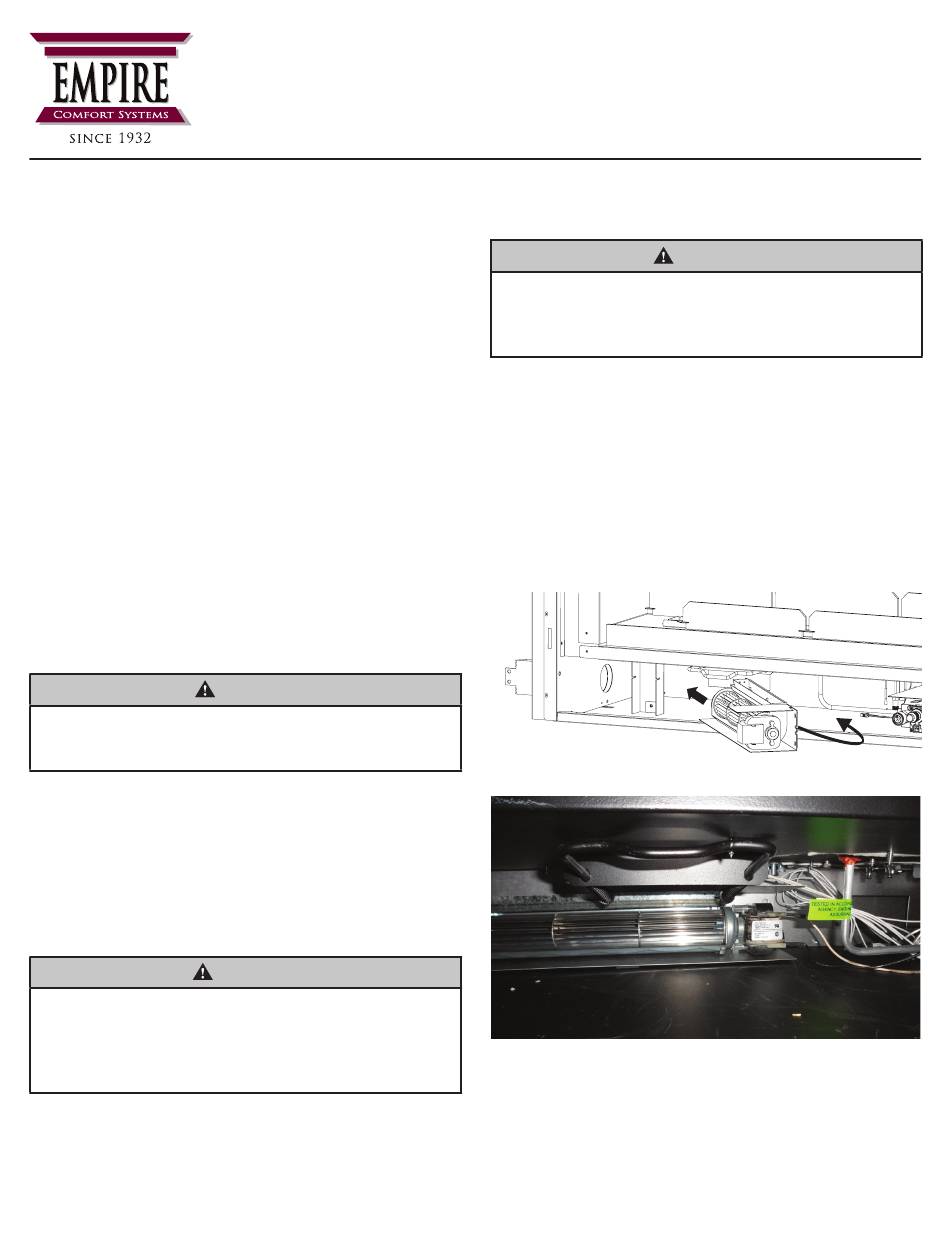

Empire Comfort Systems FBB9-1 Installation Instructions

instrUCtions MUst Be LeFt With the oWner For FUtUre reFerenCe AFter instALLAtion.
Attention: Install blower assembly before connecting gas
inlet supply line
note: Junction box on right side of fireplace must be pre-
wired at time of fireplace installation for use with blower
assembly. It is recommended that an ON/OFF wall switch be
installed by a qualified electrician that will activate the power
supply to the fireplace.
Wiring
The appliance, when installed, must be electrically grounded
in accordance with local codes or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70, if
an external electrical source is utilized. this appliance is
equipped with a three-prong [grounding] plug for your
protection against shock hazard and should be plugged
directly into a properly grounded three-prong receptacle.
Do not cut or remove the grounding prong from this plug.
For an ungrounded receptacle, an adapter, which has two
prongs and a wire for grounding, can be purchased, plugged
into the ungrounded receptacle and its wire connected to
the receptacle mounting screw. With this wire completing
the ground, the appliance cord plug can be plugged into the
adapter and be electrically grounded.
Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
BLoWer Motor
The blower motor does not have oiling holes. Do not attempt
to oil the blower motor.
BLoWer WheeLs
The blower wheels will collect lint and could require periodic
cleaning. If the air output decreases or the noise level
increases, it indicates a dirty blower wheel. Remove blower
and clean blower wheels.
Unplugging of blower accessory will not stop the heater
from cycling. to turn off gas to the heater (millivolt model):
push in gas control knob slightly and turn clockwise to
"oFF." Do not force. to turn off gas on direct ignition
model, turn gas line valve to "oFF."
29847-5-0719
FBB9-1 BLoWer Kit
instALLAtion instrUCtions
CAUtion
WArning
Empire Comfort Systems Inc. • Belleville, IL
BLoWer instALLAtion
if previously installed, do not damage gas inlet supply
line when blower assembly is inserted into fireplace.
if necessary, removal of the gas inlet supply line may
be necessary.
1. Remove decorative front, valve cover (three screws), and
glass door assembly.
2. Reposition the extension module mount plate, module, and
extension module by placing them in front of the valve.
3. Insert the blower assembly past the firebox support leg
with the motor portion angled to the front of the fireplace.
see Figure 1. Slide the blower past the supply tubing to
position the blower along the back wall of the fireplace
back in the open space along the left side of the fireplace.
see Figure 2.
WArning
Figure 1
Figure 2
Page 1
