4.7.2 Fiber Optic Ports

Depending on the order code of the product, the RS416 can be equipped with several different

types of fiber optic ports. The Transmit (TX) and Receive (RX) connections of each port must be

properly connected and matched for proper link and operation. Modules populated on the top row

of the device typically have locking mechanisms or tabs towards the top of the unit. Modules

located on the bottom row of the device have locking mechanisms or tabs towards the bottom of

the device.

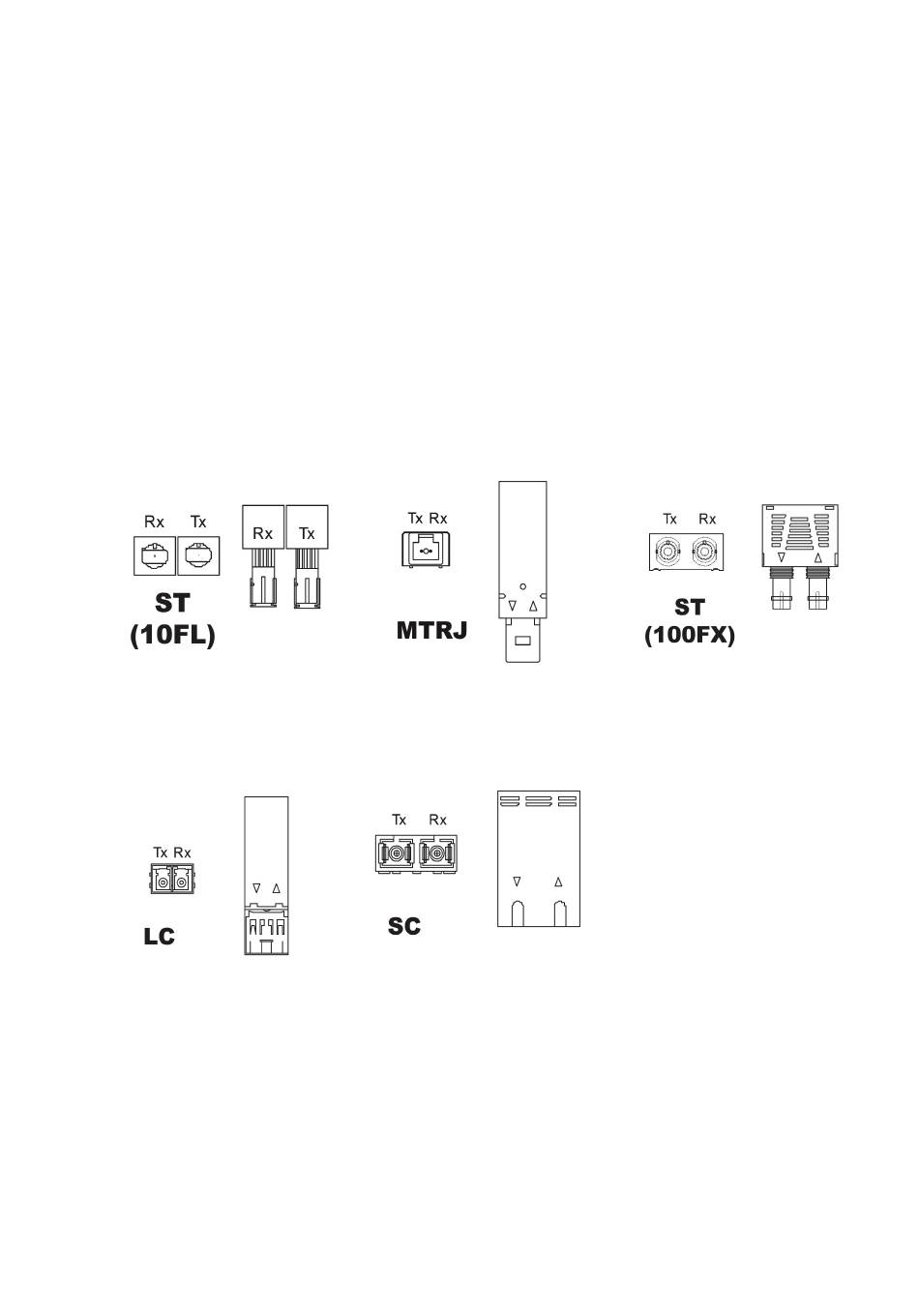

The drawings in the following figures show each fiber optical connector style with a side and top

view to allow the user to identify the proper cable connection orientation. If modules are populated

on the bottom row of the device, the transceiver orientation will be reversed (i.e. RX and TX will be

reversed).

Figure 20: 10FL ST connector

Figure 23: 100FX LC connector

All manuals and user guides at all-guides.com

Figure 21: 100FX MTRJ connector

Figure 24: 100FX SC connector

Figure 22: 100FX ST connector
