Extron electronics VLP 102 Setup Manual

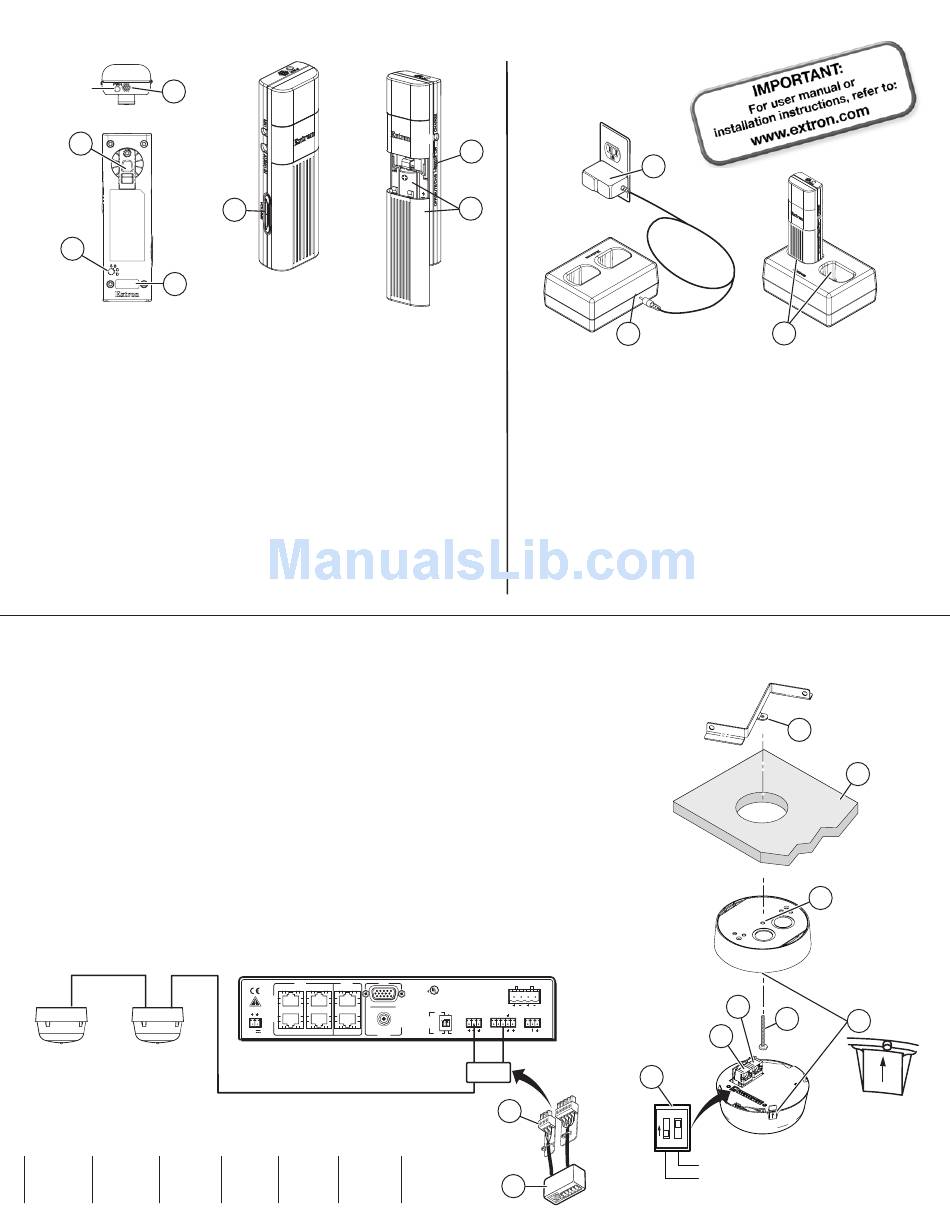

VLP 102 Pendant Microphone and Charging Station Setup Guide
Power
Indicator
6
LED
Top
4
1
2
a
Set the channel using the rotary switch. A and C = 2.3 MHz;
B and D = 2.8 MHz.
Each microphone must be on a different frequency. Set
N
the channel to C or D to disable the volume buttons.
b
Apply the Teacher or Student sticker to identify the microphone.
c
Remove the battery door, and insert the AA battery. Charge the
battery if necessary.
d
Attach the lanyard to the rotating clip. Adjust the lanyard to
position the microphone approximately 4" below the user's chin.
e
Turn the microphone on by sliding the power switch up.
f
Speak in a normal tone of voice. Do not block the microphone
port opening.
g
Adjust the volume if necessary.
VLR 102 IR Receiver and VLR 102SR Secondary Receiver Setup Guide
a
Cut a 2" to 3" diameter hole in the ceiling tile.
b
Align the center of the receiver housing with the hole in the ceiling tile.
c
Insert the mounting screw through the receiver housing and the hole in the ceiling tile.
d
Attach the Z-bracket to the end of the screw on the back side of the ceiling tile. Replace
the ceiling tile.
e
Set the Mix DIP switch to off and the Tone DIP switch to on (VLR 102 only).
f
Pull an Ethernet cable to the receiver location, and connect one end of the cable to the
RJ-45 jack (labeled OUT) on the receiver base.
g
Align the arrow on the dome's tab with the raised arrow on the edge of the housing.
Rotate the dome to the right (clockwise) until the arrow on the tab aligns with the
raised dot on the housing.
h
Connect the other end of the Ethernet cable to the VoiceLift adapter for a VLR 102
Receiver, or to the RJ-45 jack labeled IN for a VLR 102SR Secondary Receiver.
i
Connect the VoiceLift adapter to a PoleVault switcher.
Out In Out
VLR 102SR VLR 102
Extron USA - West Extron USA - East Extron Europe
Headquarters
+800.633.9876 +800.3987.6673
+800.633.9876 Inside USA / Canada Only Inside Europe Only
Inside USA / Canada Only
+1.919.863.1794 +31.33.453.4040
+1.714.491.1500 +1.919.863.1797 FAX +31.33.453.4050 FAX
+1.714.491.1517 FAX
7
RGB VIDEO RGB
1A 2A 3
I
O
N
U
P
T
POWER U
P
T
U
S
T
S
12V 1B 2B 4
VIDEO
3A MAX
PoleVault Switcher
Extron Asia Extron Japan Extron China
+800.7339.8766 +81.3.3511.7655 +400.883.1568
Inside Asia Only +81.3.3511.7656 FAX Inside China Only
+65.6383.4400 +86.21.3760.1568
+65.6383.4664 FAX +86.21.3760.1566 FAX
5
3
a
Plug the wall charger (5 V, 1 A) into a wall outlet.
b
Connect the wall charger's cable to the charging
station's power jack.
c
Place the microphone in one of the charger's slots, with
the charging contacts facing down. Charge for at least
6 hours.
N
C
AMPLIFIED OUTPUTS
LISTED 17TT
US AUDIO/VIDEO
4/8
®
APPARATUS
Ohms
L R
RS-232 MLC/IR
ON STEREO
AUX/MIX IN Tx Rx IR 12V DC VOL
ON
HIGH
PASS
FILTER
A B C 10V
DUAL
OFF
VOL/MUTE
MONO
9
VoiceLift
Adapter
Extron Middle East
+971.4.2991800
+971.4.2991880 FAX
8
1
2 3
The microphone can be left to charge for
extended periods. In maintenance mode, the
charge is retained when complete.
Do not charge alkaline or NiCd batteries.
4
8
3
6
5
1 2
O
N
CTS-2
TONE
MIX
68-1631-01 Rev. A 01 09
