A
part
A

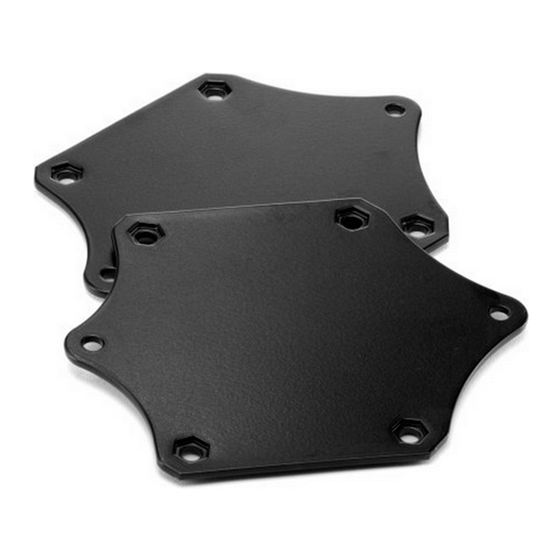

adapter plate /
B
M6 x 12 tamperproof button head screw
C
spring locking washer /
D
M6 sliding square nut 20 x 20 /
E
M6 X 40 tamperproof bolt, 690 SP /
F
M6 locking nut /
G
flat washer 6mm I.D. /
H
tamperproof wrench T-27 /
1
`
506-7014_01
XADAPT11
PARTS INCLUDED
B
C
description
• To attach adapter plate to bottom of Hull-a-Port base, first turn Hull-a-Port upside
down and align plate shape with bottom of Hull-a-Port base. The longer (pointier)
end should point toward the back handle and hubs.
• Hex nut insets should be visible.
• Place an M6 locking nut into inset on one of the four corners on the bottom of
the plate.
(Attach Hull-a-Port to AeroBlade)
D
E
F
G
part number
8527486001
853526903
956061259
8537557
853526905
938060054
951061254
8535270
H
qty.
2
4
4
4
8
8
8
1
