www.sylvania.com
SYLVANIA Luminaires

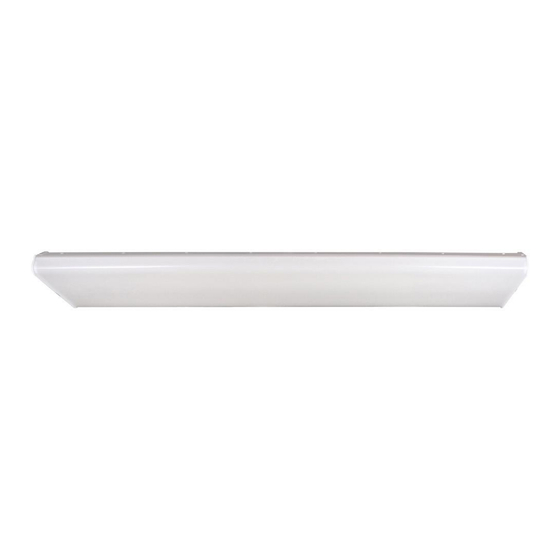

Installation Guide – Wrap 2A
For warranty coverage, please register at www.sylvania.com/warrantyregistration.
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODES BY
A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS
INVOLVED. THIS PRODUCT MUST BE WIRED IN ACCORDANCE WITH THE NATIONAL ELECTRIC CODE AND
ALL APPLICABLE LOCAL CODES.
• TO PREVENT PERSONAL INJURY OR PRODUCT DAMAGE ONLY LICENSED ELECTRICIANS SHOULD
PROVIDE ALL INSTALLATION SERVICES.
• TO AVOID ELECTRIC SHOCK OR COMPONENT DAMAGE DISCONNECT POWER BEFORE ATTEMPTING
INSTALLATION OR SERVICING.
• USE CAUTION WHEN HANDLING THIS PRODUCT DURING OR AFTER OPERATION AS IT MAY BECOME HOT
AND CAUSE BURNS. DISCONNECT PRODUCT AND ALLOW COOLING PRIOR TO SERVICING.
• ANY ALTERATION OR MODIFICATION OF THIS PRODUCT IS EXPRESSLY FORBIDDEN AS IT MAY CAUSE
SERIOUS PERSONAL INJURY, DEATH, PROPERTY DAMAGE AND/OR PRODUCT MALFUNCTION.
• TO PREVENT PRODUCT MALFUNCTION AND / OR ELECTRICAL SHOCK THIS PRODUCT MUST BE
PROPERLY GROUNDED.
• THIS LUMINAIRE IS DESIGNED TO OPERATE IN AMBIENT TEMPERATURES RANGING FROM -4°F TO +104°F
(-20°C TO +40°C)
• EMERGENCY BACK UP TEMPERATURE RANGE IS +32°F TO +104°F (0°C TO +40°C).
• THIS LUMINAIRE IS DESIGNED TO OPERATE IN DRY OR DAMP LOCATIONS
• MIN 90°C SUPPLY CONDUCTORS
• TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET METAL OR
OTHER SHARP OBJECTS.
NOTE!
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Please visit
www.sylvania.com\fccpart15B
CAN ICES-005(B) \ NMB5(B)
4033398
CAUTION – RISK OF FIRE
Advertisement
Table of Contents
Related Manuals for Sylvania UltraLED Series
Summary of Contents for Sylvania UltraLED Series
- Page 1 SYLVANIA Luminaires Installation Guide – Wrap 2A For warranty coverage, please register at www.sylvania.com/warrantyregistration. PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION CAUTION – RISK OF FIRE THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODES BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
-
Page 2: Safety Precautions
DIMENSIONS: Confidential – for internal use only Competitor Product Comparison SAFETY PRECAUTIONS: IMPORTANT: READ CAREFULLY BEFORE INSTALLING THE FIXTURE. RETAIN FOR FUTURE REFERENCE. GENERAL: Upon receipt of the fixture, thoroughly inspect for any freight damage which should be brought to the attention of the delivery carrier. TO AVOID ELECTRIC SHOCK OR COMPONENT DAMAGE DISCONNECT POWER BEFORE ATTEMPTING INSTALLATION OR SERVICING INSTALLATION: 1: Fixture Preparation... -
Page 3: Suspension Mounting
INSTALLATION (cont.): Confidential – for internal use only Competitor Product Comparison Fig. 2 Mounting Holes Fig. 3 3: Suspension Mounting A. Attach suspension cable or chain (supplied by others) to the mounting surface at the desired locations. B. Attach the suspension cable to the fixture through the appropriate holes at each end and level the fixture at the desired height (Fig 4). -OR- C. -
Page 4: Wiring Diagram
Wiring Diagram This fixture is compatible with 0-10V output dimming controls (please reference Dimmable Compatibility List LEDLUM012). To get to 0% light output (OFF) it is necessary to switch the input power to the LED drivers. Connect wall dimmer to dimming wires on driver. (See Wiring Diagram). The Yellow wire is a 12-volt DC auxiliary power output for optional accessories –... - Page 5 SYLVANIA Luminaires Guide d’installation – Wrap 2A Pour obtenir la couverture de la garantie, enregistrez-vous sur www.sylvania.com/warrantyregistration. VEUILLEZ LIRE TOUTES LES DIRECTIVES AVANT DE COMMENCER L’INSTALLATION ATTENTION – RISQUE D’INCENDIE CE PRODUIT DOIT ÊTRE INSTALLÉ EN CONFORMITÉ AVEC LE CODE D’INSTALLATION APPLICABLE, PAR UNE PERSONNE FAMILIÈRE AVEC LA CONSTRUCTION ET L’EXPLOITATION DE CE PRODUIT AINSI...
-
Page 6: Consignes De Sécurité
Cote: Confidential – for internal use only Competitor Product Comparison CONSIGNES DE SÉCURITÉ : IMPORTANT : BIEN LIRE LES DIRECTIVES AVANT D’INSTALLER LE LUMINAIRE. GARDER POUR RÉFÉRENCES FUTURES. GÉNÉRAL : lors de la réception du luminaire, bien inspecter pour s’assurer qu’aucun dommage n’est survenu pendant le transport et si c’est le cas, aviser le transporteur. - Page 7 INSTALLATION (suite): Confidential – for internal use only Competitor Product Comparison Fig. 2 Trous de montage 3: Montage suspendu A. Rattacher le câble de suspension ou la chaîne (non inclus) sur la surface de montage aux endroits recherchés. B. Rattacher le câble de suspension au luminaire par le trou adéquat à chaque extrémité et niveler le luminaire à la hauteur désirée (Fig. 4). -OU- C.
-
Page 8: Schéma De Câblage
Dessins de câblage Ce luminaire est compatible avec des contrôles de gradation 0-10V (veuillez consulter la liste de compatibilité de gradation LEDLUM012). Pour obtenir un flux lumineux à 0% (ARRÊT) il est nécessaire de transférer la puissance à l’entrée aux pilotes DEL. Connecter le gradateur mural aux fils de gradation du pilote (Voir le dessin de câblage) Le fil jaune est un fil d’alimentation auxiliaire de 12 volts c.c.
