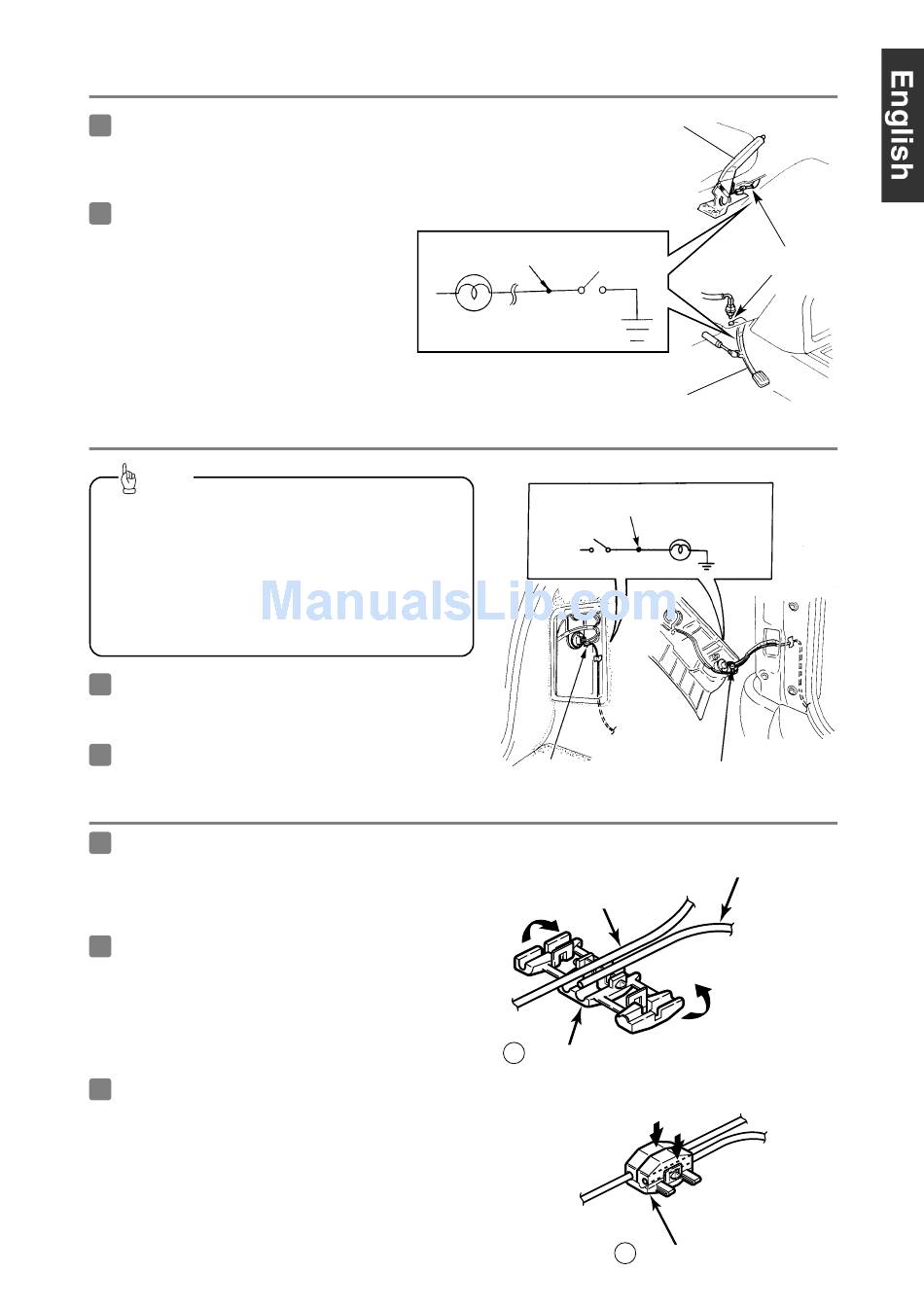

- A connecting the point for parking brake (example) -

1
Use a splicing connector to connect the parking
brake signal wire (red/white) coming from the
main unit to the parking brake signal wire of the
vehicle.
2 Route the parking brake signal wire to the main
unit.

- A connecting point for the reverse signal (example) -

Tip
• • Be sure to connect the reverse signal wire. If it is
not connected, the vehicle position may be
incorrect when the vehicle is reversed.
• • Use a circuit tester to confirm that a sensing
voltage of 6 V or higher is generated when the
vehicle is reversed.
1 Use a splicing connector to connect the reverse
signal wire (green) coming from the main unit to
the reverse signal wire of the vehicle.
2
Route the reverse signal wire to the main unit .

- Using the splicing connector -

1 Insert the connection wire [vehicle speed pulse
signal wire (purple/white), parking brake signal
wire (red/white), or reverse signal wire (green)]
from the main unit and the vehicle wire into the
splicing connector.
2
Push in the terminal (the metal part) of the
splicing connector using a pair of pliers.
3
Press down the cover of the splicing connector
and squeeze it until it locks.
Hand-operated
Parking brake
Attach a splicing
connector at this location.
Parking brake
signal wire
Foot-operated
Parking brake
Attach a splicing
connector at this location.
Reverse signal wire
Harness in the car
Splicing connector
8
- 11 -
Parking brake
Signal Wire
Reverse lamp
Reverse signal wire
Vehicle speed pulse signal wire
(purple/white), parking brake wire,
(red/white) or reverse wire (green)
Lock
Splicing connector
