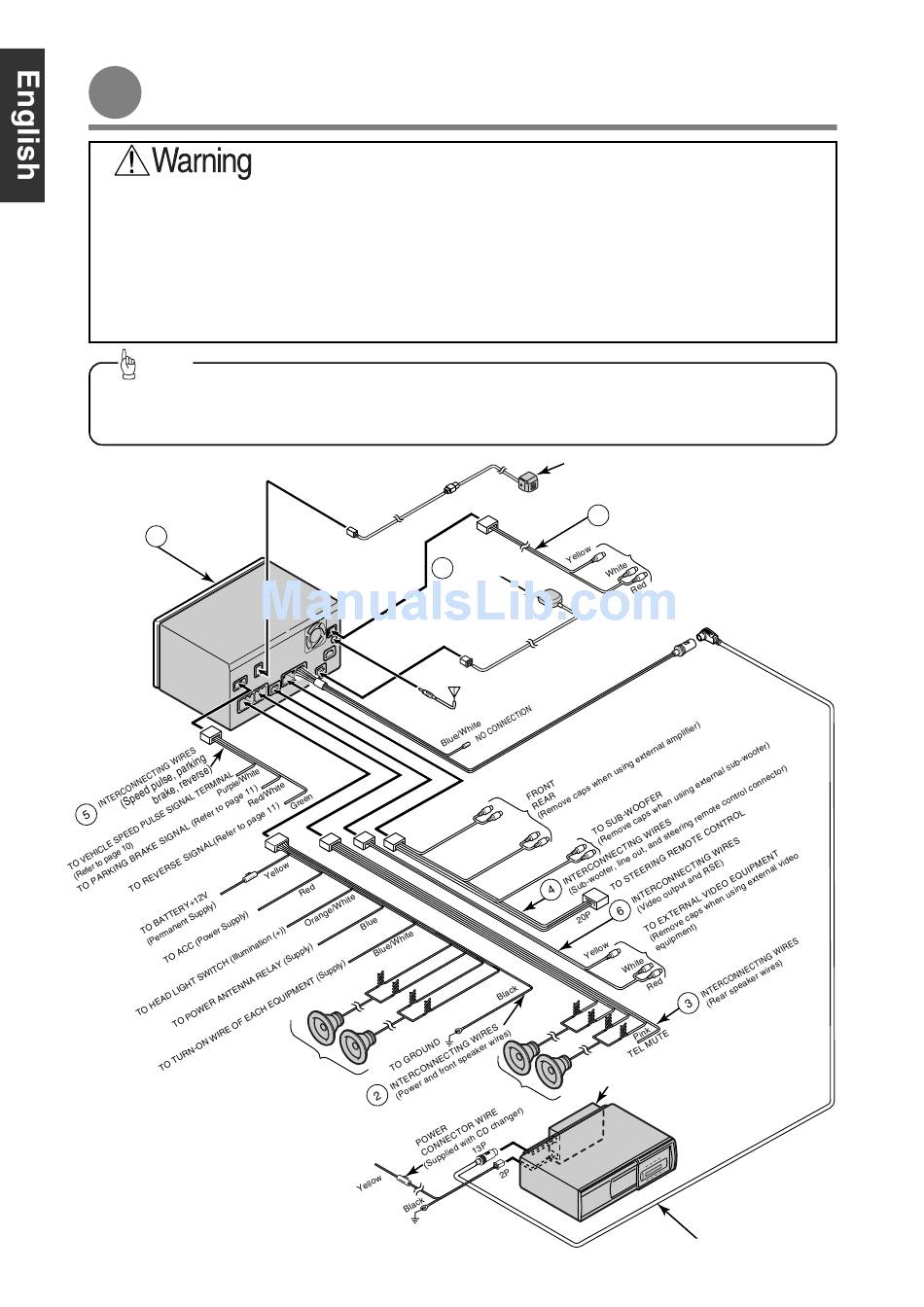

System Connection Example - Eclipse AVN6610 Installation Manual

System connection e
System connection e
• • Never cut the insulation on the power wire or use it to power any other main unit. If the rated current
capacity of the power wire is exceeded, fire and electric shocks may result.
• • The wires should be secured with tape or a similar securing method to prevent any obstructions while
driving. If they get wound or entangled around components such as the steering wheel, shifting lever,
or brake pedal, accidents may result.
• • If removing the end of the wire to connect to another wire, be sure to wrap PVC tape or a similar wire
insulating method around the connection to insulate it. If the connection is not insulated, fire or
accidents may result.
Tip
• • Install and connect all of the peripheral units before connecting them to the main unit.
• • Do not remove any of the protective caps (RCA, etc.) unless in use.
• • Be sure to wrap the connection wires with tape (PVC tape) to insulate them.
1 MAIN UNIT
5P
10P
FRONT
SPEAKERS
TO BATTERY+12V(Permanent Supply)
4P
13
GPS ANTENNA
1P
ANTENNA PLUG
5P
20P
6P
TO GROUND
- 12 -
xample
xample
BEC106
(sold separately)
INTERCONNECTING WIRES
7
6P
(Video input)
FROM EXTERNAL VIDEO EQUIPMENT
(Remove caps when using external video
equipment)
CH3083(sold separately)
REAR
SPEAKERS
13P
DIN WIRE
(Supplied with CD changer)
