XML8110
INSTALLATION/OWNER'S MANUAL
In-Dash AM/FM/Bluetooth
®
 Ready Docking Station for iPod
READY

Advertisement

Table of Contents
loading

Related Manuals for Dual XML8110

Summary of Contents for Dual XML8110

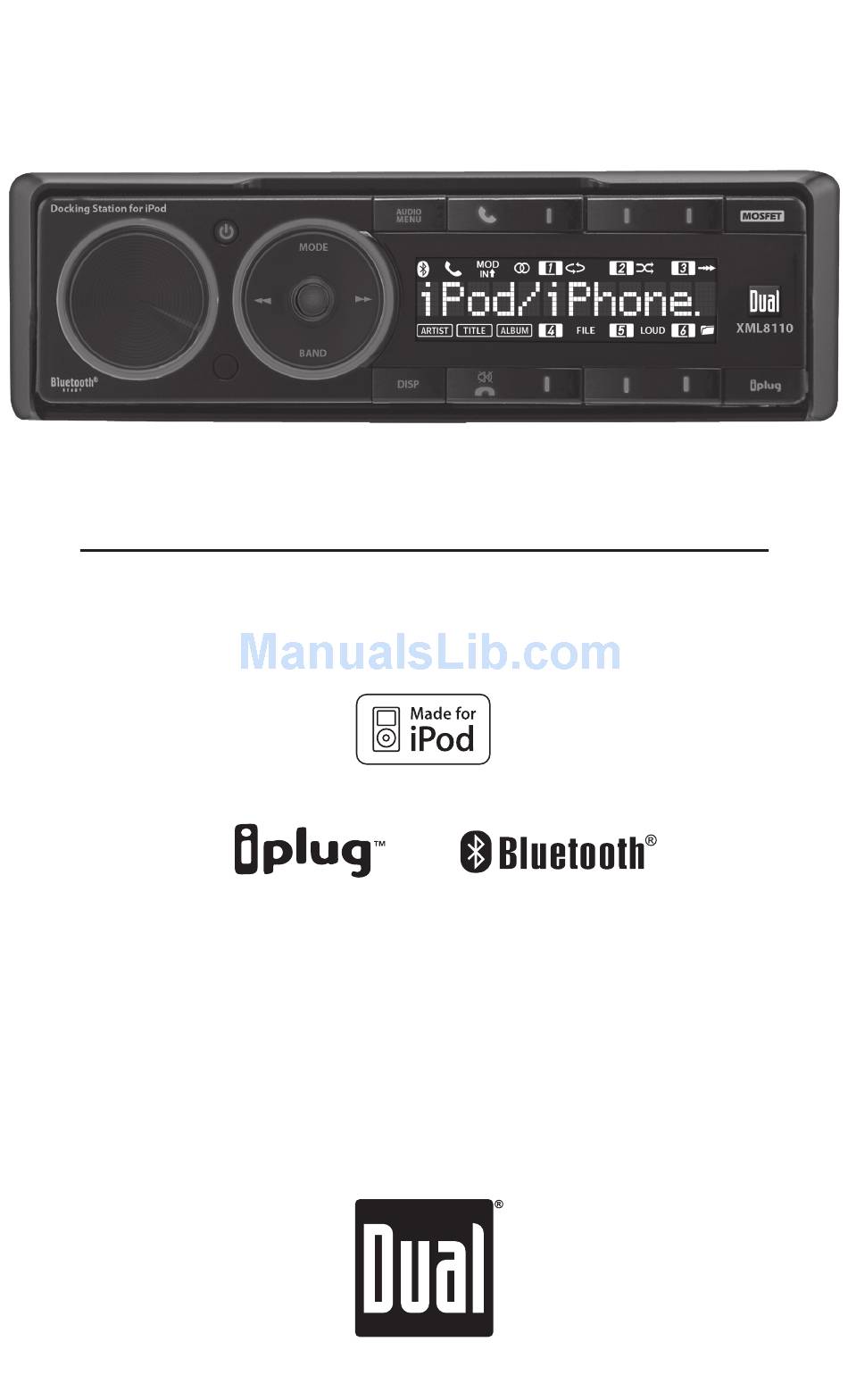

  • Page 1 XML8110 INSTALLATION/OWNER'S MANUAL In-Dash AM/FM/Bluetooth ®  Ready Docking Station for iPod READY...
  • Page 2 XML8110 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

  • Page 3: Wiring Diagram

    Steering Wheel Interface Input (PAC SWI-PS required) FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XML8110 uses one 10 amp ATM fuse located beside the wiring connector.
  • Page 4 XML8110 OPERATION  Control Locations - Receiver (Closed) Volume Power Tune / Track Down Mode Audio / Menu Talk Preset 1 Preset 2 Preset 3 Preset 4 Preset 5 Preset 6 End Call / Mute Display Tune / Track Up Band...
  • Page 5 Control Locations - Receiver (Open) LCD Display iPod Dock Expansion Slot Tune / Track Up Mode Play / Pause XML8110 OPERATION Tune / Track Down Reset End Call / Mute Volume Down Volume Up Talk...

  • Page 6: Control Locations - Remote

    XML8110 OPERATION  Control Locations - Remote Mode Power ( )/Select Volume Up Audio / Menu Tune / Track Up Volume Down Scan / PS / Key # Preset 2 / Random Preset 3 / Intro Preset 6 / Folder Up Preset 5 / Folder Down...

  • Page 7: General Operation

    The clock will display 12-hour AM/PM time in USA frequency spacing mode (PM 10 : 00). In European frequency spacing mode, the clock will display 24-hour time (22:00). Expansion Slot The expansion slot provides an easy way to upgrade the XML8110 with new features. Check www.dualav.com for more details.

  • Page 8: Setup Menu

    XML8110 OPERATION General Operation Setup Menu Menu Exit Menu Function Options Auto Station  Auto Store Store Frequency US Tuner Frequency  Spacing Frequency EU Auxiliary On Auxiliary  Input Auxiliary Off Rear/Sub Sub Rear/Sub RCA output Rear/Sub Rear Loud Off Loudness  Curve Loud On Clock Off Clock  Display Clock On Beep Off Beep Confirmation...
  • Page 9 XML8110 OPERATION General Operation Press AUDIO/MENU momentarily to select between Bass, Audio Treble, Balance, Fader, EQ, Subwoofer* and Source Volume Level. BASS TREBLE BALANCE FADER SUBWOOFER* SOURCE LEVEL Press AUDIO/MENU until Bass appears, then rotate the Bass volume knob left/right to adjust (-6 minimum / +6 maximum).

  • Page 10: Am/Fm Tuner Operation

    XML8110 OPERATION AM/FM Tuner Operation Seek Tuning Manual Tuning Band  Storing and Recalling  Station Presets Auto Station Store Press TUNE or TUNE  seek the next strong station. Press TUNE or TUNE  frequency up or down one step at a time. Press and hold to advance quickly. Press BAND to select between FM1, FM2, FM3, AM1 and AM2 bands.
  • Page 11 XML8110 OPERATION iPod Dock Operation To open the XML8110 and use the iPod dock, pull outward from the top of the front panel. The front panel will rotate open. Continue rotating the front panel downward. The front panel stops when it reaches the fully open position.
  • Page 12 XML8110 OPERATION  iPod Dock Operation Some iPods have a thinner design, and may require changing the rear rubber support at the back of the iPod dock for the best fit. To change the rear rubber support, pull upward on support to remove it. Then replace the support with the thicker rubber support that is included in the box.
  • Page 13  Song Select Pause Volume XML8110 OPERATION Insert the iPod into the XML8110's iPod Docking Station following the instructions on pages 11 and 12. The iPod can be controlled directly from the iPod, or controlled using the inside panel buttons shown below: Press to skip to the beginning of the next song.

  • Page 14: Bluetooth Operation

    The BTM60 device name is "DUAL_BTM60."   The password for the DUAL BTM60 is 1234.  Paired Devices List The XML8110 will remember the last 8 devices that were paried. To access the list of previously paired devices, follow these instructions: • Disconnect any mobile device that may be connected by pressing • Press DISP momentarily to cycle through the list of 8 previously paired devices.
  • Page 15 Hold Ending a Phone Call If the phone call was received, the head unit will return to previous mode when call is ended. XML8110 OPERATION Bluetooth Description once. "Enter Number" will be shown, then An "_" will to begin dialing. to receive a call. The phone icon in the display will to mute the BTM60's microphone during a call.
  • Page 16 XML8110 OPERATION Bluetooth  Operation ® Function To view the 10 most recent calls , press time. "Recent Calls" will be displayed. A list of the most recent missed, dialed, or received calls will appear, sorted by time, beginning with the most recent call.
  • Page 17 Bluetooth Streaming Audio Operation The XML8110 supports A2DP (advanced audio distribution profile) wireless streaming audio from your Bluetooth mobile device directly to your head unit. You can also control your music from the front panel of the head unit using AVRCP (audio video remote control profile).

  • Page 18: Limited One Year Warranty

    This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase.

  • Page 19: Troubleshooting - General

    Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. XML8110 OPERATION Troubleshooting - General Cause incorrect voltage Black wire not connected...

  • Page 20: Specifications

    XML8110 OPERATION Specifications FM Tuner AM Tuner General Power Output: 18 Watts RMS x 4 channels at 4 ohms and < 1% THD+N Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms) Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity:...

  • Page 21: Fcc Compliance

    Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. XML8110 OPERATION FCC Compliance...
  • Page 22 Notes...
  • Page 23 Notes...
  • Page 24 Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2009 Dual Electronics Corp. All rights reserved. iPod is a trademark of Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Namsung is under license.
