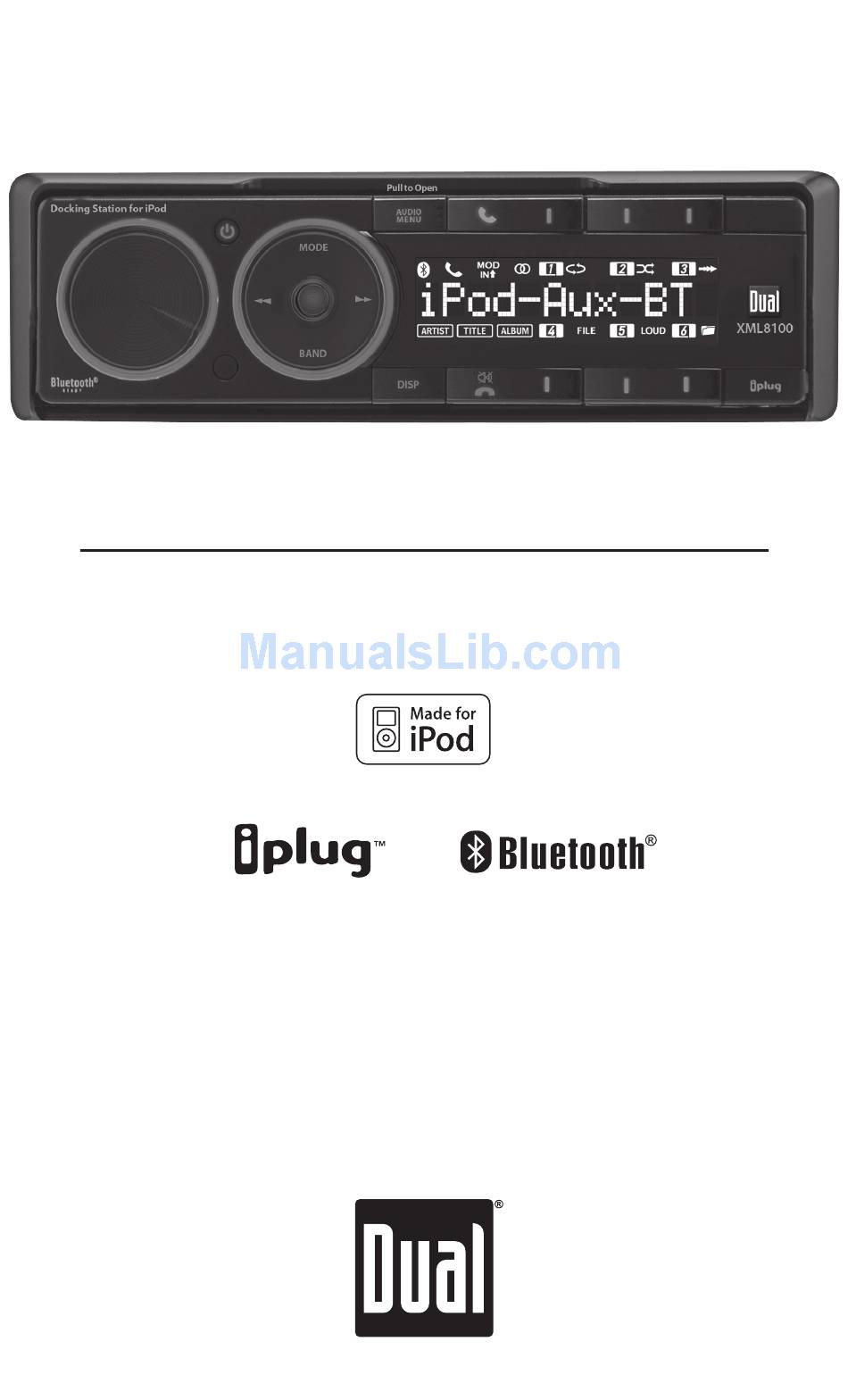

- Page 1 XML8100 INSTALLATION/OWNER'S MANUAL In-Dash AM/FM/Bluetooth ® Ready Docking Station READY...
- Page 2 XML8100 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
-
Page 3: Wiring Diagram
Steering Wheel Interface Input (PAC SWI-PS required) FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XML8100 uses one 10 amp ATM fuse located beside the wiring connector. - Page 4 XML8100 OPERATION Control Locations - Receiver (Closed) Volume Power Tune / Track Down Mode Audio / Menu Talk Preset 1 Preset 2 Preset 3 Preset 6 Preset 5 Preset 4 End Call / Mute Display Tune / Track Up Band / Play / Pause...
- Page 5 Control Locations - Receiver (Open) LCD Display Dock for iPod ® Expansion Slot Tune / Track Up Mode Play / Pause / Band XML8100 OPERATION Tune / Track Down Reset End Call / Mute Volume Down Volume Up Talk...
-
Page 6: Control Locations - Remote
XML8100 OPERATION Control Locations - Remote Mode Power ( )/Select Volume Up Audio / Menu Tune / Track Up Volume Down Scan / PS / Key # Preset 2 / Random Preset 3 / Intro Preset 6 / Folder Up Preset 5 / Folder Down... -
Page 7: General Operation
The clock will display 12-hour AM/PM time in USA frequency spacing mode (PM 10 : 00). In European frequency spacing mode, the clock will display 24-hour time (22:00). Expansion Slot The expansion slot provides an easy way to upgrade the XML8100 with new features. Check www.dualav.com for more details. -
Page 8: Setup Menu
XML8100 OPERATION General Operation Setup Menu Menu Exit Menu Function Options Auto Station Auto Store Store Frequency US Tuner Frequency Spacing Frequency EU Auxiliary On Auxiliary Input Auxiliary Off Rear/Sub Sub Rear/Sub RCA output Rear/Sub Rear Loud Off Loudness Curve Loud On Clock Off Clock Display Clock On Beep Off Beep Confirmation... - Page 9 XML8100 OPERATION General Operation Press AUDIO/MENU momentarily to select between Bass, Audio Treble, Balance, Fader, EQ, Subwoofer* and Source Volume Level. BASS TREBLE BALANCE FADER SUBWOOFER* SOURCE LEVEL Press AUDIO/MENU until Bass appears, then rotate the Bass volume knob left/right to adjust (-6 minimum / +6 maximum).
-
Page 10: Am/Fm Tuner Operation
XML8100 OPERATION AM/FM Tuner Operation Seek Tuning Manual Tuning Band Storing and Recalling Station Presets Auto Station Store Press TUNE or TUNE seek the next strong station. Press TUNE or TUNE frequency up or down one step at a time. Press and hold to advance quickly. Press BAND to select between FM1, FM2, FM3, AM1 and AM2 bands. - Page 11 XML8100 OPERATION Dock for iPod Operation To open the XML8100 and use the dock, pull outward from the top of the front panel. The front panel will rotate open. Continue rotating the front panel downward. The front panel stops when it reaches the fully open position.
- Page 12 XML8100 OPERATION Dock for iPod Operation Some iPod devices have a thinner design, and may require changing the rear rubber support at the back of the dock for the best fit. To change the rear rubber support, pull upward on support to remove it. Then replace the support with the thicker rubber support that is included in the box.
-
Page 13: Operation Of Ipod
Song Select Pause Volume XML8100 OPERATION Insert the iPod device into the XML8100's Dock, following the instructions on pages 11 and 12. The iPod device can be controlled directly from the iPod device's interface, or controlled using the inside panel buttons shown below: Press to skip to the beginning of the next song. -
Page 14: Bluetooth Operation
The BTM60 device name is "DUAL_BTM60." The password for the DUAL BTM60 is 1234. Paired Devices List The XML8100 will remember the last 8 devices that were paried. To access the list of previously paired devices, follow these instructions: • Disconnect any mobile device that may be connected by pressing • Press DISP momentarily to cycle through the list of 8 previously paired devices. - Page 15 Hold Ending a Phone Call If the phone call was received, the head unit will return to previous mode when call is ended. XML8100 OPERATION Bluetooth Description once. "Enter Number" will be shown, then An "_" will to begin dialing. to receive a call. The phone icon in the display will to mute the BTM60's microphone during a call.
- Page 16 XML8100 OPERATION Bluetooth Operation ® Function To view the 10 most recent calls , press time. "Recent Calls" will be displayed. A list of the most recent missed, dialed, or received calls will appear, sorted by time, beginning with the most recent call.
- Page 17 Bluetooth Streaming Audio Operation The XML8100 supports A2DP (advanced audio distribution profile) wireless streaming audio from your Bluetooth mobile device directly to your head unit. You can also control your music from the front panel of the head unit using AVRCP (audio video remote control profile).
-
Page 18: Limited One Year Warranty
This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase. -
Page 19: Troubleshooting - General
One or more speaker wires touching (but no sound) each other or touching chassis ground Yellow or red wire touching chassis Unit blows fuses Speaker wires touching chassis ground XML8100 OPERATION Troubleshooting - General Cause incorrect voltage Black wire not connected Fuse blown Speaker wires not connected... -
Page 20: Specifications
XML8100 OPERATION Specifications FM Tuner AM Tuner General Power Output: 17 Watts RMS x 4 channels at 4 ohms and < 1% THD+N Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms) Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity:... -
Page 21: Fcc Compliance
Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. XML8100 OPERATION FCC Compliance... - Page 22 Notes...
- Page 23 Notes...
- Page 24 Toll Free: 1-866-382-5476 www.dualav.com ©2010 Dual Electronics Corp. All rights reserved. iPod is a trademark of Apple Inc., registered in the U.S. and other countries. “Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.
