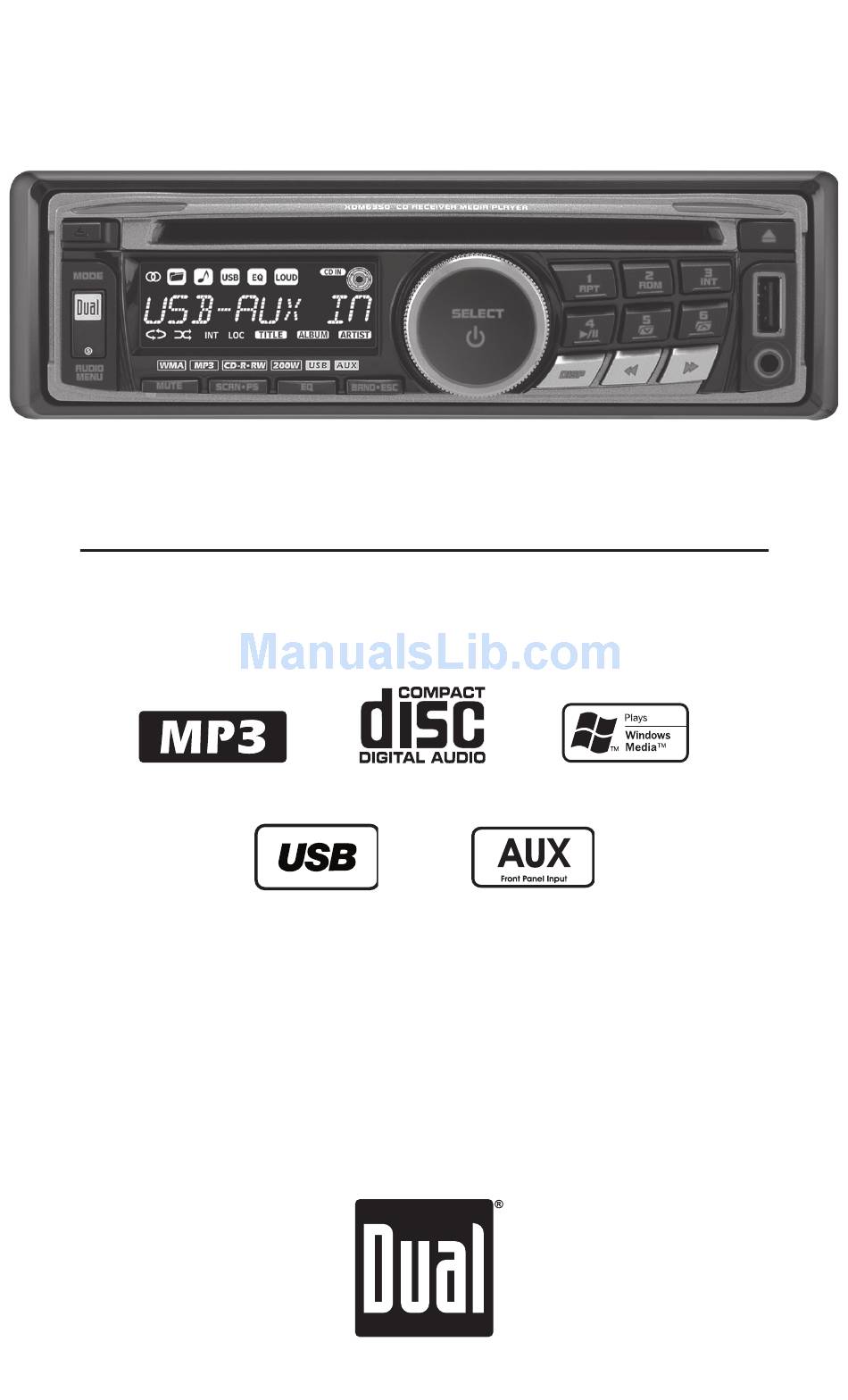

- Page 1 XDM6350 INSTALLATION/OWNER'S MANUAL AM/FM/CD/MP3/WMA/USB/3.5mm Receiver with Detachable Face...
-
Page 2: Getting Started
XDM6350 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 3: Replacing Fuse
(PAC SWI-PS required) Wiring Diagram Antenna Connector FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XDM6350 uses one 10 amp ATM fuse located beside the wiring connector. -
Page 4: Control Locations - Receiver
Preset 6/Folder Up Eject The XDM6350 allows playback of your favorite MP3 and WMA files recorded on CD-R and CD-RW discs. Its powerful on-board DSP processor decodes the compressed audio while maintaining near-CD sound quality. An internal SRAM buffer provides ESP (Electronic... -
Page 5: Control Locations - Remote
Mode Power ( )/Select Volume Up Audio/Menu Tune/Track Up Volume Down Scan/PS Preset 3/Intro Preset 2/Random Preset 6/Folder Up XDM6350 OPERATION Control Locations - Remote Preset 5/Folder Down Local/Distance Tuning Loudness Display Mute Preset 4/Play/Pause Preset 1/Repeat Band/ESC Tune/Track Down... -
Page 6: General Operation
XDM6350 OPERATION General Operation Faceplate Removal Semi-Permanent Faceplate Installation Power On/Off Mode Auxiliary Input Steering Wheel Input Interface Volume Mute Preset EQ Curves Reset Display Set the Clock Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. -
Page 7: Setup Menu
DEMO OFF Demonstration Mode DEMO ON XDM6350 OPERATION The clock will display 12-hour AM/PM time in USA frequency spacing mode (PM 10 : 00). In European frequency spacing mode, the clock will display 24-hour time (22:00). Press and hold AUDIO/MENU for more than 3 seconds to access the setup menu, then press AUDIO/MENU to cycle through menu options. - Page 8 XDM6350 OPERATION General Operation Press ESC to exit any menu adjustment mode. Escape Audio Press AUDIO/MENU momentarily to select between Volume (default), Bass, Treble, Balance, Fader, Subwoofer and Source Volume Level. VOLUME BASS TREBLE BALANCE FADER SUBWOOFER SOURCE LEVEL Bass Press AUDIO/MENU until BASS appears, then press SELECT ...
- Page 9 Press PS for more than two seconds to scan presets 1-6 on Preset Scan the current band, pausing for five seconds at each. Press PS again to cancel. XDM6350 OPERATION AM/FM Tuner Operation or TUNE for more than one second to or TUNE ...
-
Page 10: Cd Player Operation
XDM6350 OPERATION CD Player Operation Insert CD Eject CD Track Select Fast Forward and Reverse Pause Repeat Random Intro CD-R/CD-RW Compatibility With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Press EJECT to eject the CD. The unit will change to previous mode of operation (tuner, AUX or USB). - Page 11 Artist Icon Folder Icon Track Icon Character Support XDM6350 OPERATION When an MP3/WMA encoded disc is first inserted, “READING” will appear in the display. Depending on the number of files and folders, this may take several seconds. Press DISP to select between track name (default), song title, artist, track number or clock &...
- Page 12 XDM6350 OPERATION CD Player Operation - MP3/WMA Files Folder/File Search Mode Press SELECT to enter the folder/file search mode. The head unit will read the CD, and a list of folders and files from the CD will be displayed, starting from the current directory. Folder/File Navigation Turn the rotary encoder to cycle through the list of folders and files.
- Page 13 • FOLDER - Plays first 10 seconds of each track in folder. Note: Folder repeat, random and intro options only function on MP3/WMA discs recorded with more than one folder. XDM6350 OPERATION to select the previous folder. to select the next folder.
- Page 14 XDM6350 OPERATION CD Player Operation - MP3/WMA Files Media Compatibility Playback Order Compatible Recording Formats The following types of discs/files are compatible: • CD-ROM (ISO), CD-R, CD-RW • CD-DA • MP3 data • WMA data The following types of discs/files are not compatible: • WMA files that are protected by DRM (Digital Rights Management).
- Page 15 Information Sampling Frequency Rates Transfer Bit rates MP3 Tag Display Recommended Settings XDM6350 OPERATION An internal buffer provides ESP (Electronic Skip Protection) to virtually eliminate skipping. When playing a disc recorded with regular audio files (CD-DA or .WAV) and MP3/WMA files, the unit will play the MP3/WMA files only.
- Page 16 Step 3 Note Play MP3/WMA files from most mass storage devices by connecting them to the XDM6350's USB port. When a USB device is first connected, press MODE to access USB mode. “READING” will appear momentarily in the display. Depending on the number of files and folders, this may take several seconds.
- Page 17 Folder Access Repeat Random Intro XDM6350 OPERATION When a file is accessed, the clock and elapsed time will be displayed. Press DISP momentarily to select file name (default), song title, artist, track number or clock & elapsed time. TRACK NAME...
- Page 18 XDM6350 OPERATION USB Operation - MP3/WMA Files (Optional) Character Support Maximum character display information • Track name – 32 character maximum • Directory name – 32 character maximum • *Song title – 32 character maximum • *Artist name – 32 character maximum *Song title and artist name will only be displayed if included with the MP3/WMA file.
- Page 19 Information Sampling Frequency Rates Transfer Bit rates MP3 Tag Display USB Charging XDM6350 OPERATION Only MP3 files with filename extension (.mp3) can be played. Only WMA files with filename extension (.wma) can be played. Do not attempt to play non-MP3/WMA files with the MP3/WMA extension. 8kHz ~ 48kHz...
-
Page 20: Limited One Year Warranty
This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase. -
Page 21: Troubleshooting - General
CD mechanism position out of alignment Unit will not accept a disc CD transit screws still in place An invalid ID3 tag version is present NO SUPPORT appears on display XDM6350 OPERATION Troubleshooting - General Cause Check connections for proper voltage (11~16VDC) Check connection to ground Replace fuse Check connections at speakers... -
Page 22: Specifications
XDM6350 OPERATION Specifications CD Player FM Tuner AM Tuner General Power Output: 17 Watts RMS x 4 channels at 4 ohms and < 1% THD+N Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms) Frequency response: 10Hz-20kHz Channel separation @ 1kHz: D/A converter: 1 Bit... - Page 23 XDM6350 OPERATION Notes...
- Page 24 Toll Free: 1-866-382-5476 www.dualav.com ©2009 Dual Electronics Corp. All rights reserved. Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and or other countries. Other trademarks and trade names are those of their respective owners.
