Dual XD1215 Installation & Owner's Manual

Am/fm/cd receiver with detach face
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
XD1215
INSTALLATION/OWNER'S MANUAL
AM/FM/CD Receiver with Detach Face

Advertisement

Table of Contents
loading

Related Manuals for Dual XD1215

Summary of Contents for Dual XD1215

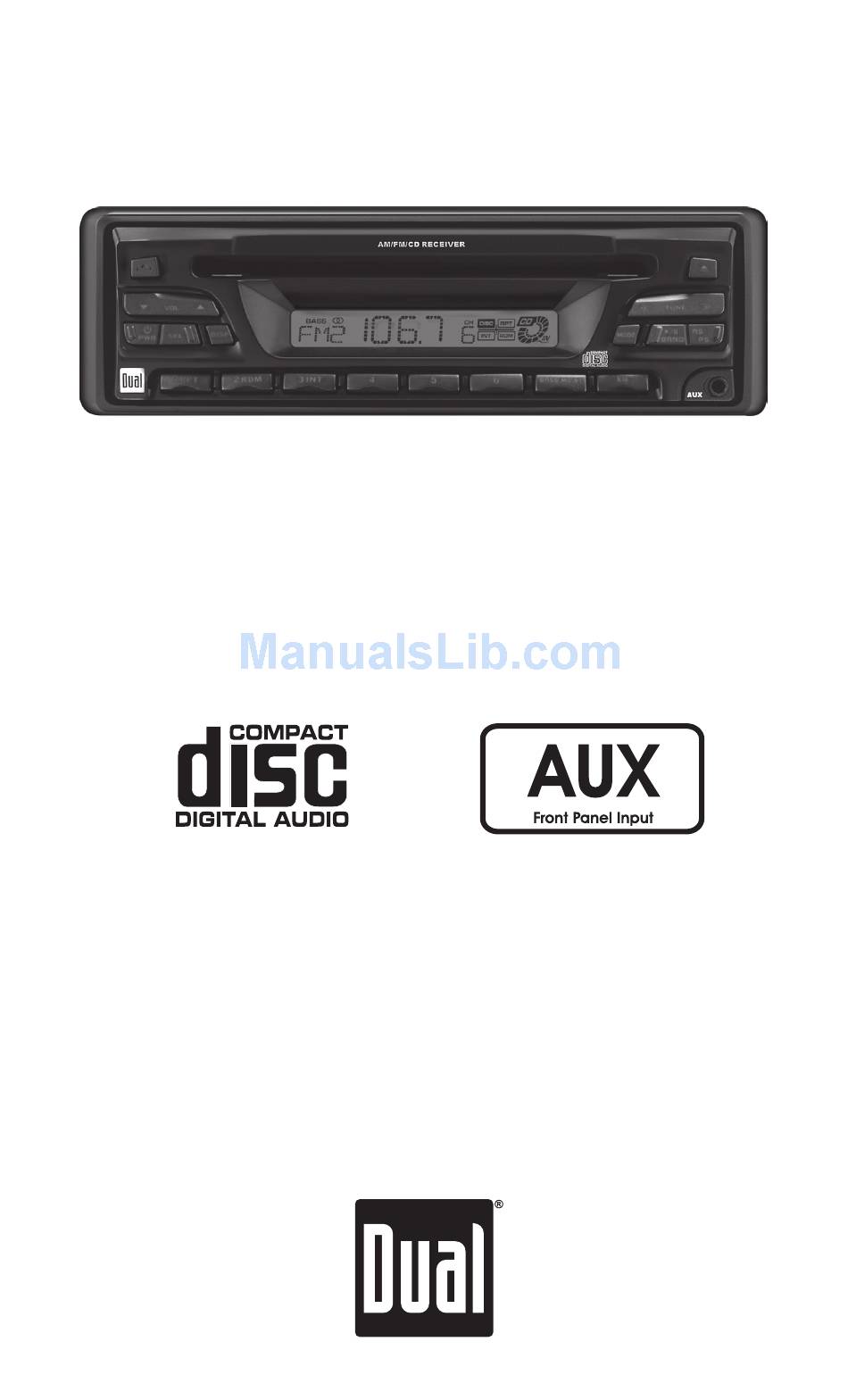

  • Page 1 XD1215 INSTALLATION/OWNER'S MANUAL AM/FM/CD Receiver with Detach Face...

  • Page 2: Preparation

    XD1215 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

  • Page 3: Wiring Diagram

    Using an incorrect fuse could damage the radio. The XD1215 uses one 5 amp AGC fuse located in-line. * Caution - Do not attach any speaker leads to ground as severe damage will occur.

  • Page 4: Control Locations

    XD1215 OPERATION Control Locations Volume Down Release Volume Up Display Mode Tune/Track Down Eject Tune/Track Up Auto Store/Preset Scan Auxiliary Input (3.5mm) Play/Pause/Band Bass Boost/Mono/Stereo Preset 6 Preset 5 Preset 4 Preset 3/CD Intro Preset 2/CD Random Preset 1/CD Repeat Select Power...

  • Page 5: General Operation

    XD1215 OPERATION General Operation Faceplate Removal Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. Semi-permanent Faceplate  Remove trim ring and install supplied #1 x 7/32” Phillips head Installation screw through left side of mounting frame into faceplate.
  • Page 6 XD1215 OPERATION General Operation 12/24-hour Clock  Reset Select Audio Bass Treble Balance Fader The clock will display 12-hour AM/PM time in USA   frequency spacing mode (PM 10:00). In European frequency spacing mode, the clock will display 24-hour time (22:00). Press the RESET button to reset the unit upon initial installation or if abnormal operation occurs.

  • Page 7: Tuner Operation

    Seek Tuning Manual Tuning FM Mono/Stereo Band Frequency Spacing   Storing and Recalling    Station Presets Automatically Store    Stations Preset Scan XD1215 OPERATION << >> Press TUNE   or  momentarily to seek the next strong station. << >> Press TUNE   or  for more than 2 seconds, then release. “MANU” will momentarily appear in the display.

  • Page 8: Cd Player Operation

    XD1215 OPERATION CD Player Operation Insert CD Eject CD Track Select Fast Forward and Reverse Pause Intro Repeat Random CD-R/CD-RW  Compatibility With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Press the EJECT button to stop and eject the CD. The unit will change to previous mode of operation (AM, FM, or auxiliary input).

  • Page 9: Troubleshooting

    Call us toll-free at 1-866-382-5476 E-mail us at cs@dualav.com Do not return the unit to the retailer. XD1215 OPERATION Troubleshooting Cause Check connections for proper voltage...

  • Page 10: Limited One-Year Warranty

    This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase.
  • Page 11 XD1215 OPERATION Notes  ...

  • Page 12: Specifications

    Power Output: 5 Watts RMS x 4 channels at 4 ohms and < 1% THD+N Signal to noise ratio: 75dBA (reference: 1 watt into 4 ohms) ©2008 Dual Electronics Corp. All rights reserved. Frequency response: 20Hz-20kHz Channel separation @ 1kHz: >65dB D/A converter: 1 Bit Tuning range: 87.5MHz-107.9MHz...
