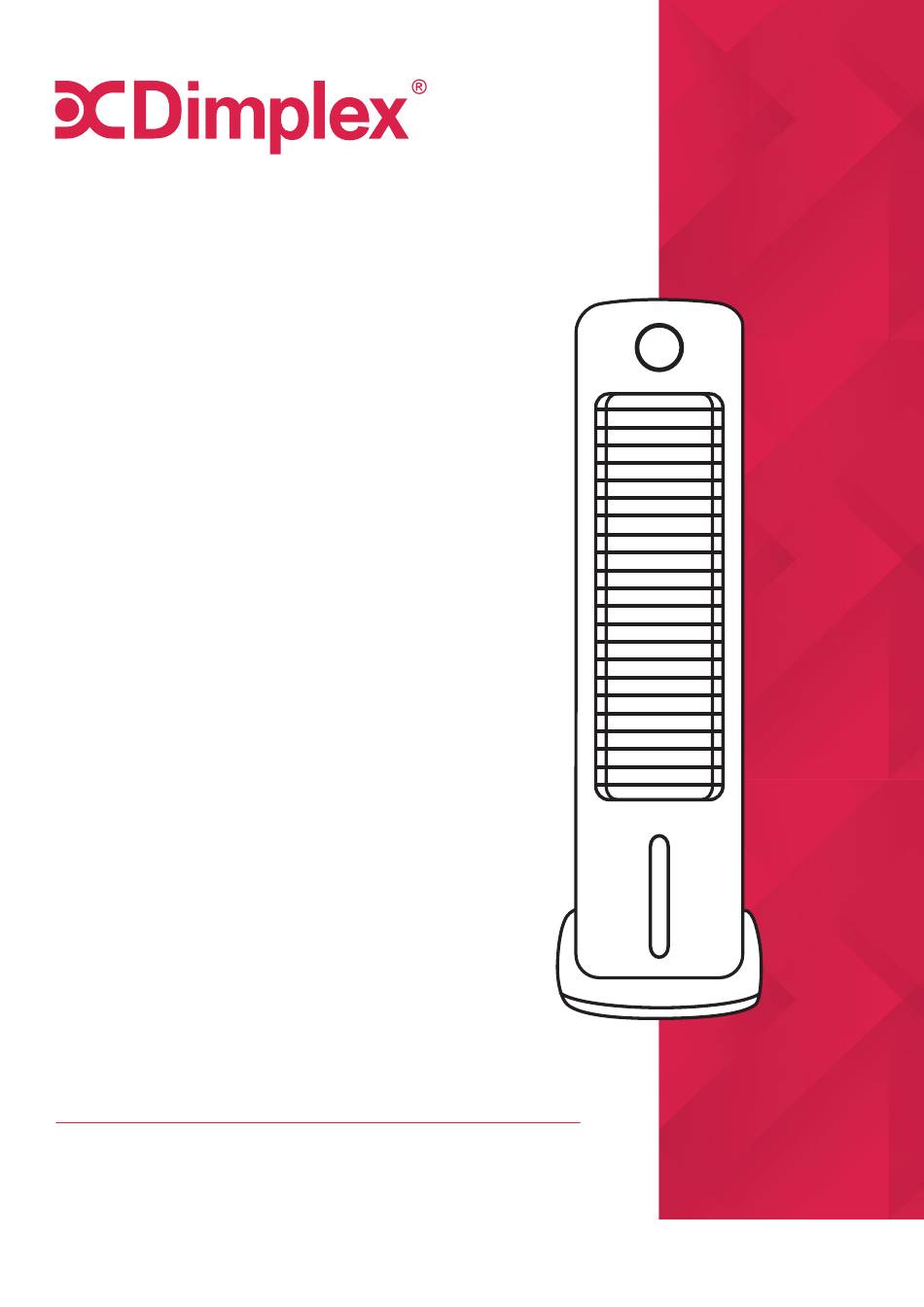

- Page 1 INSTRUCTION MANUAL 8L Evaporative Cooler Model: DCEVP8BW For domestic household use only.
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your evaporative cooler for the first time and keep them in a safe place.
- Page 3 • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...
- Page 4 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children If an extension Where the power may be left unattended lead may become cable may be overloaded damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 5: Specification
Specification Model no. DCEVP8BW Colour Black/White Power supply 220-240V~50Hz Rated power Speed settings Modes 3 (natural, normal & sleep) Turbo air speed 7m/s Water tank capacity Remote control Timer 0-9 hours Swing function Controls Button with LED display Max. room size... - Page 6 Parts Top panel Remote control storage Rear panel Rear screen Front panel (10) Cord winding frame Base (11) Water tank Display (12) Power cord Vertical blade Horizontal blade Remote Ice pack x 2...
- Page 7 Display & Control Panels Control Panel Fan speed Timer Swing Wind Cooler/ On/Off Mode Humidifier Display Panel On/Off Fan speed Wind Timer Swing Cooler/ Mode Humidifier...
-
Page 8: Remote Control
Remote Control On/Off Swing Display Speed Timer Cooler/Humidifier Mode Functions Note: The buzzer beeps twice when the power supply is first turned on. The unit is in ‘standby’ until the On/Off button is pressed. The horizontal louvres need to be opend manually by hand. ON/OFF Press the ON/OFF button to turn the unit ON. - Page 9 Functions TIMER The TIMER can be set in 1 hour increments up to the maximum timer of 9 hours. The set time will be indicated on the display panel and the time indicator turns on and the display panel flashes to display the set time, indicating that it is in the timer setting state.
-
Page 10: Other Functions
Other Functions Environmental protection function: In the power on state, if there is no operation of any key (including the remote control) for 1 minute all LEDs will dim to 33% of their original brightness. Press the key again to restore the brightness and perform the corresponding operation. Water level protection function: When the cooling function is first turned on, the water pump works for 50 seconds. -
Page 11: Operation & Set Up
Operation & Set Up 1. Remove the unit from its packaging 2. To begin using the COOLER/HUMIDIFIER function, rotate the Cord winding frame clips 90° and remove the water tank located at the back of the unit and fill to the MAX fill line. Replace the water tank and secure the clips. 3. - Page 12 Cleaning Your unit is designed to remove dirt and other atmospheric impurities by drawing air through the wet curtain. DO NOT block the air filter, as this will impair the efficiency of the unit. Wet Curtain • In a smoky or dusty environment, this wet curtain will become grey in colour after one to two months.
-
Page 13: Maintenance
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,... - Page 16 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
