Delta 3584 Series Installation Manual

Delta 3584 Series Installation Manual

Two handle widespread lavatory faucets
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
U P
®
C
®
ASME A112.18.1 / CSA B125.1
Models/Modelos/Modèles
3583 & 3584
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
T E FLO N
For easy installation of your Delta
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Delta
facilement, vous devez:
• LIRE TOUTES les instructions avant de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
3/32" (2.38mm)
L
US. Pat. 3,645,493, 3,786,995, 4,523,604, 4,562,960, 4,593,430, 4,218,785, 4,577,653, 4,765,365
1
TWO HANDLE WIDESPREAD
LAVATORY FAUCETS
LLAVES DE LAVAMANOS
EXTENDIDAS DE DOS
MANIJAS
ROBINETS À ENTRAXE LONG
À DEUX POIGNÉES POUR
LAVABO
T E FLO N
L
5/13/08
Rev. A

Advertisement

Table of Contents
loading

Related Manuals for Delta 3584 Series

Summary of Contents for Delta 3584 Series

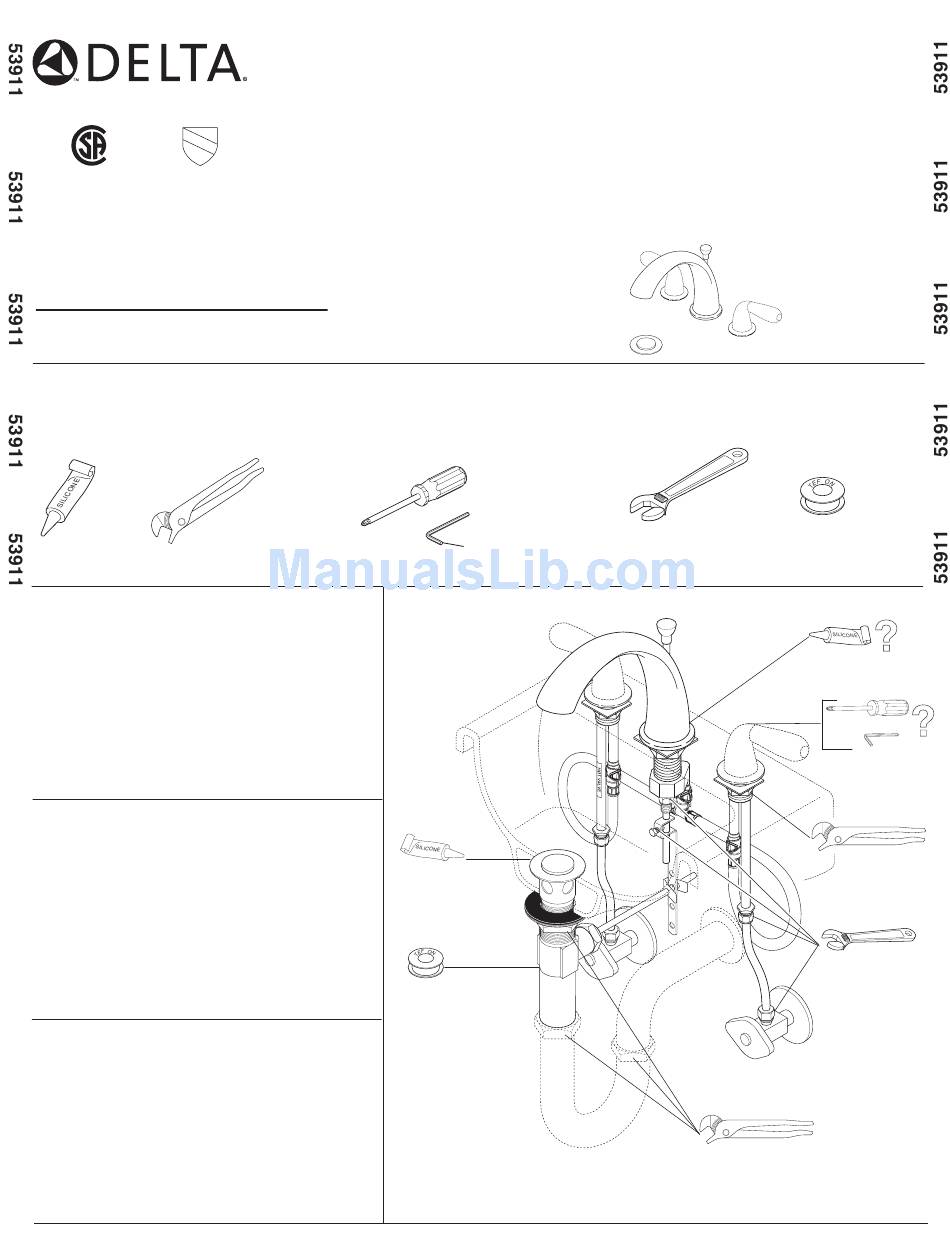

  • Page 1 • To READ ALL warnings, care, and maintenance information. • To purchase the correct water supply hook-up. Para instalación fácil de su llave Delta usted necesitará: • LEER TODAS las instrucciones completamente antes de empezar. • LEER TODOS los avisos, cuidados, e información de mantenimiento.
