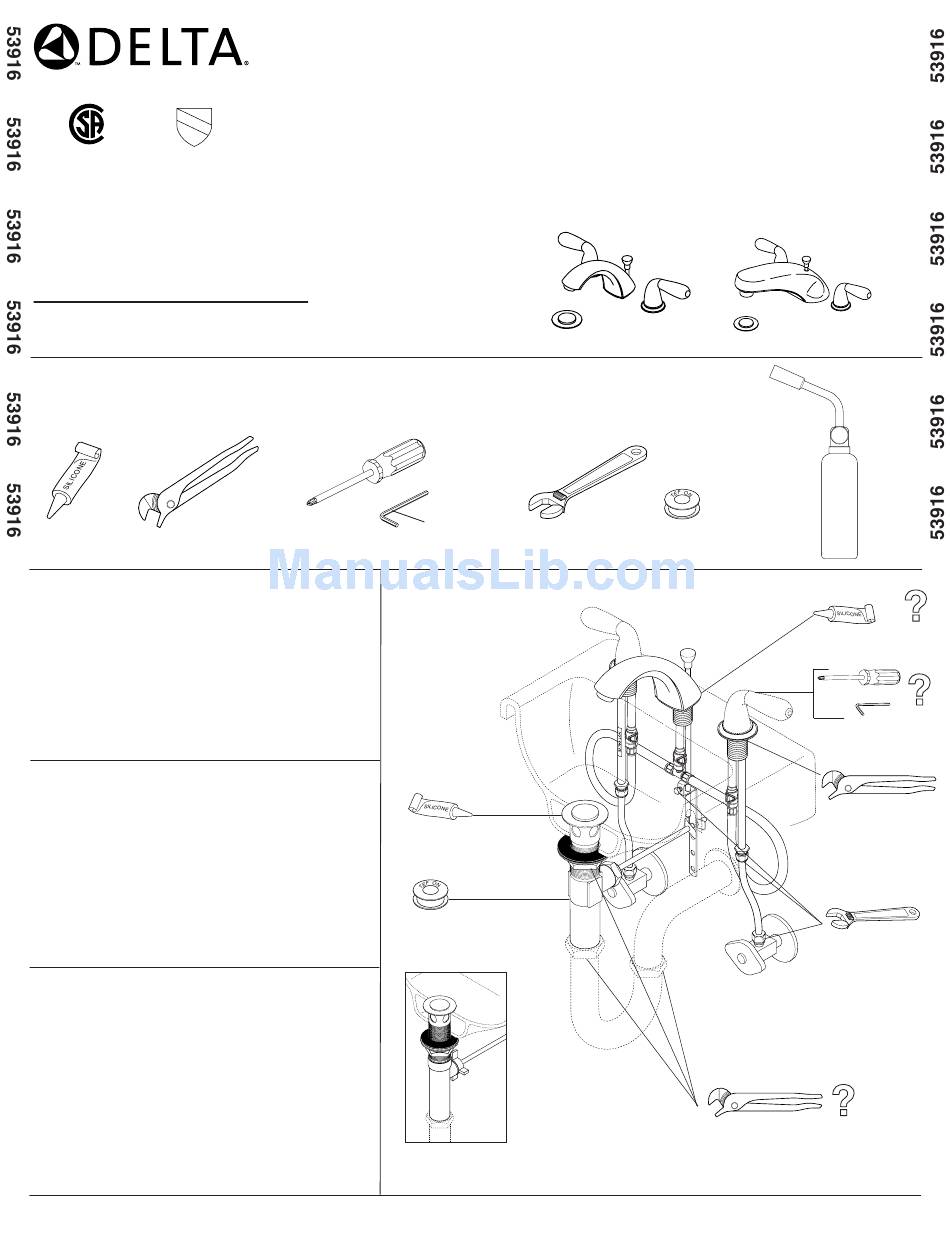

U P
®
C
®
ASME A112.18.1/ CSA B125.1
Models/Modelos/Modèles
3530, 3543 & 3544
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
T E FLO N
For easy installation of your Delta
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Delta
facilement, vous devez:
• LIRE TOUTES les instructions avant
de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
9/16/08
Rev. B
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
3/32" (2.38mm)
L
US. Pat. 3,645,493, 3,786,995, 4,523,604, 4,562,960, 4,593,430, 4,218,785, 4,577,653, 4,765,365
1
TWO HANDLE WIDESPREAD
LAVATORY FAUCETS
LLAVES DE LAVAMANOS
EXTENDIDAS DE DOS MANIJAS
ROBINETS À ENTRAXE LONG À
DEUX POIGNÉES POUR LAVABO
T E FLO N
L
?
Le
?
Leak Check
3750016
?
Advertisement
Table of Contents
Related Manuals for Delta 3530 Series
Summary of Contents for Delta 3530 Series
- Page 1 • To READ ALL warnings, care, and maintenance information. • To purchase the correct water supply hook-up. Para instalación fácil de su llave Delta usted necesitará: • LEER TODAS las instrucciones completamente antes de empezar. • LEER TODOS los avisos, cuidados, e información de mantenimiento.
-
Page 2: Cleaning And Care
Delta Faucet Company recommends using a professional plumber for all installation & repair. Delta will replace, FREE OF CHARGE, during the warranty period, any part or finish that proves defective in material and/or workmanship under normal installation, use & service. Replacement parts may be obtained by calling 1-800-345-DELTA (in the U.S. - Page 3 ▲Specify Finish Especifíque el Acabado Précisez le Fini RP26533 Metal Pop-Up Assembly Less Lift Rod ▲ RP26533 Ensamble de Metal del Desagüe Automático Sin la Barra de Alzar ▲ Renvoi Mécanique en Métal RP26533 Sans la Tige de Manoeuvre ▲ RP5648▲...
- Page 4 3530 Series/Serie/Seria RP5651 Pop-Up Assembly RP26151▲ Lift Rod Barra de Alzar Tige de Manoeuvre RP38296▲ Spout Assembly Ensamble del Tubo de Salida RP19754▲ Aerator Aireador Aérateur RP13938 O-Ring Anillo “O” Joint Torique RP26142 Gasket Empaque Joint RP6087 Nut & Washer Tuerca y Arandela Écrou et Rondelle...
- Page 5 Properly align base (1) on end valves. Slide hot (2) and cold (3) end valves with gaskets (4) through sink. NOTE: Hot side end valve is labeled (5)! Pass washer (1) then nut (2) over copper tube (3) and screw on end valve. Secure with wrench.
- Page 6 Metal Pop-Up Remove stopper (1) and flange (2). Screw nut (1) all the way down. Push washer (2) and gasket (3) down. Remove tailpiece (1) from body (2), add Teflon tape (3), replace tailpiece. ® Desagüe automático de metal Quite el tapón (1) y el reborde (2). Atornille la tuerca (1) completamente hasta abajo.
- Page 7 Pop-Ups with Metal Flange and Plastic Tail Piece Remove stopper (1), brass nut & washer (2), black gasket (3) and tail piece (4). Apply silicone to underside of flange (5). Insert flange into sink. Install black gasket (3), washer and brass nut (2) onto flange (5) from below sink but do not tighten brass nut (2).
-
Page 8: Maintenance
1/2" (13 mm) IPS Make Connections to water lines: Choose hook-ups for 1/2" I.P.S. connections: (1) Ball nose riser (3/8" O.D. copper tubing), or (2) 1/2" I.P.S. faucet connector Use the enclosed coupling nuts (3) with the ball nose risers (1). Use two wrenches when tightening.
