Aquatec® R / F / XL

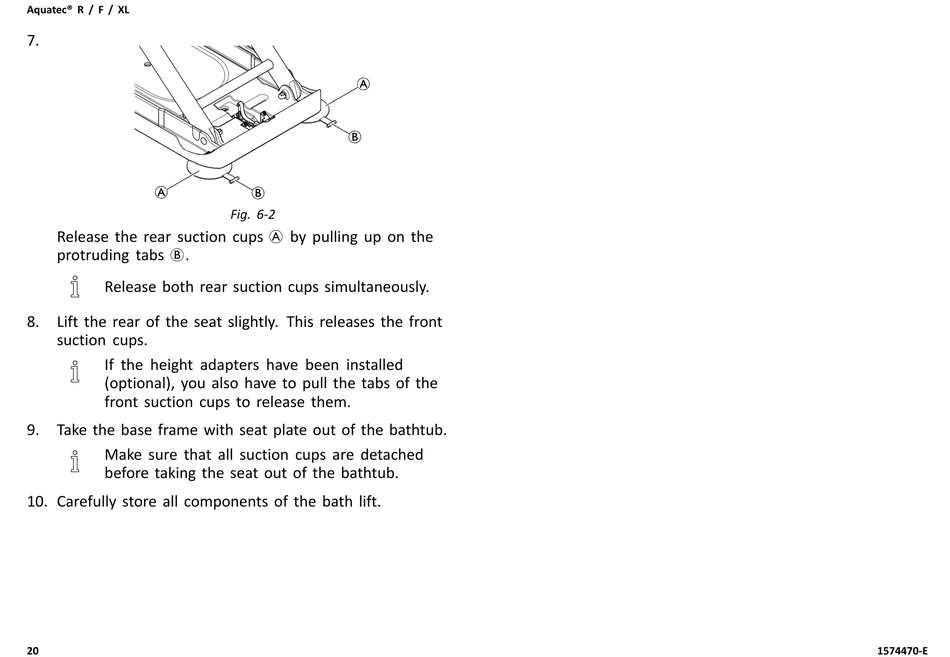

7.
Release the rear suction cups A by pulling up on the
protruding tabs B.
Release both rear suction cups simultaneously.
8. Lift the rear of the seat slightly. This releases the front
suction cups.
If the height adapters have been installed
(optional), you also have to pull the tabs of the
front suction cups to release them.
9. Take the base frame with seat plate out of the bathtub.
Make sure that all suction cups are detached
before taking the seat out of the bathtub.
10. Carefully store all components of the bath lift.
20
Fig. 6-2
1574470-E
