This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Product Name:
Model/ Type/ Machine Type:
Name of Responsible Party:
Address of Responsible Party:
Contact Person:
Phone No.:
Fax No.:
We, AOpen Incorporated, hereby declare that the equipment bearing the trade name and model
number specified above was tested conforming to the applicable FCC Rules under the most
accurate measurement standards possible, and that all the necessary steps have been taken and
are in force to assure that production units of the same equipment will continue to comply with
the Commissions requirements.
---------------------------
Gerald Wang / PM Director
Declaration of Conformity
CD-ROM Drive
CD-952E/AKH
AOpen Incorporated
7F, 137, Sec.2, Chien Kuo N. Road
Taipei
Taiwan, R. O. C.
Gerald Wang
886-2-2696-1333
886-2-8691-2233
AOpen Incorporated
AOpen Incorporated
7F, 137, Sec.2, Chien Kuo N. Road
Taipei
Taiwan, R. O. C.
Tel: 886-2-2696-1333
Fax: 886-2-8691-2233
ISL-00A105FB

Advertisement

Table of Contents
loading

Related Manuals for AOpen CD-952E/AKH

Summary of Contents for AOpen CD-952E/AKH

  • Page 1 Fax No.: 886-2-8691-2233 We, AOpen Incorporated, hereby declare that the equipment bearing the trade name and model number specified above was tested conforming to the applicable FCC Rules under the most accurate measurement standards possible, and that all the necessary steps have been taken and are in force to assure that production units of the same equipment will continue to comply with the Commissions requirements.
  • Page 2 TEST REPORT DECLARATION OF CONFORMITY CD-ROM Drive Model/ Type/ Machine Type CD-952E/AKH Applied by: AOpen Incorporated 7F, 137, Sec.2, Chien Kuo N. Road Taipei Taiwan, R. O. C Test Performed by: (NVLAP Lab. Code: 200234-0) International Standards Laboratory No. 21, Alley 37, Lane 122, Sec. 2 Hsiwan Rd.

  • Page 3: Table Of Contents

    Declaration of Conformity Contents of Report General ....................1 Certification of Accuracy of Test Data...................1 Summary..........................2 1.2.1 Description of Equipment Under Test (EUT).....................2 1.2.2 Description of EUT and Support Equipment Included in Tests..............2 1.2.3 Test Procedure and Specification ........................2 1.2.4 Tests Performed..............................2 Powerline Conducted Emissions ............

  • Page 4: General

    Equipment Tested: CD-ROM Drive Model/ Type/ Machine Type: CD-952E/AKH Applied by AOpen Incorporated Sample received Date: Jun. 30, 2000 Final test Date : Jul. 4, 2000 Temperature 26ºC(Conduction Test);...

  • Page 5: Summary

    A more detailed, technical description of the EUT is contained in appendix H. 1.2.2 Description of EUT and Support Equipment Included in Tests The EUT is a CD-ROM Drive (Model/ Type/ Machine Type: CD-952E/AKH), which was tested with the following support units: 1.

  • Page 6: Powerline Conducted Emissions

    Declaration of Conformity Powerline Conducted Emissions 2.1 Configuration and Procedure 2.1.1 EUT Configuration The conducted emission test setups are in accordance with Figs 9, 10(a) and 10(b) of ANSI C63.4-1992, CFR 47 Part 15 Subpart B; or EN55022:1994/ A1:1995/A2:1997; CISPR 22:1993/A1:1995/A2:1996.

  • Page 7: Test Data: Play Audio Cd

    Declaration of Conformity 2.2 Test Data: Play Audio CD Power Line Conducted Emissions (Average) Table 2.2.1 Power Line Conducted Emissions Conductor Frequency Amplitude Limit Margin (MHz) (dBuV) (dBuV) (dB) 0.269 40.10 51.15 -11.05 0.404 39.40 47.77 -8.37 0.769 25.60 46.00 -20.40 0.925 27.50...
  • Page 8 Declaration of Conformity Power Line Conducted Emissions (Quasi-Peak) Table 2.2.2 Power Line Conducted Emissions Conductor Frequency Amplitude Limit Margin (MHz) (dBuV) (dBuV) (dB) 0.151 44.50 65.95 -21.45 0.266 40.80 61.23 -20.43 0.406 40.40 57.73 -17.33 0.925 32.30 56.00 -23.70 1.810 30.50 56.00 -25.50...

  • Page 9: Open Field Radiated Emissions

    Declaration of Conformity Open Field Radiated Emissions 3.1 Configuration and Procedure 3.1.1 EUT Configuration The radiated emissions test setups are in accordance with Figs 10(c) and 10(d) of ANSI C63.4-1992, CFR 47 Part 15 Subpart B; or EN55022:1994/ A1:1995/A2:1997; CISPR 22:1993/A1:1995/A2:1996.

  • Page 10: Test Data:.play Audio Cd

    Declaration of Conformity 3.2 Test Data:.Play Audio CD Open Field Radiated Emissions (Horizontal) Table 3.2.1 Antenna Meter Reading Correction Factor Corrected Emissions Type Polar. Freq. Ampl. Ant. Cable Pre-Ampl. Ampl. Limit Margin* (MHz) (dBuV) (dB/m) (dB) (dB) (dBuV/m) (dBuV/m) (dB) BILOG Horiz.
  • Page 11 Declaration of Conformity Open Field Radiated Emissions (Vertical) Table 3.2.2 Antenna Meter Reading Correction Factor Corrected Emissions Type Polar. Freq. Ampl. Ant. Cable Pre-Ampl. Ampl. Limit Margin* (MHz) (dBuV) (dB/m) (dB) (dB) (dBuV/m) (dBuV/m) (dB) BILOG Vert. 33.86 6.20 15.66 1.04 0.00 22.90...

  • Page 12: Appendix

    Declaration of Conformity Appendix 4.1 Appendix A: Warning Labels Label Requirements A Class B digital device subject to Declaration of Conformity of FCC shall carry a label which includes the following statement: The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.

  • Page 13: Appendix B: Warning Statement

    Declaration of Conformity -10- 4.2 Appendix B: Warning Statement Statement Requirements The operators manual for a Class B digital device shall contain the following statements or their equivalent: * * * W A R N I N G * * * This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 14: Appendix C: Measurement Procedure For Powerline Conducted Emissions

    Declaration of Conformity -11- 4.3 Appendix C: Measurement Procedure for Powerline Conducted Emissions The EUT is set up in accordance with the suggested configuration given in ANSI C63.4-1992, Part Subpart EN55022:1994/ A1:1995/A2:1997; CISPR 22:1993/A1:1995/A2:1996. The measurements are performed in a 3.5 x 3.4 x 2.5 (m) shielded room.

  • Page 15: Appendix D: Test Procedure For Radiated Emissions

    Declaration of Conformity -12- 4.4 Appendix D: Test Procedure for Radiated Emissions Preliminary Measurements in the Anechoic Chamber The radiated emissions are initially measured in the anechoic chamber at a measurement distance of 3 meters. Desktop EUTs are placed on a wooden stand 0.8 meter in height. The measurement antenna is 3 meters from the EUT.

  • Page 16: Appendix E: Description Of Open Field Test Site

    Declaration of Conformity -13- 4.5 Appendix E: Description of Open Field Test Site The open field test site is located on a valley in Hsichih Chen and adjacent to Taipei City. The direct distance to Taipei City is about 12 Km. It is surrounded by hills measuring about 100 meters high.

  • Page 17: Appendix F: Test Equipment

    Declaration of Conformity -14- 4.6 Appendix F: Test Equipment 4.6.1 Test Equipment List Calibration traceable to NIST or national or international standards. * - Equipment calibration will be repeated every 6 months. # - Equipment calibration will be repeated every year. ** - The Use For column with C means the equipment is used for the measurement of conducted emission.

  • Page 18: Software For Controlling Spectrum/Receiver And Calculating Test Data

    Declaration of Conformity -15- Equipment Model Start Last Next Service Date Cal. Date Cal. Date LISN 1 R & S, ESH2-Z5 Dec. 15, 1988 *Apr. 28, 2000 *Oct. 27, 2000 S/N: 890485/013 LISN 2 EMCO 3825/2 Oct. 20, 1990 *Apr. 28, 2000 *Oct.

  • Page 19: Appendix G: Layout Of Eut And Support Equipment

    Declaration of Conformity -16- 4.7 Appendix G: Layout of EUT and Support Equipment 4.7.1 General Conducted Test Configuration Shielded Room 40 cm Load Active Non-Conducted Table LISN 80 cm LISN Metal Ground Plane Filter Filter Spectrum Control PC Printer International Standards Laboratory Report Number: ISL-00A105FB NVLAP Lab.

  • Page 20: General Radiation Test Configuration

    Declaration of Conformity -17- 4.7.2 General Radiation Test Configuration 10 M Antenna Mast Non-Conducted Load Broadband or Dipole Table Active Antenna Antenna To Spectrum height can be moved from 1 m to 4 m, 80 cm To Remote Antenna and Controller turntable distance 3 m to 10 m.

  • Page 21: Appendix H: Description Of Support Equipment

    Declaration of Conformity -18- 4.8 Appendix H: Description of Support Equipment 4.8.1 Description of Support Equipment Support Unit 1. Description: Personal Computer Model: IBM 2170 Serial No.: Power Supply Type : Switching Delta (Model: DPS-145PB-80A) Hard Disk Drive: Maxtor (Model: 91303D6) 13.3GB Floppy Driver: Panasonic (Model: JU256A276P ) CD-ROM Drive:...

  • Page 22: Acer Usb Mouse

    Declaration of Conformity -19- Support Unit 4. Description: Acer USB Mouse Model Number: MUSXT Serial Number: 81130159 Power Supply Type: Power Cord: FCC ID: (comply with FCC DOC) Support Unit 5. Description: KOKA Microphone Model Number: DM-510 Serial Number: Power Supply Type: Power Cord: FCC ID: Support Unit 6.

  • Page 23: Hp Printer

    Declaration of Conformity -20- Support Unit 10. Description: HP Printer (for parallel interface port) Model Number: 2225C Serial Number: Power Supply Type: Switching (AC to AC Xfmr, Wall Mounted Type) Power Cord: Nonshielded, Detachable With Grounding Pin FCC ID: DSI6XU2225 Support Unit 11.

  • Page 24: Software For Controlling Support Unit

    Declaration of Conformity -21- 4.8.2 Software for Controlling Support Unit A test program which generates a complete line of continuously repeating "H" pattern is used as the software test program. The program was executed as follows: A. Read and write to the disk drives. B.

  • Page 25: I/O Cable Condition Of Eut And Support Units

    Declaration of Conformity -22- 4.8.3 I/O Cable Condition of EUT and Support Units Description Path Cable Length Cable Type Connector Type AC Power Cord 110V (~240V) to 1.8M Nonshielded, Detachable Plastic Head AC Power Cord Plastic Hood Inlet (3-pin) Keyboard Data Keyboard to PC 1.8M Shielded, Undetachable...

  • Page 26: Appendix I: Description Of Equipment Under Test

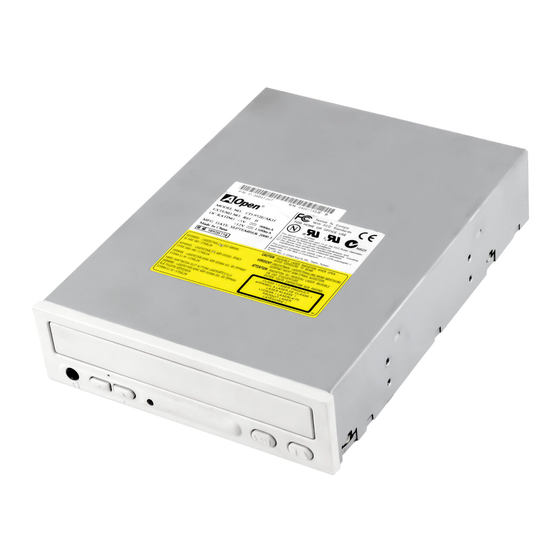

    Declaration of Conformity -23- 4.9 Appendix I: Description of Equipment Under Test Description: CD-ROM Drive Condition: Pre-Production Model: CD-952E/AKH Front Panel: Load/Eject Button Play/Skip Button Power-on/Busy LED indicator Headphone Jack Volume Control Button Emergency Eject Hole Disc Tray Rear Panel:...

  • Page 27: Appendix J: Accuracy Of Measurement

    Declaration of Conformity -24- 4.10 Appendix J: Accuracy of Measurement Uncertainties Contribution Contribution Radiation Conduction 10 m Phase Neutral System Repeatability ? 0.56 ? 0.5 ? 0.20 ? 0.20 Normal (K=2) (assessment from 20 repeat observation) Random ? 1.28 ? 1.14 ? 0.54 ? 0.58 Normal (K=2)

  • Page 28: Appendix K: Photographs Of Eut Configuration Test Set Up

    Declaration of Conformity -25- 4.11 Appendix K: Photographs of EUT Configuration Test Set Up According to ANSI C63.4-1992; or EN55022:1994/A 1:1995/ A2:1997; CISPR 22:1993/A1:1995/A2:1996: The measurement results along with the appropriate limits for comparison shall be presented in tabular form. If an alternate test method is used, the test report must identify that method and justification for its use shall be provided.
  • Page 29 Declaration of Conformity -26- The Front View of Highest Radiated Set-up For EUT The Back View of Highest Radiated Set-up For EUT International Standards Laboratory Report Number: ISL-00A105FB NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013...

  • Page 30: Appendix L: Photographs Of Eut

    Declaration of Conformity -27- 4.12 Appendix L: Photographs of EUT EUT-1 International Standards Laboratory Report Number: ISL-00A105FB NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013...
  • Page 31 Declaration of Conformity -28- EUT-2 International Standards Laboratory Report Number: ISL-00A105FB NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013...
  • Page 32 Declaration of Conformity -29- EUT-3 International Standards Laboratory Report Number: ISL-00A105FB NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013...
  • Page 33 Declaration of Conformity -30- EUT-4 International Standards Laboratory Report Number: ISL-00A105FB NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013...
  • Page 34 Declaration of Conformity -31- EUT-5 International Standards Laboratory Report Number: ISL-00A105FB NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013...
  • Page 35 Declaration of Conformity -32- EUT-6 International Standards Laboratory Report Number: ISL-00A105FB NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013...
  • Page 36 Declaration of Conformity -33- EUT-7 International Standards Laboratory Report Number: ISL-00A105FB NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013...
  • Page 37 Declaration of Conformity -34- EUT-8 International Standards Laboratory Report Number: ISL-00A105FB NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013...
