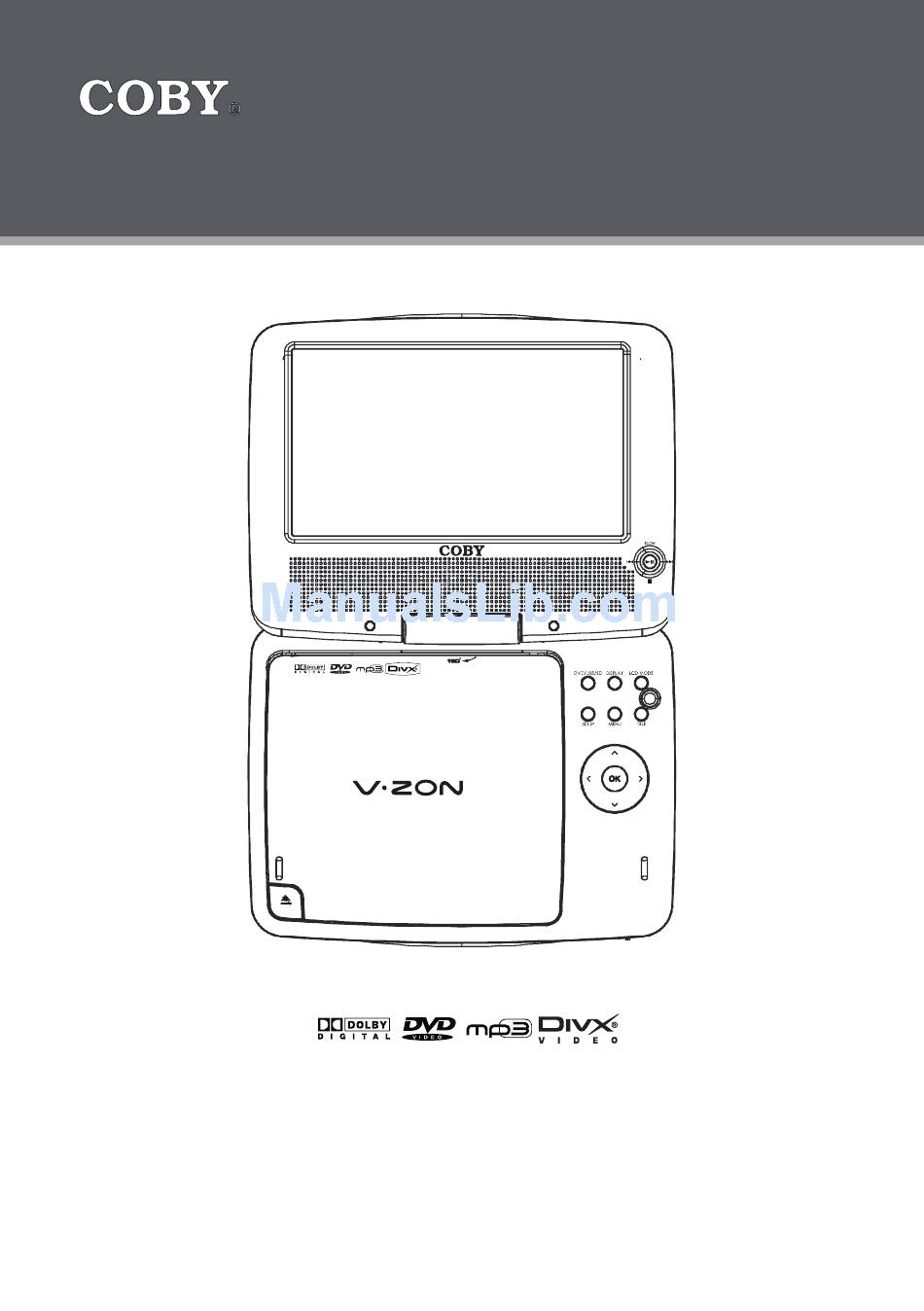

- Page 1 TFDVD7379 7″ Widescreen TFT Portable DVD/CD/MP3 Player with USB and SD Ports Instruction Manual Please read this manual carefully before operation.
-
Page 2: Precautions
Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules. PRECAUTIONS For Customer Use: Enter below the serial number that is located on the bottom of the unit. Retain this information for future reference. Model No. Serial No. TFDVD7379... - Page 3 PRECAUTIONS Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment. For recycling or disposal information about this product, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org.
-
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read Instructions: All the safety and operating instructions should be read before the product is operated. Retain Instructions: The safety and operating instructions should be retained for future refer- ence. Heed Warnings: All warnings on the product and in the operating instructions should be adhered to. - Page 5 IMPORTANT SAFETY INSTRUCTIONS Outdoor Antenna Grounding: If an outside antenna is connected to the product, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANS/NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, ground- ing of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the...
- Page 6 IMPORTANT SAFETY INSTRUCTIONS Replacement Parts: When replacement parts are required, be sure that your service techni- cian has used replacement parts specified by the manufacturer or have the same charac- teristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
-
Page 7: Table Of Contents
TABLE OF CONTENTS PRECAUTIONS ...2 IMPORTANT SAFETY INSTRUCTIONS ...4 TABLE OF CONTENTS ...7 PACKAGE CONTENTS ...9 ABOUT OPTICAL DISCS ...10 Disc Requirements...10 Disc Care and Maintenance ...10 Handling a Disc ...10 Cleaning a Disc ...10 LOCATION OF CONTROLS ... 11 Front View ... - Page 8 Angle ...19 Menu/Title ...19 Menu ...19 Title ...19 Repeat A-B Mode ...19 Repeat Playback Of Chapter/Title/All of a Disc...20 LCD Mode/USB Menu ...20 To access the USB/SD mode ...20 SETUP ...21 Language Setup ...21 Video Setup ...21 Audio Setup ...22 Rating ...22 Misc ...22 SPECIFICATIONS ...23...
-
Page 9: Package Contents
PACKAGE CONTENTS Please make sure the following items are included in the package. If any items are missing, please contact your local dealer. Car Adaptor AC Adapter Menu Title RCA Cable... -
Page 10: About Optical Discs
ABOUT OPTICAL DISCS Disc Requirements This DVD player supports playback of the following discs. Type DVD-Video Discs Audio Compact Discs (CDs) JPEG CDs This unit can play back CD-R and CD-RW discs that contain JPEG picture files. Discs not listed above are not supported by this unit (eg, PC CD-ROM, CD-Extra, CD-G, CD-I, etc.) Disc Care and Maintenance Optical discs (DVDs, CDs) contain high-density compressed data and need proper handling. -
Page 11: Location Of Controls
LOCATION OF CONTROLS OPEN BUTTON POWER ON INDICATOR REMOTE CONTROL BATTERY CHARGE INDICATOR SD SLOT VENTILATION SLOTS Front View POWER SWITCH RIGHT View BACK View TFDVD7309D RECHARGEABLE BATTERY TFT LCD PLAY/PAUSE BUTTON SLOW NEXT/FAST FORWARD STOP PREVIOUS/FAST REVERSE DVD/USB/SD DISPLAY LCD MODE TITLE MENU... -
Page 12: Remote Control
LOCATION OF CONTROLS Remote Control Display/Setup Zoom Subtitle Power Direction Buttons Next Repeat A-B Previous Enter Fast Forward Fast Reverse Repeat All Play/Pause Menu Menu Audio Angle Numeric Buttons LCD Mode/USB/SD Title Title... -
Page 13: Connections
CONNECTIONS Audio & Video Connections AV Out - Output the AV Signal a). Connect the player to TV or the moniter by the RCA cable. b). Slide the AV switch to OUT position. AV IN - Input the AV Signal a). -
Page 14: Power Connection
Power Connections • Connecting to the wall outlet Caution: • Do not connect the power plug to a power outlet other than that which is indicated here and on the label as this may result in the risk of fire or electric shock. -
Page 15: Headphone Connection
CONNECTIONS Headphone Connection Be sure that your unit is at low volume level before connecting the headphones. Increase the volume gradually for your comfortable listening. CAUTION: Hearing experts advise against the constant use of personal stereos played at high volume. Constant high volume use can lead to hearing loss. -
Page 16: Getting Started
Using the Remote Control To load a battery in the remote: Pull in the direction of the arrow. Slide the compartment out. Place the battery in the compartment with the positive side ( + ) facing up. Push the compartment in to close. •... -
Page 17: Power Supply
BASIC OPERATIONS Prepare the connections and power supply. Load a disc. Press the Open button to open the disc compartment lid. Load a disc with the label-side facing up. Close the lid manually. If a single-sided disc is loaded upside-down, the player will display “BAD DISC”. Start playback. -
Page 18: Numeric Keypad
Adjusting the Volume • Turn the Volume Control dial to adjust the volume level up or down. Disc Error Messages The following messages will be displayed on-screen if there is a problem with the format of the loaded disc. • WRONG REGIONAL DISC. -
Page 19: Functions Buttons
FUNCTIONS BUTTONS Display/Setup • Press the DISPLAY button once to show playback information. • Press it twice to enter the player’s setup menu. Enter the Setup menu to adjust the player’s internal settings, please see the SETUP section for more details. Zoom Press ZOOM to change the magnification level of the picture. -
Page 20: Lcd Mode/Usb Menu
FUNCTIONS BUTTONS LCD Mode/USB Menu Press this button to display the LCD menu. Brightness Contrast Color Press up/down direction button to select the desired item and then make adjustment by left/ right direction button. Press up/down direction button to select Flip and then press Enter button to flip the picture. Press up/down direction button to select Mode and then press the Enter button to toggle the screen ratio between 16:9 and 4:3. -
Page 21: Setup
Various features of the player can be adjusted in the SETUP menu. twice to enter the player’s setup menu. 1. Press 2. Press the direction buttons to select the desired item. 3. Press ENTER to confirm. Language Setup Video View Mode Sets the view mode of DivX DVDs. -
Page 22: Audio Setup
Digital Out Channel Output Rating Parental Control Set Password Misc Use Default Settings DivX Registration Screen saver SETUP SETUP Set the digital output mode(off,PCM,RAW) Sets the maturity rating level of the player. The player will not play any discs rated higher than this setting. -
Page 23: Specifications
SPECIFICATIONS SPECIFICATIONS /PAL 868g... -
Page 24: Troubleshooting
If you have a problem with this unit, please read the troubleshooting guide below and check our website at www. cobyusa.com for Frequently Asked Questions (FAQs) and firmware updates. If these resources do not resolve the problem, please contact Technical Support. COBY Electronics Technical Support 150 Knowlton Way Savannah, GA31407... - Page 25 TROUBLESHOOTING • Ensure that the TV and amplifier connections are secure and correct. • Try a different Audio track of the DVD by pressing AUDIO. • Ensure that the MUTE function of the TV, Amplifier, or Player is not engaged. The remote control doesn’t work.
- Page 26 COBY Electronics Corp. 56-65 Rust Street Maspeth, NY 11378 www.cobyusa.com www.ecoby.com...
