Summary of Contents for Coby Kyros MID7005-4G Series

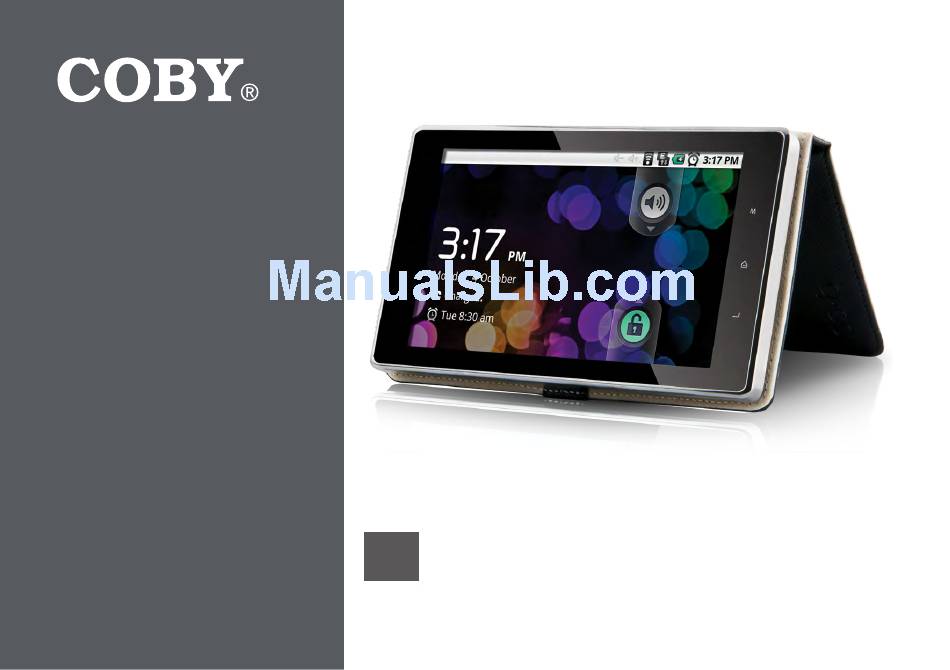

- Page 1 For series / MID7005-4G Coby® Kyros™ Internet Tablet Quick Start Guide ... Page 2 Please read carefully before use...
-
Page 2: Table Of Contents
Table of Contents  Thank You ... 4 Package Contents ... 4 Features... 5 GeTTinG To know The MiD7005 ... 6 Unit at a Glance ... 6 About the Touchscreen ... 9 Protective Film ... 9 Using the Stylus ... 9 Touchscreen Actions ... - Page 3 ConneCTinG To The inTerneT ... 22 Requirements ...22 Connect to a Wi-Fi Network ... 23 BrowSinG The weB ... 25 ManaGinG appliCaTionS ...28 opTional ConneCTionS ... 31 Connecting to a Computer ... 31 Connecting to a Mouse or Keyboard ... 32 Connecting to a TV ...
-
Page 4: Thank You
Thank You  Congratulations on your purchase of a Coby® Kyros™ Internet Tablet. This guide is provided to help you get started quickly with your player; please read it carefully and save it for future reference. For detailed instructions, up-to-date information, and helpful tips, please visit the Coby website at www.cobyusa.com. -
Page 5: Features
features Browse the web, watch videos on YouTube, check e-mail, and more on a generous 7.0” LCD screen Intuitive touchscreen controls powered by Android Connect to the Internet wirelessly with high-speed networking support (Wi-Fi 802.11 b/g) Plays popular video, music, and photo formats ... -
Page 6: Getting To Know The Mid7005
Getting to know the MiD7005 Â unit at a Glance Name Description Touchscreen Display and control screen. Touch controls are displayed on the screen. Tap (or tap and hold) icons with your finger to control the player. Menu soft key Tap to view the option menu. Note: When you tap the Menu key from within an application, you will see the options for that application. - Page 7 Name Description Reset key Press to reset the tablet if it freezes or otherwise behaves abnormally. (Use a paperclip or other small object to gently press this key.) SD/SDHC card Load external SD or SDHC memory slot cards here. Speaker Speaker output is automatically disabled when headphones are con- nected to the player.
- Page 8 Name Description USB host port Connect a mouse, key board, or other low-speed device. 10 HDMI jack Connect to a TV or other display. (mini Type C) 11 USB 2.0 Hi- Connect to a computer to transfer speed port data (e.g., music, videos, photos, files) 12 Power jack Charge and power the MID7005 with (DC input)
-
Page 9: About The Touchscreen
about the Touchscreen Your tablet comes equipped with an easy-to-use touch- screen which allows access to the tablet’s functions. Use your finger tip (or a stylus) to touch the area of the screen where a control icon is displayed. If you touch and hold the screen, it will register as a continuous button press. -
Page 10: Touchscreen Actions
Touchscreen Actions You can control the functions of the tablet by using the touchscreen in combination with the three touch keys located on the bezel. To control the tablet with the touchscreen, use your fingertip or stylus to manipulate icons, buttons, menu items, the onscreen keyboard, and other items displayed on the screen. -
Page 11: About The Orientation Sensor
Double-tap: Quickly tap the screen twice on a webpage or other application screen to zoom (the application must support the double-tap/zoom function). Within the browser, double-tapping a webpage section will cause the browser to zoom and fit that section to the width of the screen. -
Page 12: Charging The Tablet
Charging the Tablet The tablet comes with a built-in rechargeable lithium- polymer battery. Before using the tablet, the battery should be charged fully. The Status Indicator will light green when the bat- tery is charged fully. To charge the battery: Plug one end of the included power adapter into an AC 100-240V outlet. - Page 13 To insert a memory card: Align the memory card with the card slot. The metal contacts of the memory card should face up towards the LCD screen. Slide the card into the spring-loaded slot. Push the card in until it clicks into place. Do not attempt to insert objects other than an SD or SDHC memory card into the card slot.
-
Page 14: Getting Started
Getting Started  Turning the Tablet on and off To turn the tablet on: Power key until the LCD screen Press and hold the turns on. Wait until the Home screen appears; the tablet is now ready for use. To turn the tablet off: Power key until the Device Op- Press and hold the... -
Page 15: Turning The Screen On And Off (Standby)
Turning the Screen On and Off (Standby) When the tablet is on, you can turn off the screen to conserve battery power. Simply press the Power key once to turn the screen off. Press the Power key again to turn the screen back on. To conserve battery power, the screen can be set to turn off automatically when the tablet is not in use (between 15 seconds and 30 min-... -
Page 16: Home Screen At A Glance
If a password has been set, enter the password to finish unlocking the screen. The Screen Unlock password can be set in the Location and security settings menu. Page 16 home Screen at a Glance The home screen is the starting point for all of the features of your tablet. - Page 17 Name Description Notification Shows notification icons such as new messages and alarms; drag the bar down to the bottom of the screen to open the full Notifications panel. The right side of the bar also shows status information such as the time, battery level, and network signal strength.
-
Page 18: About Applications
about applications To open an application, touch the application icon on the home screen or in the Launcher. Launcher screen: The screen shown above is for illusrative pur- poses only. Coby reserves the right to modify and improve the final list of applications avail- able on the tablet. -
Page 19: About Menus
Download and read thousands of e- books. Supports the ePub standard. Browse for, download, and install applica- tions from the AppsLib store. You can also download an install additional applications from AppsLib, the web browser, or other sources. The tablet must be set to allow installation of applcations from non-Market sources. - Page 20 Context menus. Context menus contain items related to a specific item on the screen. To view a context menu, touch and hold an item on the screen. Touch & hold All pictures. Page 20 A context menu will appear. Not all items have a context menu; if a menu does not exist, nothing will happen if you touch and hold the item.
-
Page 21: About Notifications
About Notifications The icons that appear in the Notification bar at the top of the screen alerts you when new messages arrive or alarms or other application events occur. View and respond to the notifications by opening the full Notifications panel. Notification bar down to the bottom of ... -
Page 22: Connecting To The Internet
Connecting to the internet  This tablet can utilize Wi-Fi data networks to connect to the Internet. Wireless Wi-Fi technology can provide Internet access at distances of over 300 feet; however, this distance can be affected by your surrounding environment and Wi-Fi router. requirements In order to connect to the Internet, you will need the following:... -
Page 23: Connect To A Wi-Fi Network
Connect to a wi-fi network The Notification bar displays icons that indicate your tablet’s Wi-Fi status. Notification that an open Wi-Fi network is in range. Connected to a Wi-Fi network (waves indicate connection strength). There are no Wi-Fi networks in range, or the [no icon] Wi-Fi radio is off. - Page 24 2. Select an available Wi-Fi network to connect to: In the same Wi-Fi settings menu above, touch a network in the list. If the network is open, the tablet will prompt you to confim connection to the network. Touch Connect to confirm.
-
Page 25: Browsing The Web
Browsing the web  The Browser application lets you visit webpages and find information on the web. Keep up with the news, your friends, or enjoy video from YouTube™, the world’s most popular video-sharing community. To use Browser, the tablet must be connected to the Internet. - Page 26 Some common Browser actions are described below. To go to a webpage. 1. Touch the Address bar at the top of the Browser screen. The keyboard will open automatically. (If the Address bar is not visible, drag the page down to return to the top of the Browser screen.) 2.
- Page 27 4. If desired, you can modify the name of the bookmark or its location (URL address). Otherwise, touch OK to finish adding the book- mark. To go to a bookmarked webpage. 1. Touch the Book- mark icon to the right of the Address bar.
-
Page 28: Managing Applications
Managing applications  Downloading and installing new applications to your tablet can extend its functionality in many ways. You can download and install applications from the included AppsLib store. To open the AppsLib store: Launcher icon. Touch the AppsLib icon. Touch the When installing an application, it will tell you what func- tions of the phone it needs to control and if it needs... - Page 29 You can learn more about AppsLib, and browse applica- tions by visiting their website at www.appslib.com. Some developers allow you to download and install applications directly from their website. Support for third-party applications is provided by the respective application developer. Coby is not responsible for the behavior of these applications;...
- Page 30 Touch the name of the application you want to uninstall; the Application Info screen will open. Page 30 Uninstall. The tablet will prompt you to Touch confirm. OK to uninstall the application. Touch Managing Applications...
-
Page 31: Optional Connections
optional Connections  Connecting to a Computer Connect the tablet to a computer to transfer files. Connect your tablet to the computer. With the included USB cable: Plug the small end of the cable into the USB 2.0 Hi- speed connector of the tablet. -
Page 32: Connecting To A Mouse Or Keyboard
Mount the storage drive. Touch USB connected (Internal) to mount the tablet’s built-in storage, then touch Mount when prompted to confirm. When mounted, you can copy files to/from your computer to it. If a memory card is installed, touch USB connected (External) to mount the card, then touch Mount when prompted to confirm. -
Page 33: Connecting To A Tv
Connecting to a TV Connect to a TV to enjoy your tablet from the comfort of your living room. Use the included HDMI cable to con- nect the tablet to a TV. Before connecting the tablet to the TV, you will have to adjust a few display settings on the tablet. -
Page 34: Connecting Headphones
Connecting headphones Connect a pair of headphones (or earphones) to the tablet to enjoy media in private. Lower the volume level of the tablet before connecting headphones, and then slowly raise the volume to a comfortable listening level. The headphones must have a 3.5 mm (1/8 in) plug. ... -
Page 35: Setting The System Options
Setting the System options  Open the system settings menu to adjust how the tablet looks and functions. Many applications will have their own settings; refer to the documentation provided by the ap- plication developer to learn more. To open the Settings menu: From the Home screen, tap the Settings to open the Settings menu. -
Page 36: Specifications
Specifications  Please visit www.cobyusa.com for the latest product information. Design, specifications, and manual are subject to change without notice. Processor ARM1176™ (800 MHz) 256 MB DDR2 Storage 4 GB flash built-in SD/SDHC card slot (max. 32GB supported) Display 7.0” touchscreen TFT LCD (800 x 480) Wi-Fi Networking IEEE 802.11 b/g... -
Page 37: Support
Support  If you have a problem with this device, please check our website at www.cobyusa.com for Frequently Asked Questions (FAQ) and product updates. If these resources do not resolve the problem, please contact Technical Support. Coby electronics Technical Support Email techsupport@cobyusa.com www.cobyusa.com... -
Page 38: Safety Notices
Safety notices  The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and servicing instructions in the... -
Page 39: Fcc Statement
fCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. -
Page 40: Important Safety Instructions
important Safety instructions Read Instructions: All the safety and operating instruc- tions should be read before the product is operated. Retain Instructions: The safety and operating instruc- tions should be retained for future reference. Heed Warnings: All warnings on the product and in the operating instructions should be adhered to. - Page 41 the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified techni- cian to restore the product to its normal operation;...
- Page 42 Coby electronics Corp. 1991 Marcus Ave, Suite 301 Lake Success, NY 11042 www.cobyusa.com www.ecoby.com MID7005-4G Coby is a registered trademark of Coby Electronics Corporation. Printed in China. ESG v1.01...
