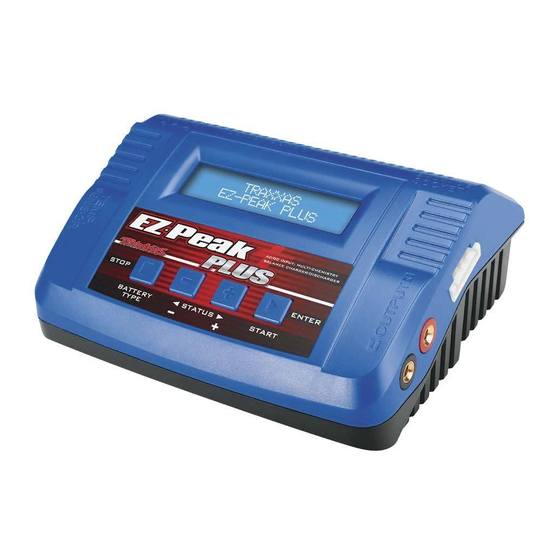

Traxxas EZ-Peak PLUS Owner's Manual

Hide thumbs Also See for EZ-Peak PLUS:

Advertisement

Quick Links

Download this manual
™
80 Watts
80 Watts
owner
s manual
'

Advertisement

loading

Related Manuals for Traxxas EZ-Peak PLUS

Summary of Contents for Traxxas EZ-Peak PLUS

  • Page 1 ™ 80 Watts 80 Watts owner s manual ’...
  • Page 2 • If any battery or cell is damaged in any way, do NOT charge, discharge, or use the battery. • NEVER leave batteries unattended while charging. The buyer assumes all risk associated with using this product. Traxxas, its affiliates, manufacturers, distributors, and retail partners cannot control the use, application, charging or TERMS OF USE - installation of this product and shall not be held responsible for any accident, injury to persons, or damage to property resulting from the use of this product.
  • Page 3 Traxxas Lifetime Electronics Warranty when not in use. After the expiration date of the warranty period, Traxxas will repair the EZ-Peak Plus for a flat • Do NOT operate the charger inside of an automobile. rate of $60.00 U.S. plus $5.00 U.S. for shipping and handling. Other mechanical repairs will be •...
  • Page 4 E-mail: support@Traxxas.com Entire contents ©2011 Traxxas. Other brand names and marks are the property of their respective holders and are used only for purposes of identification. No part of this manual may be reproduced or distributed in print or electronic media without the express written permission of Traxxas.
  • Page 5 Included with the EZ-Peak Plus Charger AC power cord B. Balance adapter board and balance harness (JST-XH style) C. Battery harness for Molex ® plugs D. Battery harness for Traxxas High Current Connector E. Battery harness for receiver packs EZ-PEAK PLUS • 5...

  • Page 6: Program-Select

    Choose “Aut “if you prefer to let Support at 1-888 -TRAXXAS (1-888-872-9927) Outside the US the EZ-Peak Plus automatically determine the charge amperage up +1-972-265-8000 or e-mail support@traxxas.com. Only charge and to the current limit value.
  • Page 7 5. Press and hold the ENTER/START key. PROGRAM-SELECT R--2SER--S--2SER The charger will chime and display 1. Power up the EZ-Peak Plus. Press -------L i Po0BATT CONF I RM ( ENTER ) “BATTERY CHECK WAIT...” then show the STOP/BATTERY TYPE key until you reach “PROGRAM SELECT/LiPo...
  • Page 8 50-60% capacity if your Lithium batteries will not the balance adapter if connected, but it is not necessary. Standard be used within 30 days or more. The EZ-Peak Plus makes it easy to store Charge uses the Constant Current/Constant voltage charging method your packs properly with the STORAGE mode, which will automatically to deliver maximum capacity.
  • Page 9 Selecting a Lithium Charge Mode 5. Press and hold the ENTER/START key. • If you selected a specific number of cells, the EZ-Peak Plus will 1. After selecting the correct lithium battery type, press the Stop/ display “BATTERY CHECK WAIT...” then show “R: #SER S: #SER to...
  • Page 10 DISCHARGING WITH THE EZ-PEAK PLUS The EZ-Peak Plus includes a built-in discharger that can be set for 0.1-2.0 • In LiPo, LiIon, and LiFe mode, the L i Po-D I SCHARGE-- amps. The EZ-Peak Plus will discharge the battery until it reaches a user- cutoff voltage is pre-set according 2 .
  • Page 11 (if discharging) or being stored in the battery (if charging). “D>C” will also display to indicate the status of the cycle. “D” will flash while the EZ-Peak Plus is discharging, and “C” will flash while it is charging.

  • Page 12: Advanced Settings

    “delta peak”). The amount of voltage change To prevent the charge or discharge cycle from ending prematurely the EZ-Peak Plus must detect to indicate a full charge can be changed due to the charger not detecting the correct number of cells, you may...
  • Page 13 Safety Timer The EZ-Peak Plus features a built-in timer that starts as soon as a battery To Set the Capacity Cut-Off, follow these steps: begins charging and will automatically stop charging if a programmed 1.
  • Page 14 Key Beep/Buzzer Input Power Low Cut-Off The EZ-Peak Plus emits a beep each time a button is pressed and When using the EZ-Peak Plus with a DC battery, the Input Power Cut- chimes when a charge/discharge cycle is complete. Both of these...
  • Page 15 2-24 volts. This type of battery cannot be fast 1. Press the STOP/BATTERY TYPE key to ---------Pb-BATT charged, and the use of the EZ-Peak Plus’ Capacity Cutoff feature is select PROGRAM SELECT/Pb BATT recommended to prevent over-charging. Consult your battery’s label to 2.

  • Page 16: Saving And Loading Data

    (CHARGE). Continue to the next step if you wish to program the data for a NiMH or NiCd battery, the EZ-Peak Plus allows you to set the CHARGE parameters, or press the + or – keys to select Balance, Fast parameters for Charge, Discharge, and Cycle modes.
  • Page 17 LOAD DATA. 2. Press the ENTER/START key. The LOAD- [ 0 1 ] ---L i Po EZ-Peak Plus will display LOAD [1] 1 1 . 1 V----5000mAh for Profile 1. 3. Use the STATUS/+/- keys to select LOAD- [ 02 ] ---N i MH the profile you wish to load.

  • Page 18: Warnings And Error Messages

    The EZ-Peak Plus features advanced circuitry with built-in protections Breakdown BREAK DOWN to safeguard the charger and your batteries. If the EZ-Peak Plus signals Charger malfunction. Contact Traxxas an error or warning, stop using the charger until the problem has Customer Support at 1-888-TRAXXAS.
  • Page 19 NOTES EZ-PEAK PLUS • 19...
  • Page 20 ™ owner s manual ’ 1 100 Klein Road, Plano Texas 75074 1-888-TRAXXAS 111106 SP11301 Part #2933, #2934 Printed in China...
