Summary of Contents for Traxxas EZ-Peak PLUS 4S
- Page 1 NiMH / LiPo Fast Charger NiMH / LiPo Fast Charger owner s manual ’...
- Page 2 • Never charge LiPo battery packs in series or parallel. (LiPo) batteries: Charging packs in series or parallel may result in Lithium Polymer (LiPo) batteries are significantly improper charger cell recognition and an improper more volatile than other rechargeable batteries. charging rate that may lead to overcharging, cell • ONLY use a Lithium Polymer (LiPo) balance charger imbalance, cell damage, and fire. with a balance adapter port to charge LiPo batteries. • ALWAYS inspect your LiPo batteries carefully before Never use NiMH or NiCad-type chargers or charge charging. Look for any loose leads or connectors, modes to charge LiPo batteries. DO NOT charge with damaged wire insulation, damaged cell packaging, a NiMH-only charger. The use of a NiMH or NiCad impact damage, fluid leaks, swelling (a sign of charger or charge mode will damage the batteries internal damage), cell deformity, missing labels, or and may cause fire and personal injury. any other damage or irregularity. 2 • EZ-PEAK PLUS 4s...
-
Page 3: Fire Hazard
• Charge only NiMH packs or 2s–4s LiPo battery packs. disposal instructions included with your battery to properly and safely dispose of the battery. • This charger may be used by persons (including children over 14 years old) with reduced physical, • Do not store or charge LiPo batteries with or sensory or mental capabilities, or lack of experience around other batteries or battery packs of any type, and knowledge, if they have been given supervision including other LiPos. or instruction concerning use of the charger in a • Store and transport your LiPo batteries in a cool safe way and understand the hazards involved. Do dry place. Do not store in direct sunlight. Do not not allow children to play with the charger. Children allow the storage temperature to exceed 140°F or require adult supervision while using, cleaning, or 60°C such as in the trunk of a car or the cells may be maintaining this charger. damaged and create a fire risk. • DO NOT let any exposed battery contacts or wires • Do NOT disassemble LiPo batteries or cells. touch each other. This will cause the battery to • Do NOT attempt to build your own LiPo battery short circuit and create the risk of fire. pack from loose cells. • While charging, ALWAYS place the battery in a fire retardant/fire proof container and on a non- flammable surface such as concrete. EZ-PEAK PLUS 4s • 3... - Page 4 • REMOVE flammable items and combustible ignition. materials from the charging area. • If a battery gets hot to the touch during the charging • DO NOT leave the charger and battery unattended process, disconnect the battery from the charger and while charging, discharging, or any time that the discontinue charging immediately. charger is ON with a battery connected. If there • ALWAYS unplug the charger and disconnect the are any signs of a malfunction or in the event of an battery when not in use. emergency, unplug the charger from the power • Never attempt to charge more batteries than the source and disconnect the battery from the charger. charger was designed to charge. • DO NOT operate the charger in a cluttered space, or • DO NOT disassemble the charger. place objects on top of the charger or battery. • REMOVE the battery from your model or device • If any battery or battery cell is damaged in any way, before charging. DO NOT charge, discharge, or use the battery. • Keep a Class D fire extinguisher nearby in case of fire. 4 • EZ-PEAK PLUS 4s...
- Page 5 • DO NOT use the charger outdoors or expose it to damaged or frayed wires, loose connections, water or moisture. Water entering the charger will fluid leaks, corrosion, plugged vents, swelling, increase the risk of electric shock. cell deformity, impact damage, melted • ALWAYS store battery packs safely out of the reach components, or any other signs of damage. of children and pets. - B attery packs that have been altered from original • If the charger power cord is damaged, it must be manufacturer configuration. replaced by Traxxas in order to avoid a hazard. - N on-rechargeable batteries (explosion hazard). • DO NOT charge batteries under ANY of the - Batteries that have missing or unreadable labels, following conditions: preventing you from properly identifying the - B atteries that are hot to the touch. battery type and specifications. - B atteries that are not expressly stated by the manufacturer to be suitable to accept the power output (voltage and amperage) the charger delivers during the charging process. EZ-PEAK PLUS 4s • 5...
-
Page 6: Explanation Of Symbols
Explanation of Symbols Symbol Explanation Symbol Explanation General warning for personal safety This product includes a replaceable fuse. Fire hazard warning. This product presents a This product is double insulated for safe use. possible fire hazard if not used correctly. FCC—Tested to Federal Communications This product is designed to be used indoors Commission requirements only. CE marking indicates product conformance C-Tick—Regulatory Compliance Mark for with the applicable European Union (EU) Australia and New Zealand Directives. For EU WEEE compliance, this product California Energy Commission Compliant should not be disposed of in household waste containers. Dispose of the product by using a designated collection point for the recycling of waste electrical and electronic equipment. 6 • EZ-PEAK PLUS 4s... - Page 7 Traxxas iD shown) WARNING: FIRE HAZARD! If you have a battery that is labeled as or appears to be a LiPo but it does not have a balance connector, do not attempt to charge the battery. EZ-PEAK PLUS 4s • 7...
- Page 8 WARNING: FIRE HAZARD! wires are separate. For Traxxas iD batteries, the Do not attempt to charge any battery that balance wires are integrated into the High-Current has a missing or unreadable label that Connector (see Know your connectors on page 6). prevents you from properly identifying the battery type and specifications. 8 • EZ-PEAK PLUS 4s...
-

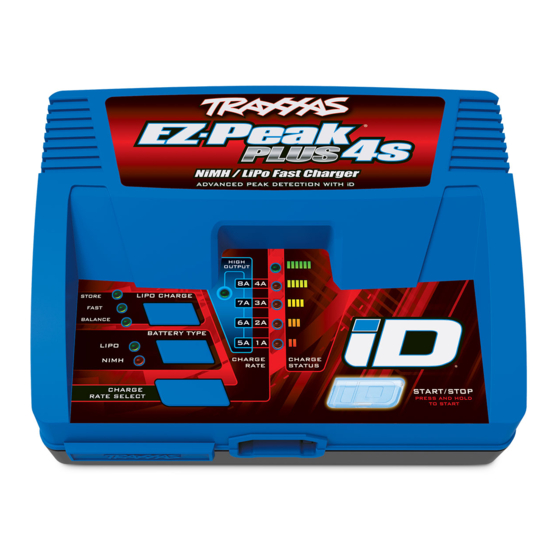

Page 9: Know Your Charger
B. LiPo Charge Mode Select G. Charge Status LED C. Battery Type Select H. Charge Progress/Charge Rate LEDs D. Charge Rate Select I. High Output LED (see page 16) E. Charger Output Port (Traxxas High-Current Connector) EZ-PEAK PLUS 4s • 9... -
Page 10: Charger Specifications
Traxxas iD Battery Type Capacity EZ-Peak Plus ® 4s Maximum Charge Rate 1200-1800mAh 3000-4200mAh 6-cell NiMH 4300-5000mAh 3000-4200mAh 7-cell NiMH 4300-5000mAh 3000-4200mAh 8-cell NiMH 4300-5000mAh 2-cell LiPo, 7.4v 4000-10000mAh 3-cell LiPo,11.1v 4500-8400mAh 6.7A 4-cell LiPo, 14.8v 3400-6700mAh 10 • EZ-PEAK PLUS 4s... - Page 11 1. Plug the charger into an AC wall outlet, and then connect the NiMH battery as shown The charger will recognize the iD battery and show you the charge settings. NiMH with iD 2. Verify the charge settings Confirm that the red NiMH LED is lit for the connected NiMH battery. The Start button will light blue indicating Battery Type Start that an iD battery is connected and ready to charge. EZ-PEAK PLUS 4s • 11...
- Page 12 3. Charging Charging (flashing) Press and hold the Start button for 2 seconds. The charger will play a tone and the green progress LED will flash, indicating that charging has started. Charge Cycle Progress The red charge progress LEDs will light as the battery charges. Press the Start button at any time to stop charging. The charger will play a tone, indicating that charging has been canceled. 4. Charge cycle complete Charging Complete (solid) The charger will play a “charge complete” tone to indicate charging is complete. The alert tone will play 3 times and stop. The EZ-Peak Plus 4s will trickle charge your NiMH battery at a minimum of 100mA for 12 hours after the charge cycle is complete. 12 • EZ-PEAK PLUS 4s...
- Page 13 1. Plug the charger into an AC wall outlet, and then connect the LiPo battery as shown The charger will recognize the iD battery and show you the charge settings. LiPo with iD 2. Verify the charge settings Confirm that the green LiPo LED is lit for the connected LiPo battery. The Start button will light blue indicating that an Charge Mode iD battery is connected and Battery Type (the default is ready to charge. Balance) Start EZ-PEAK PLUS 4s • 13...
- Page 14 See additional warnings and precautions in the beginning of this manual. Balance Charge (recommended) Always balance charge your LiPo batteries for maximum capacity, voltage, and battery life. This is the default setting for Traxxas iD batteries. The EZ-Peak Plus 4s performs a balance charge quickly and efficiently. 14 • EZ-PEAK PLUS 4s...
- Page 15 4. Charging Charging (flashing) Press and hold the Start button for 2 seconds. The charger will play a tone and the green progress LED will flash, indicating that charging has started. Charge Cycle Progress The red charge progress LEDs will light as the battery charges. Press the Start button at any time to stop charging. The charger will play a tone, indicating that charging has been canceled. 5. Charge cycle complete Charging Complete (solid) The charger will play a “charge complete” tone to indicate charging is complete. The alert tone will play 3 times and stop. EZ-PEAK PLUS 4s • 15...
-
Page 16: Advanced Mode
LIPO BATTERIES WITH MISSING OR DAMAGED BALANCE CONNECTORS. IF YOU DO NOT UNDERSTAND THE TERMINOLOGY USED IN THESE INSTRUCTIONS, KNOW WHAT TYPE OF BATTERIES YOU HAVE, OR WHAT THIS WARNING MEANS, DO NOT USE ADVANCED MODE; INSTEAD, CONTACT TRAXXAS FOR MORE INFORMATION. Advanced Mode offers full manual control for users that have an in-depth knowledge of battery types (chemistry) and battery charging techniques. Advanced Mode also allows you to adjust the charge rate (current) for Traxxas iD batteries. If you do not understand the differences in various battery types or what... - Page 17 Make sure you do not exceed the maximum charge rate recommended by your battery manufacturer. If you are unsure about the maximum charge rate for your battery, then do not attempt to charge the battery in Advanced Mode. Contact Traxxas or your local hobby dealer for more information. 1. Enter Advanced Mode: 2.
- Page 18 1. Connect the main connector and the balance connector to the charger When a battery is connected for charging that does not have Traxxas iD, the red charge rate/progress LEDs will sweep in a scanning motion. Advanced Mode must be used for manual battery type and charge rate selection.
- Page 19 DO NOT attempt to charge LiPo batteries with missing or damaged balance connectors. The EZ-Peak Plus 4s will default to LiPo mode charging when a balance plug connection is detected. If you fail to plug in the balance connector, or attempt to charge a LiPo battery with a damaged or missing balance connector, you create the risk of accidentally selecting to charge a LiPo battery in NiMH mode resulting in fire and possible injury to yourself and others.
- Page 20 3a. Charging a NiMH battery Select NiMH Select Charge Battery Type (Red) Rate Press and hold the Start button for 2 seconds. The charger will play a tone, indicating that charging has started. Press once to stop. The charger will play a tone, indicating that charging has been canceled. The charge progress LEDs will light as the battery charges. Charge cycle progresses as shown in steps 3 and 4 for iD NiMH charging. 20 • EZ-PEAK PLUS 4s...
- Page 21 (green LEDs). If the charger displays the battery type error code, then the balance connector is either disconnected or damaged. Do not attempt to charge this LiPo Select Charge Select Charge battery. Contact Traxxas for more information. Mode Rate Press and hold the Start button for 2 seconds. The charger will play a tone, indicating that charging has started. Press once to stop. The charger will play a tone, indicating that charging has been canceled. The charge progress LEDs will light as the battery charges.
-
Page 22: Charger Error Codes
Verify that the balance connector is plugged into the charger (if charging a non-iD type does not match the LiPo battery) or the Traxxas High Current Connector is fully plugged into the charger charger configuration. (if charging an iD LiPo battery). -
Page 23: Warranty Information
NOT been subjected to abuse, misuse, or neglect. Products damaged by intentional abuse, misuse, or neglect may be subject to additional charges. Traxxas liability, in no case, shall be greater than the actual purchase price of this product. For replacement, product must be returned in brand new condition, with packaging and itemized sales receipt. - Page 24 FCC Compliance This device contains a module that complies with the limits for a Class B digital device as described in part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Canada, Innovation, Science and Economic Development (ISED) CAN ICES-3 (B) This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. 24 • EZ-PEAK PLUS 4s...
- Page 25 This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body or bystanders and must not be co-located or operating in conjunction with any other antenna or transmitter. Declaration of Conformity for RED Directive Traxxas LP hereby declares that this product is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available online at: https://traxxas.com/compliance June 8, 2021 Signed: ___________________________ Date: ____________________...
- Page 26 NOTES: 26 • EZ-PEAK PLUS 4s...
- Page 27 NOTES: EZ-PEAK PLUS 4s • 27...
- Page 28 Entire contents ©2021 Traxxas. All rights reserved. No part of this manual may be reproduced or distributed in print or electronic media without the express written permission of Traxxas. Specifications are subject to change without notice. 210608 KC2875-R01-EN Part #2981...
