Summary of Contents for Nvidia SHIELD

  • Page 1 SHIELD Remote...

  • Page 2: Table Of Contents

    About Your SHIELD remote ......................1 using your shield remote ......................... 2 Shield Remote ..........................2 How to Connect Your remote to a shield device ................4 How to Connect Your remote ..................... 4 How to Connect Your remote ..................... 4 How to Reconnect the remote ......................

  • Page 3: About Your Shield Remote

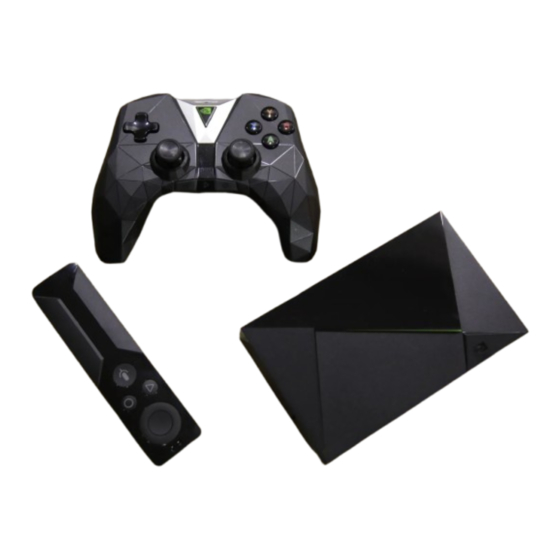

    ABOUT YOUR SHIELD REMOTE Your NVIDIA® SHIELD™ remote makes it easy to access all of your favorite movies, music, and TV on your SHIELD device, with familiar navigation buttons and integrated voice search capability. Your remote includes the following features: Navigation D-pad and center Select button •...

  • Page 4: Using Your Shield Remote

    USING YOUR SHIELD REMOTE The SHIELD remote box includes one SHIELD remote, one USB charging cable, one Support Guide, and one Quick Start Guide. SHIELD REMOTE Integrated microphone D-pad...
  • Page 5 SHIELD Remote Select Button Back button Home button Voice search button with indicator light Volume touch control...

  • Page 6: How To Connect Your Remote Toa Shield Device

    HOW TO CONNECT YOUR REMOTE TO A SHIELD DEVICE The first time you use your SHIELD remote, you must establish a connection with a SHIELD device. This connection is saved for future use. HOW TO CONNECT YOUR REMOTE NOTE If you connect the remote to another SHIELD device, the previous connection is removed.

  • Page 7: How To Reconnect The Remote

    SHIELD Remote HOW TO RECONNECT THE REMOTE Your remote automatically reconnects when the SHIELD device and the remote are turned on and in range. Turn on your SHIELD device. Turn on the remote by picking it up. NOTE You do not need to turn off your remote. It will sleep automatically when inactive.

  • Page 8: How To Charge Your Remote

    Micro-USB port USB port. Connect the micro-USB end of the charging cable. NOTE A USB charging cable is provided in the box with your SHIELD remote. However, any Micro-USB charging cable can be used to charge the remote. HOW TO...

  • Page 9: Using Your Remote

    * If you TV supports HDMI-CEC, waking your SHIELD device will also turn on your TV and change the TV input to your SHIELD device. If your SHIELD device was in a powered off state, SHIELD remote cannot wake the device.
  • Page 10 ** Your TV or A/V receiver must support HDMI-CEC system volume control in order to the control volume level of those devices. Otherwise, the volume control will mute and unmute only. If headphones are plugged in, SHIELD remote can control the volume level of the headphones.

  • Page 11: Using Headphones With Your Remote

    USING HEADPHONES WITH YOUR REMOTE Your remote supports headphones for private listening. Plug the headphones into the 3.5-mm jack on the back of the remote to route the TV audio to your headphones. To route the audio back to the TV, unplug the headphones. Headphone jack NOTE Not all 3.5-mm audio jacks are made to the same standard.

  • Page 12: Compliance

    NVIDIA accessories supplied or designated for this product. During testing, the SHIELD Remote was placed in positions that simulate use against the body. The use of any other accessories may not ensure compliance...
  • Page 13 RF Radiation Exposure Statement: SHIELD Remote has been tested and complies with IC RSS 102 RF radiation exposure limits set forth for an uncontrolled environment when used with the NVIDIA accessories supplied or designated for this product. During testing, the SHIELD Remote was placed in positions that simulate use against the body.
  • Page 14 RSS 102 pour un environement non controle lors d’utilisation avec les accessoires fournis or recommendes par NVIDIA. Pendant les tests, la SHIELD Remote a ete positionnee afin de simule la presence du corps humain. L’utilisation d’accessoires autres que ceux recommendes par NVIDIA ne guarantis pas la compatibilite avec les normes d’emission RF de la IC RSS 102.
