- Page 1 Narrow pitch Connectors onnector Operation manual ACCTF29E-1 2017.08 industrial.panasonic.com/ac/e/...
-
Page 2: Table Of Contents
Operation manual for Narrow pitch connectors P5K Contents 01.Introduction ..................... 2 02.Precautions for equipment design ............3 03.Precautions during mounting-to-reflow ..........13 04.Precautions for mating ................19 05.Precautions for facilitate elimination of defective products at inspection process ............. 20 Parts that require special confirmation are bold and underlined. -
Page 3: Introduction

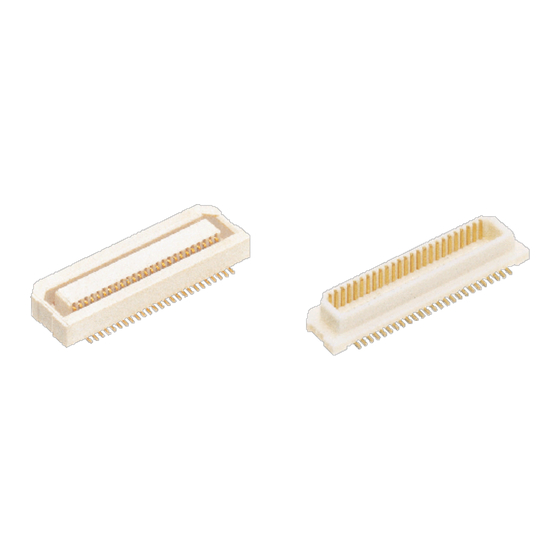

Operation manual for Narrow pitch connectors P5K 01. Introduction The P5K narrow-pitch connector has a terminal pitch of 0.5 mm, and stacking height of 3.0 and 3.5mm. This connector is designed for parts requiring space reduction. Select models best suited to the situation and conditions of use. Read this document before designing the equipment and starting production. -
Page 4: Precautions For Equipment Design
Otherwise, misaligned connector positions may cause mating failure or product breakage. Panasonic corporation does not guarantee the failures caused by using the multiple connectors. (2)Solid board is tend to warp to vertical direction against mill direction of production process. - Page 5 Operation manual for Narrow pitch connectors P5K 2) Position of connectors during mounting When using a multiple-pin connector, it is preferable that the connector be placed in a position that does not require swing motion of the mounter during pickup and mounting.
- Page 6 Operation manual for Narrow pitch connectors P5K (2) When the board fixation is not enough as the lower chart , the connector is affected by the load of the inertial force and might be damaged. Please consider as follows. Sub-board...
- Page 7 Operation manual for Narrow pitch connectors P5K 02-2. Precautions for printed circuit design 1) Circuit design (1)To obtain a good front fillet and back fillet, please review the foot pattern dimensions recommended in the specifications or catalog for terminal foot pattern design.
- Page 8 Operation manual for Narrow pitch connectors P5K 2) Flexible PC board design (1) Positions of connectors on the FPC FPC consists of polyimide, copper foil and bond layer. Each contraction rate of those material by heat is different so that warp of FPC may occurred and may cause poor soldering.
- Page 9 Operation manual for Narrow pitch connectors P5K (2) Flexible PC board specifications Control the thicknesses of the coverlay and adhesive to prevent poor soldering. There is a clearance of approx. 0.05 mm between the bottom surface of the terminal and the mold casing. Therefore, minimize the coverlay thickness, otherwise poor soldering may be result.
- Page 10 Operation manual for Narrow pitch connectors P5K 3) Support plate design Select a support plate with an appropriate thickness and hardness to prevent solder or the pattern from being removed during unmating of the connector. (1) It is recommended to use glass-reinforced epoxy plates, which can easily provide adequate hardness.
- Page 11 Operation manual for Narrow pitch connectors P5K 4) Metal Mask Design Since this connector is designed with low-profile, please pay attention to the following precautions for reflow soldering. (1) In addition to the amount of applied solder, the reflow-soldering environment and temperature profile affect the finish quality after reflow soldering.
- Page 12 Operation manual for Narrow pitch connectors P5K Recommended specifications of mounting pattern on PC board and window size of metal masking Please refer to the latest product specifications when designing your product. Product: Narrow pitch connector P5K Socket Recommended mounting pattern on PC board (Top view)
- Page 13 Operation manual for Narrow pitch connectors P5K Recommended specifications of mounting pattern on PC board and window size of metal masking Product: Narrow pitch connector P5K Header Recommended mounting pattern on PC board (Top view) Recommended pattern on metal masking window area Recommended pattern on metal masking window area Thickness of metalmasking:120μm...
-
Page 14: Precautions During Mounting-To-Reflow
Operation manual for Narrow pitch connectors P5K 03. Precautions during mounting –to- reflow 03-1. Mounters We recommend that you select a multi-function mounter to mount connectors. Even if you select a high-speed mounter, please use a multi-function head and load control. - Page 15 Operation manual for Narrow pitch connectors P5K 03-3. Precautions for reflow soldering (1) Check the actual temperature profile at the connector mounting position and check that it matches the recommended temperature profile. Temperature Time When the resin part of the connector is melted or deformed during reflow...
- Page 16 Operation manual for Narrow pitch connectors P5K 03-4. Manual soldering and Solder rework This connector has been miniaturized in order to achieve a narrow pitch and an ultra- low profile. Therefore, take great care when carrying out manual soldering or rework.
- Page 17 Operation manual for Narrow pitch connectors P5K 03-5. Detailed precautions for solder rework (1) Flux-applying tools In order to prevent solder from rising to the contact section, the use of a brush pen type flux applicator that allows an appropriate amount of solder to be applied is recommended.
- Page 18 Operation manual for Narrow pitch connectors P5K 03-6. Detailed precautions for manual soldering (1) General precautions - When applying flux, apply it thinly on each foot pattern using a brush pen as shown on the previous page. (Place the connector at a predetermined position after applying flux.)
- Page 19 Operation manual for Narrow pitch connectors P5K 03-7. Cleaning flux from PC board Cleaning this product is not needed. If cleaning it, pay attention to the following points to prevent the negative effect to the product. (1) To increase the cleanliness of the cleaning fluid and cleaning operations, prepare equipment for cleaning process beginning with boil cleaning, ultrasonic cleaning, and then vapor cleaning.
-
Page 20: Precautions For Mating
Operation manual for Narrow pitch connectors P5K 04. Precautions for mating 04-1. Precautions for mating This connector features a compact and thin design. Although the connector is designed to be easily handled, follow the rules below to avoid damage to the resin part and buckling or deformation of the contact. -
Page 21: Precautions For Facilitate Elimination Of Defective
Operation manual for Narrow pitch connectors P5K 05. Precautions for facilitate elimination of defective products at inspection process (1) Each time you start work, please proceed with inspection after sufficiently verifying that there is no abnormality in the contacts of the inspection jig connector or in the molded component. - Page 22 Operation manual for Narrow pitch connectors P5K Amendment history Manual No. Date Changes ACCTF29E First edition July, 2016 ACCTF29E-1 Revised(P.3） Augst, 2018 Panasonic Corporation © ACCTF29E-1 201708 industrial.panasonic.com/ac/e/ - 21 - Panasonic Corporation 2017...
