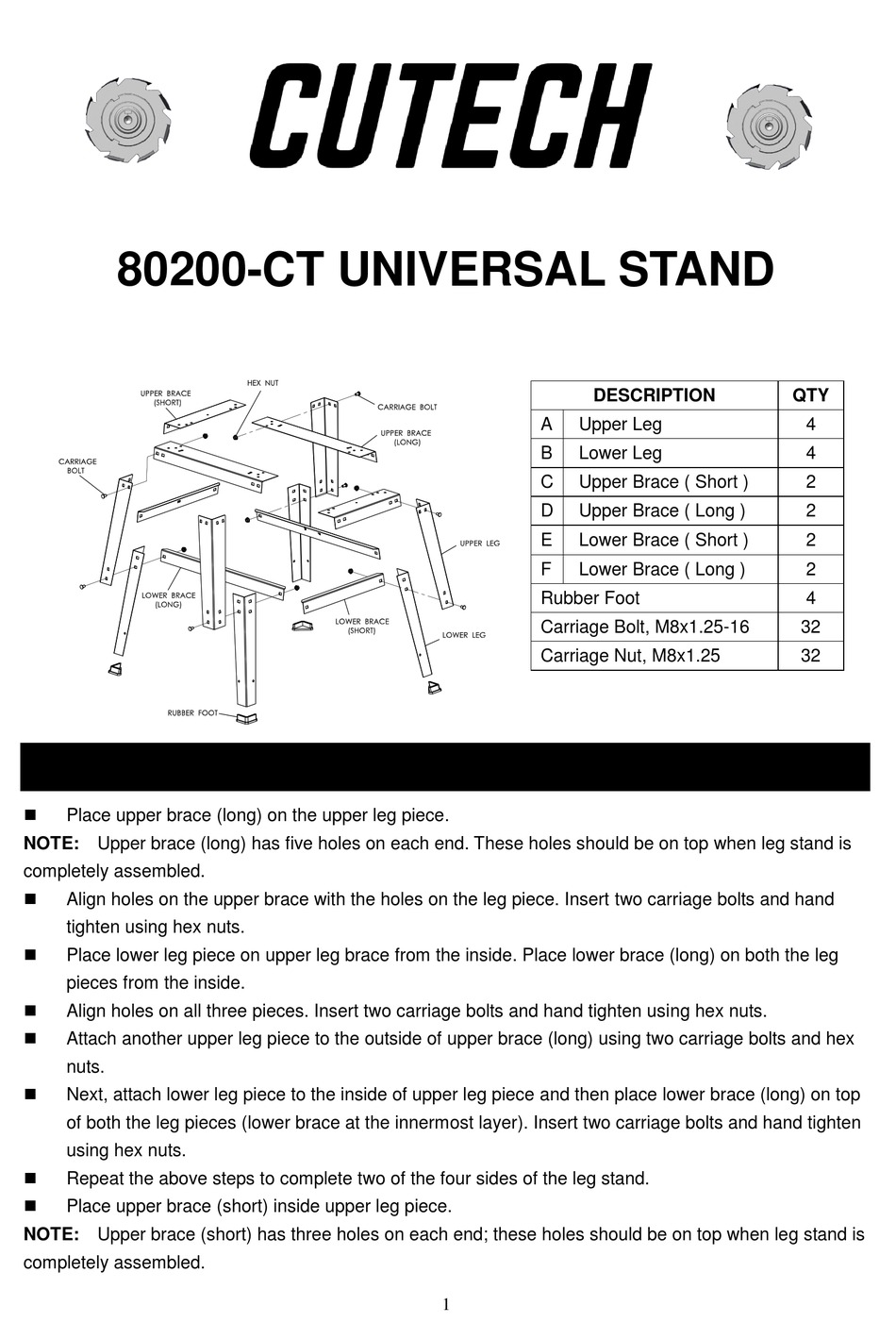

Cutech 80200-CT Quick Start Manual

80200-CT UNIVERSAL STAND

Place upper brace (long) on the upper leg piece.
NOTE: Upper brace (long) has five holes on each end. These holes should be on top when leg stand is
completely assembled.

Align holes on the upper brace with the holes on the leg piece. Insert two carriage bolts and hand
tighten using hex nuts.

Place lower leg piece on upper leg brace from the inside. Place lower brace (long) on both the leg
pieces from the inside.

Align holes on all three pieces. Insert two carriage bolts and hand tighten using hex nuts.

Attach another upper leg piece to the outside of upper brace (long) using two carriage bolts and hex
nuts.

Next, attach lower leg piece to the inside of upper leg piece and then place lower brace (long) on top
of both the leg pieces (lower brace at the innermost layer). Insert two carriage bolts and hand tighten
using hex nuts.

Repeat the above steps to complete two of the four sides of the leg stand.

Place upper brace (short) inside upper leg piece.
NOTE: Upper brace (short) has three holes on each end; these holes should be on top when leg stand is
completely assembled.
ASSEMBLY
1
DESCRIPTION
A Upper Leg
B Lower Leg
C Upper Brace ( Short )
D Upper Brace ( Long )
E Lower Brace ( Short )
F Lower Brace ( Long )
Rubber Foot
Carriage Bolt, M8x1.25-16
Carriage Nut, M8x1.25
QTY
4
4
2
2
2
2
4
32
32
