GE Profile JB905 Dimension Manual

TM

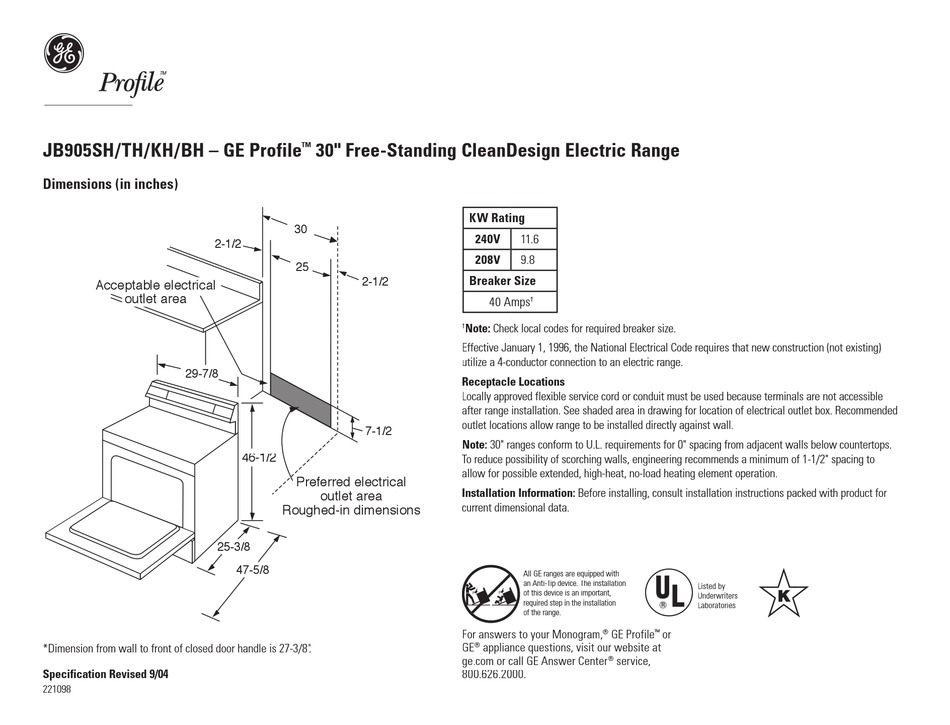

JB905SH/TH/KH/BH – GE Profile
Electrical outlet locat ABC.eps
Dimensions (in inches)
2-1/2
Acceptable electrical
outlet area
29-7/8
*Dimension from wall to front of closed door handle is 27-3/8" .
Specification Revised 9/04
221098
30" Free-Standing CleanDesign Electric Range
™
30
25
2-1/2
7-1/2
46-1/2
46-7/8
Preferred electrical
outlet area
Roughed-in dimensions
25-3/8
47-5/8
KW Rating
240V 11.6
208V 9.8
Breaker Size
40 Amps
†
Note: Check local codes for required breaker size.
†
Effective January 1, 1996, the National Electrical Code requires that new construction (not existing)
utilize a 4-conductor connection to an electric range.
Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals are not accessible
after range installation. See shaded area in drawing for location of electrical outlet box. Recommended
outlet locations allow range to be installed directly against wall.
Note: 30" ranges conform to U.L. requirements for 0" spacing from adjacent walls below countertops.
To reduce possibility of scorching walls, engineering recommends a minimum of 1-1/2" spacing to
allow for possible extended, high-heat, no-load heating element operation.
Installation Information: Before installing, consult installation instructions packed with product for
current dimensional data.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center service,
®
800.626.2000.
Listed by
Underwriters
Laboratories
R
or
™
